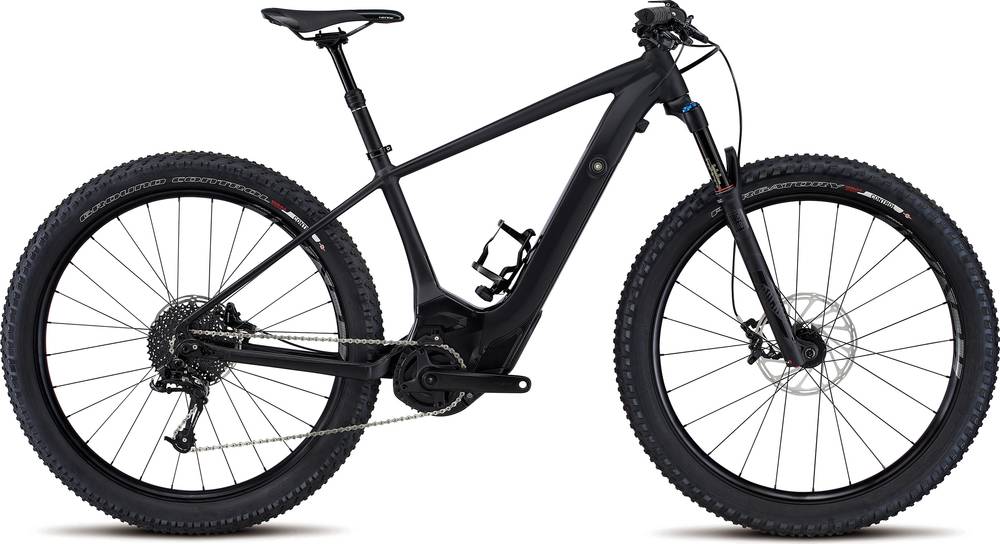

Specialized Turbo Levo Hardtail Comp 6Fattie 2017
2017 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Reba
-
Groupset GX -
Suspension Hardtail -
Motor Specialized 250W mid-drive -
Battery Custom LEVO battery, 460Wh, 40x3.2Ah, ANT+/Bluetooth connectivity, IP 67 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized M5 Premium Aluminum, Trail HT Geometry, integrated down tube battery, enclosed internal cable and Command Post IR routing, 148mm spacing
Suspension Fork
RockShox Reba RL 29/27.5+, Fast Black uppers, Solo air, 15x110mm thru-axle, 100/120mm travel (frame size specific)
Drivetrain
Rear Derailleur
SRAM GX, Type 2.1, long cage, 10-speed
Shift Levers
SRAM GX, 10-speed, trigger
Cassette
Sunrace, 10-speed, 11-40t
Crank
Custom alloy crankarms, 32T
Bottom Bracket
Integrated in motor
Chain
SRAM PC1031, 11-speed w/PowerLink
Pedals
Alloy platform
Wheels
Front Hub
Specialized disc, alloy, sealed cartridge bearings, 110x15mm thru-axle, 24h
Rear Hub
Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Rims
Roval Traverse 650b, hookless alloy, 38mm inner width, 24/28h, tubeless ready
Spokes
DT Swiss Industry, stainless
Tires
Purgatory, GRID casing, 650bx3.0"", 60TPI, Aramid folding bead, 2Bliss Ready
Brakes
Brakes
SRAM DB5, hydraulic disc, custom 4-piston caliper, semi-organic pads, 200mm rotor
Cockpit
Stem
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width
Grips
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Henge Sport, steel rails, 143mm
Seatpost
TranzX dropper, internal cable routing, remote lever, 30.9mm, S/M: 100mm, L/XL: 120mm travel
Motor & Battery
Motor
Custom & exclusive for Specialized, Trail tuned, 250 W
Battery
Custom LEVO battery, 460Wh, 40x3.2Ah, ANT+/Bluetooth connectivity, IP 67
Charger
Custom charger, 42V4A w/Rosenberger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.47 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 696 mm | 719 mm | 745 mm | 768 mm |
| Rake | 54 mm | 55 mm | 55 mm | 54 mm |
| Trail | 92 mm | 91 mm | 91 mm | 92 mm |
| Stack | 601 mm | 610 mm | 624 mm | 638 mm |
| Reach | 394 mm | 414 mm | 434 mm | 452 mm |
| Top Tube Length | 568 mm | 602 mm | 627 mm | 649 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 434 mm | 470 mm | 505 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1134 mm | 1158 mm | 1184 mm | 1207 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 750 mm | 780 mm | 806 mm | 832 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Turbo Levo Hardtail Comp 6Fattie completes the Specialized E Turbo Levo model. Specialized released 86 e-bikes variations of this model so far. Take a sneak peek at all Specialized E Turbo Levo e-bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Turbo Levo Hardtail Comp 6Fattie components
Fork
Specialized Turbo Levo Hardtail Comp 6Fattie 2017 e-bike is equipped with the RockShox Reba fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Turbo Levo Hardtail Comp 6Fattie 2017 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Turbo Levo Hardtail Comp 6Fattie has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Specialized Turbo Levo Hardtail Comp 6Fattie e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Specialized Turbo Levo Hardtail Comp 6Fattie includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
