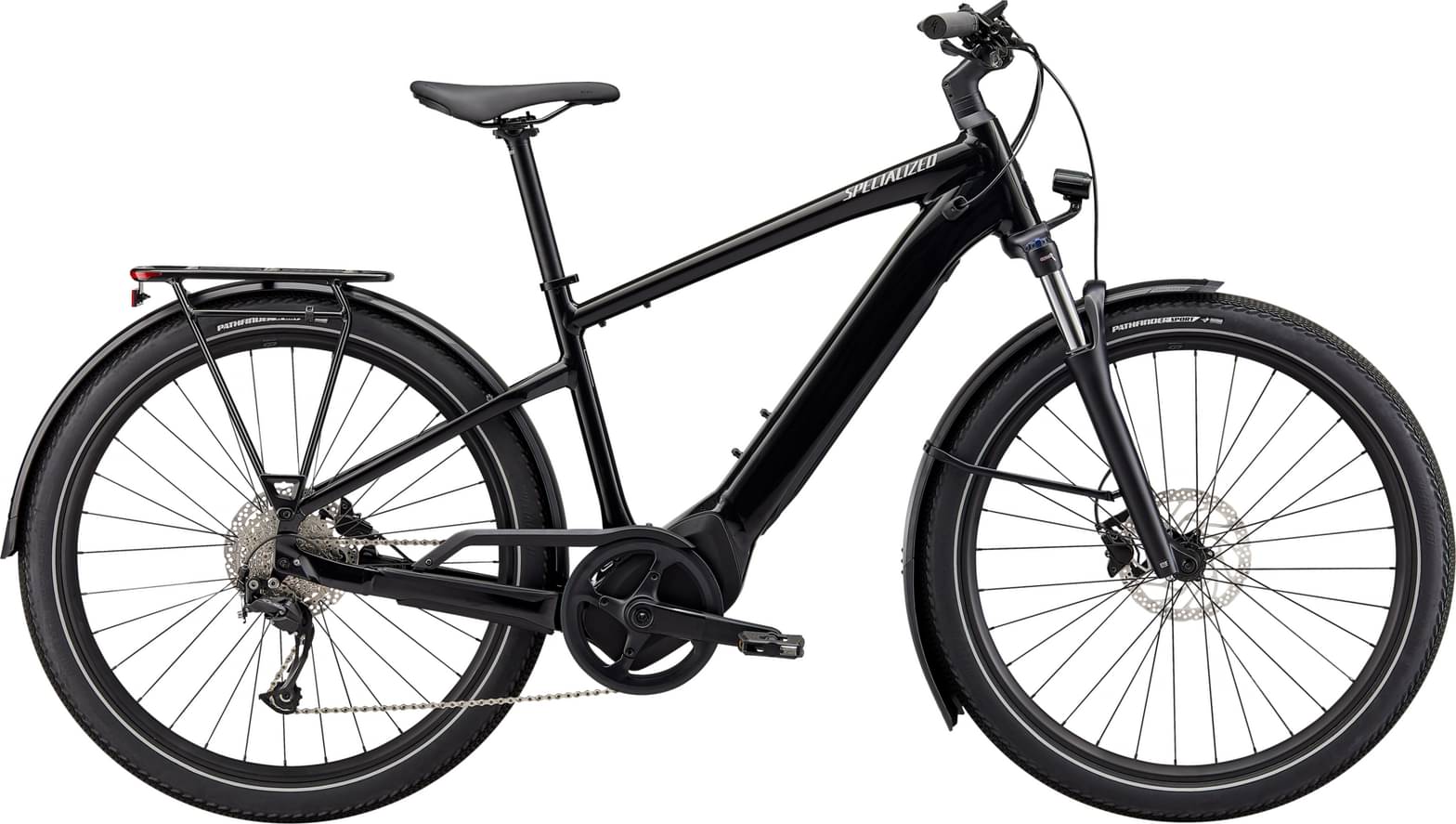

Specialized Turbo Vado 3.0 2022
2022 E-bike
Estimate price |
3,900$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset Alivio, Praxis -
Suspension Hardtail -
Motor Specialized 250W 50Nm mid-drive -
Battery Specialized U2-530, alloy casing, state of charge display, 530Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount
Suspension Fork
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Drivetrain
Rear Derailleur
Shimano Alivio, SGS, 9-speed
Shift Levers
Shimano Alivio, 9-speed w/ Optical Gear Display
Cassette
Shimano CS-HG400, 9-speed, 11-36t
Crank
Custom alloy forged crankarms, Praxis, 48T, 104BCD
Chain
KMC e9T, 9-speed w/ Missing Link™
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Shimano MT400, Centerlock, 15x100mm, 32h
Rear Hub
Shimano MT400-B, Centerlock, 12x148 Boost, 32h
Rims
650b disc, double-wall alloy, pinned, 32h
Spokes
DT Swiss Industry
Tires
Front: Pathfinder Sport Reflect, 650Bx2.3, Rear: Pathfinder Sport Reflect, 650Bx2.3
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm Centerlock
Cockpit
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Handlebar
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Grips
Specialized Body Geometry Contour, lock-on
Seat
Saddle
Rivo Sport, steel rails, 155mm
Seatpost
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Motor & Battery
Motor
Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal
Battery
Specialized U2-530, alloy casing, state of charge display, 530Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.439 mm | 1.405 mm | 1.405 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 699 mm | 724 mm | 750 mm | 777 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 625 mm | 639 mm | 652 mm | 676 mm |
| Reach | 423 mm | 444 mm | 464 mm | 481 mm |
| Seat Tube Length | 400 mm | 450 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1160 mm | 1186 mm | 1212 mm | 1239 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 735 mm | 771 mm | 771 mm | 805 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Turbo Vado 3.0 is part of the Specialized E Turbo Vado model. Specialized launched 78 e-bikes of this model so far. Take a sneak peek at all Specialized E Turbo Vado e-bikes models from 2022, by clicking here.
Model range prices
Specialized Turbo Vado 3.0 2022 is the cheapest e-bike model and costs 3610$. Specialized Turbo Vado 5.0 IGH 2022 is the most expensive one and costs 6689$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Specialized released this model in 2022, its price was 3610$. Doing a quick comparison, we notice that Turbo Vado 3.0 price is 45.56% higher than the average cost of a Hybrid e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Specialized Turbo Vado 3.0 2022 e-bike is equipped with the Suntour MOBIE fork, and has 80mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Turbo Vado 3.0 are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Turbo Vado 3.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Specialized Turbo Vado 3.0 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
