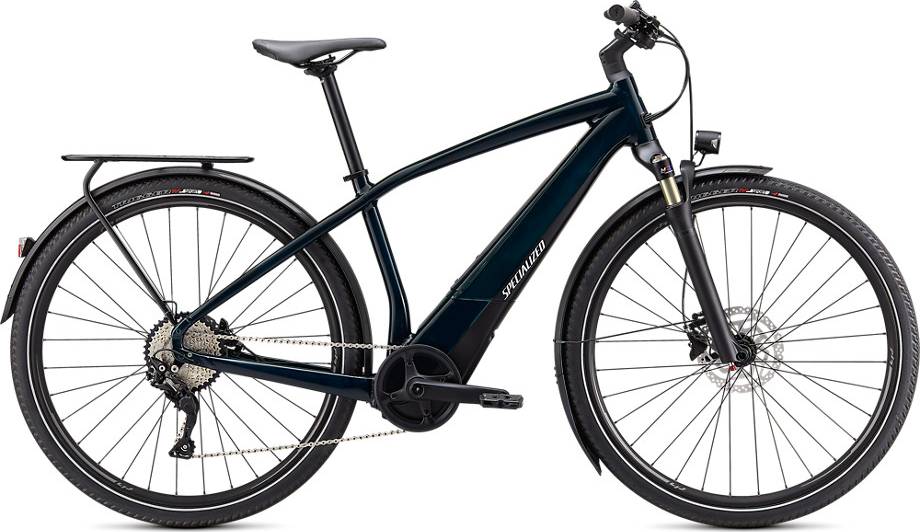

Specialized Turbo Vado 4.0 2020
2020 E-bike
Estimate price |
3,500$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Specialized 250W 72Nm mid-drive -
Battery Specialized U1-500, On/Off button, state of charge display, 500Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, Fitness/Transportation Geometry, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds
Suspension Fork
SR Suntour NCX E25, steel steerer, 15mm thru-axle, 44mm offset, 50mm of travel
Drivetrain
Rear Derailleur
Shimano Deore, Shadow Plus, GS cage, 10-speed
Shift Levers
Shimano Deore, RapidFire Plus, 10-speed w/ Optical Gear Display
Cassette
Shimano Deore, 10spd, 11-42t
Crank
Custom alloy forged crankarms, 40T, custom alloy
Chain
KMC X10eT, 10-speed w/ Missing Link™
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Specialized front hub disc, sealed bearings, 15x100mm thru-axle, 32h
Rear Hub
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
700c disc, double-wall alloy, pinned, 32h
Spokes
DT Swiss Industry
Tires
Trigger Sport Reflect, 700x47c
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Cockpit
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Handlebar
Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips
Specialized Body Geometry Contour, lock-on
Seat
Saddle
Bridge Sport, Steel rails, 155mm
Seatpost
Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm
Motor & Battery
Motor
Specialized 1.2, custom Rx Street-tuned motor, 250W nominal
Battery
Specialized U1-500, On/Off button, state of charge display, 500Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.563 mm | 1.525 mm | 1.47 mm | 1.478 mm |
| Front Center | 647 mm | 657 mm | 682 mm | 704 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 619 mm | 619 mm | 629 mm | 652 mm |
| Reach | 396 mm | 406 mm | 428 mm | 441 mm |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 135 mm | 145 mm | 170 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1116 mm | 1126 mm | 1152 mm | 1173 mm |
| Bottom Bracket Drop | -70 mm | -70 mm | -70 mm | -70 mm |
| Standover Height | 762 mm | 800 mm | 833 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Turbo Vado 4.0 is part of the Specialized E Turbo Vado model. 78 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Specialized Turbo Vado 3.0 Step-Through 2020 has a starting price of 2700$. Specialized Turbo Vado SL 5.0 EQ 2020 on the other hand is the most expensive at 4684$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2020 and its price was 3500$. Comparing this to the average Hybrid e-bike price, we see that the price is 41.13% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Turbo Vado 4.0 components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this e-bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The wheels on Turbo Vado 4.0 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Turbo Vado 4.0 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Specialized Turbo Vado 4.0 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
