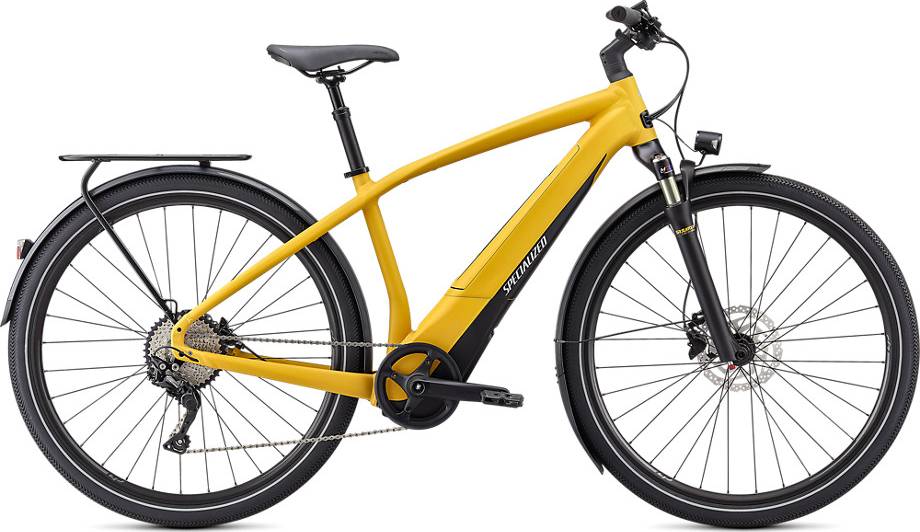

Specialized Turbo Vado 4.0 LTD 2020
2020 E-bike
Estimate price |
3,750$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Specialized 250W 72Nm mid-drive -
Battery Specialized U1-500, On/Off button, state of charge display, 500Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, Fitness/Transportation Geometry, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds
Suspension Fork
SR Suntour NCX E25, steel steerer, 15mm thru-axle, 44mm offset, 50mm of travel
Drivetrain
Rear Derailleur
Shimano Deore, Shadow Plus, GS cage, 10-speed
Shift Levers
Shimano Deore, RapidFire Plus, 10-speed w/ Optical Gear Display
Cassette
Shimano HG500, 10-speed, 11-42t
Crank
Custom alloy forged crankarms, 40T, custom alloy
Chain
KMC X10eT, 10-speed w/ Missing Link™
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Specialized front hub disc, sealed bearings, 15x100mm thru-axle, 32h
Rear Hub
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
700C disc, double-wall alloy, pinned, 32h
Spokes
DT Swiss Industry
Tires
Sawtooth Sport, 700x50c
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Cockpit
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Handlebar
Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips
Specialized Body Geometry Contour, lock-on
Seat
Saddle
Specialized Canopy Sport, steel rails, 155mm
Seatpost
Spring suspension, alloy, 30.9mm, 2-bolt
Motor & Battery
Motor
Specialized 1.2, custom Rx Street-tuned motor, 250W nominal
Battery
Specialized U1-500, On/Off button, state of charge display, 500Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.563 mm | 1.525 mm | 1.47 mm | 1.478 mm |
| Front Center | 647 mm | 657 mm | 682 mm | 704 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 619 mm | 619 mm | 629 mm | 652 mm |
| Reach | 396 mm | 406 mm | 428 mm | 441 mm |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 135 mm | 145 mm | 170 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1116 mm | 1126 mm | 1152 mm | 1173 mm |
| Bottom Bracket Drop | -70 mm | -70 mm | -70 mm | -70 mm |
| Standover Height | 762 mm | 800 mm | 833 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Turbo Vado 4.0 LTD is part of the Specialized E Turbo Vado model. There are 78 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Specialized Turbo Vado 3.0 2020 has a starting price of 2700$. Specialized Turbo Vado SL 5.0 EQ 2020 on the other hand is the most expensive at 4684$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 3750$. Comparing this to the average Hybrid e-bike price, we see that the price is 51.21% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Turbo Vado 4.0 LTD components
Fork
The fork installed on this bike is the SunTour NCX model. The travel on this model is 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this e-bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
The wheels on Turbo Vado 4.0 LTD are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Turbo Vado 4.0 LTD is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
