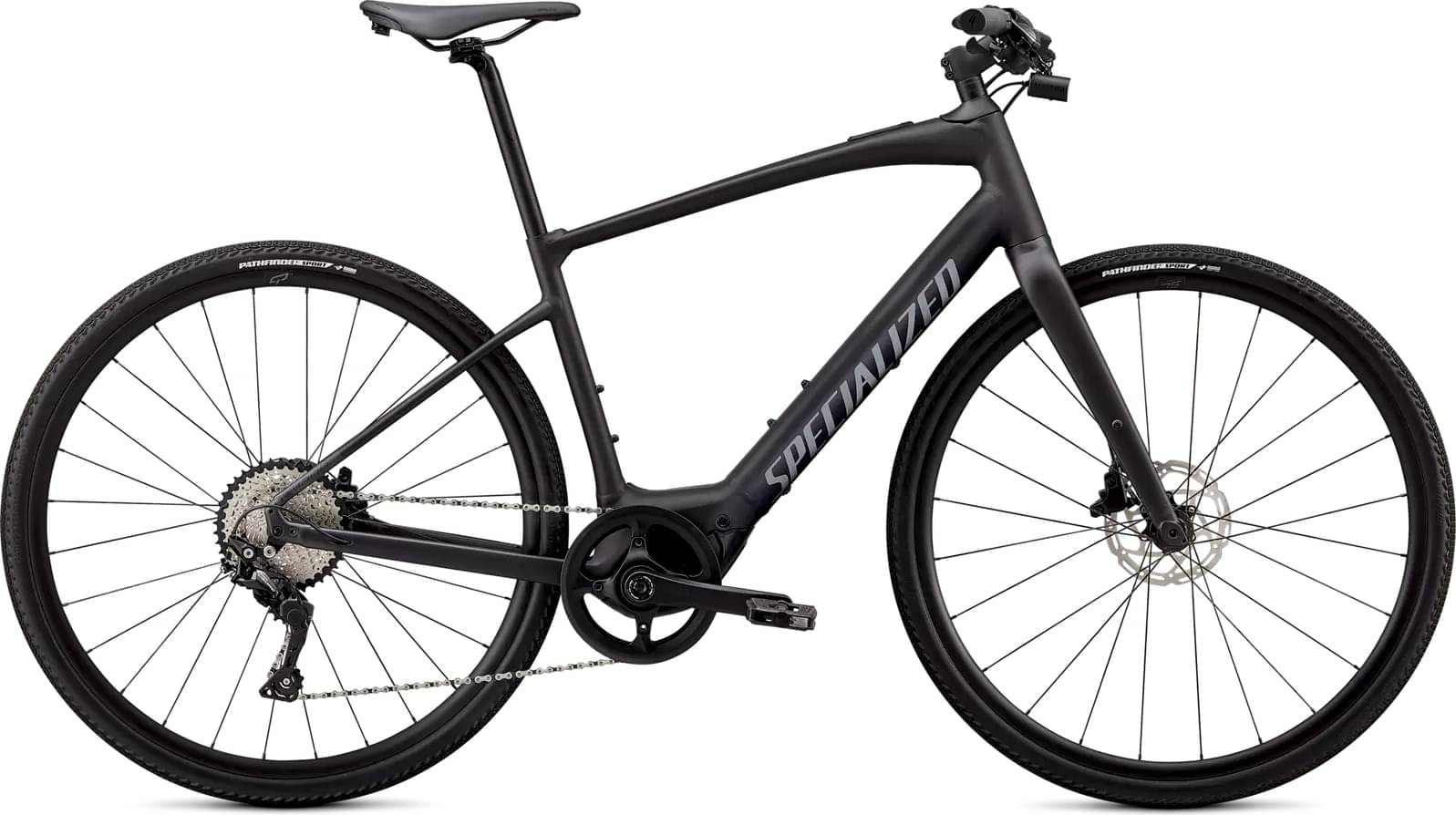

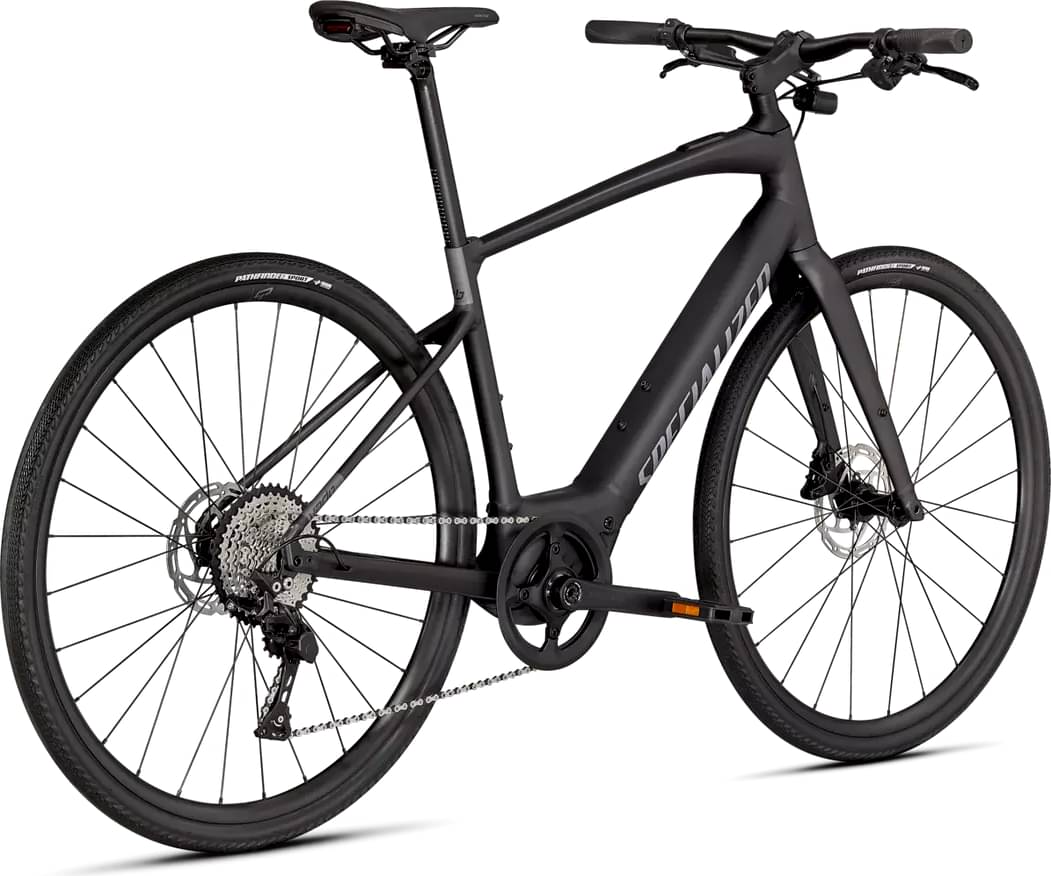

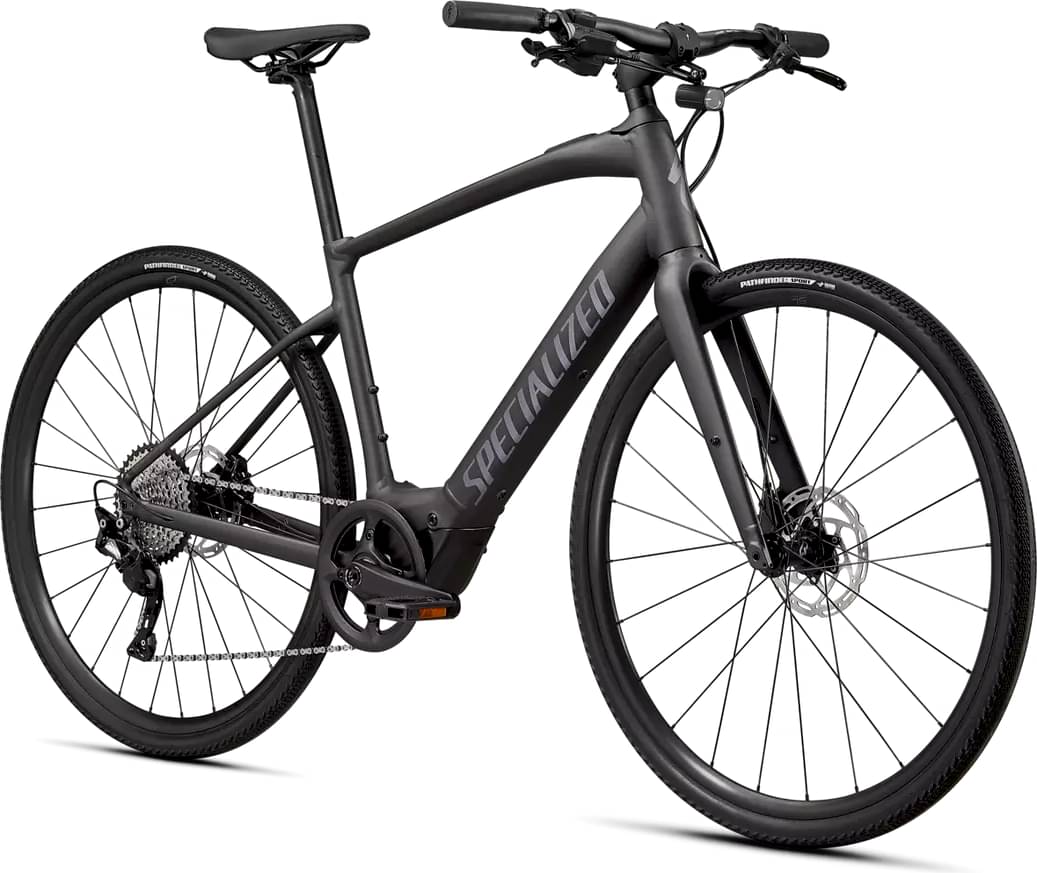

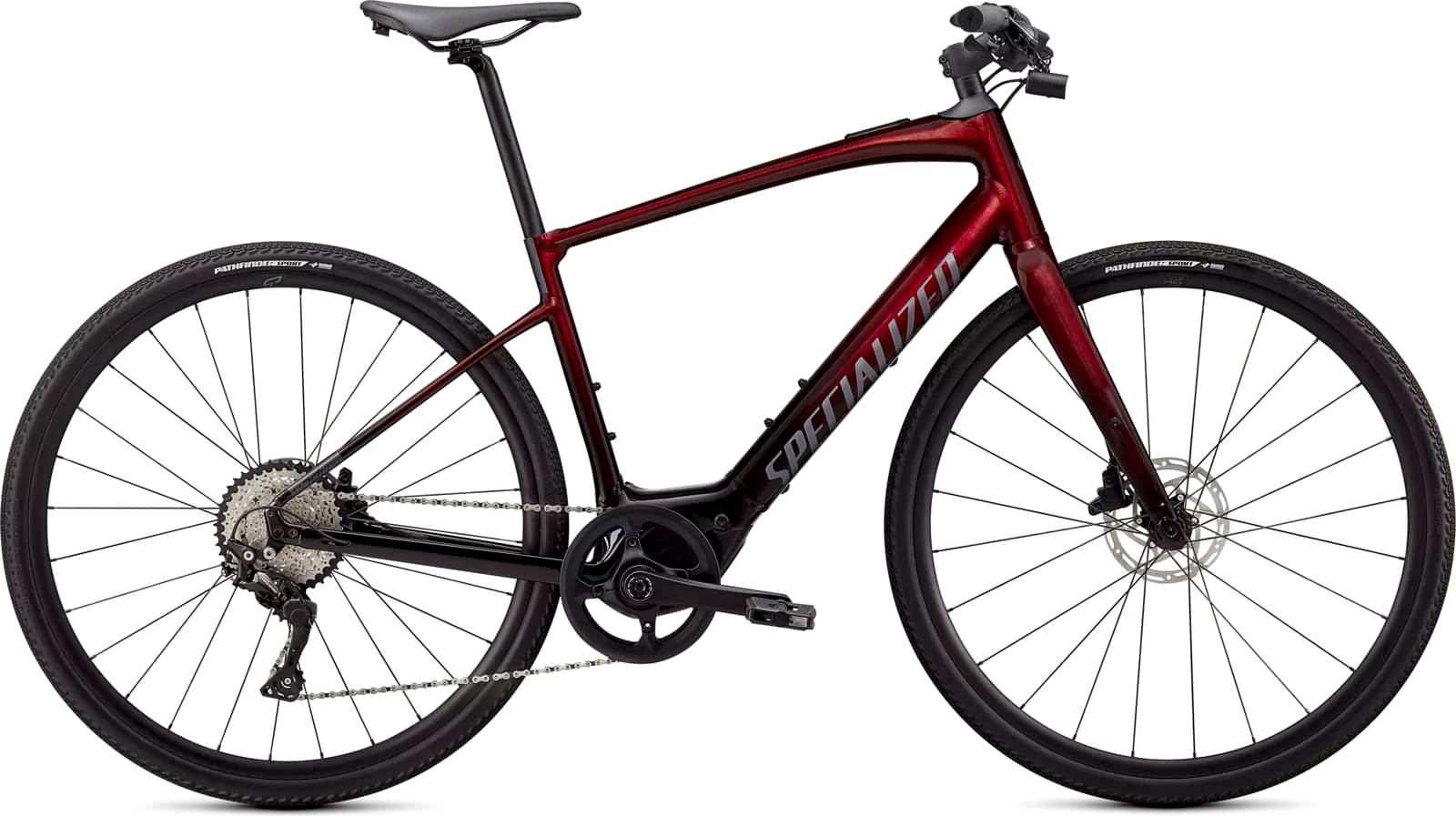

Specialized Vado SL 4.0 2022
2022 E-bike
Estimate price |
3,600$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Deore, Praxis -
Suspension Rigid -
Motor Specialized 240W 35Nm mid-drive -
Battery Specialized SL1-320, fully integrated, 320Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rigid full aluminum disc, Boost™ 12x110mm, front- rack-compatible
Drivetrain
Rear Derailleur
Shimano Deore, Shadow Plus, GS cage, 10-speed
Shift Levers
Shimano Deore, RapidFire Plus, 10-speed w/ Optical Gear Display
Cassette
Shimano Deore, 10spd, 11-42t
Crank
Praxis, Forged alloy M30, custom offset, Praxis, 44T, 104BCD
Chain
KMC e10S, 10-speed w/ Missing Link™
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h
Rear Hub
Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h
Rims
700C disc, 22mm rim depth, 21mm internal width
Spokes
DT Swiss Industry
Tires
Front: Specialized Pathfinder Sport, 700x38c, Rear: Specialized Pathfinder Sport, 700x38c
Brakes
Brakes
Front: Tektro HD-R290, hydraulic disc, 160mm, Rear: Tektro HD-R290, hydraulic disc, 160mm
Cockpit
Stem
Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount
Handlebar
Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Seat
Saddle
Bridge Sport, Steel rails, 155mm
Seatpost
Specialized, alloy, dual-bolt, 25mm offset, 27.2mm
Motor & Battery
Motor
Specialized SL 1.1, custom lightweight motor
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.59 mm | 1.64 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 626 mm | 655 mm | 675 mm | 690 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 67 mm | 64 mm | 61 mm |
| Stack | 593 mm | 624 mm | 658 mm | 694 mm |
| Reach | 376 mm | 399 mm | 413 mm | 422 mm |
| Top Tube Length | 552 mm | 585 mm | 608 mm | 628 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 415 mm | 446.5 mm | 494.5 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 185 mm | 217 mm | 250 mm | 285 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1060 mm | 1089 mm | 1108 mm | 1124 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 768 mm | 788 mm | 813 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Vado SL 4.0 belongs to the Specialized E Vado model. 6 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Specialized Vado SL 4.0 2022 is the cheapest e-bike model and costs 3600$. Specialized Vado SL 4.0 EQ 2022 is the most expensive one and costs 3750$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3600$. If we compare this with the average Hybrid e-bike cost we notice that the price is 45.16% more expensive.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
The Vado SL 4.0 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Vado SL 4.0 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Specialized Vado SL 4.0 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
