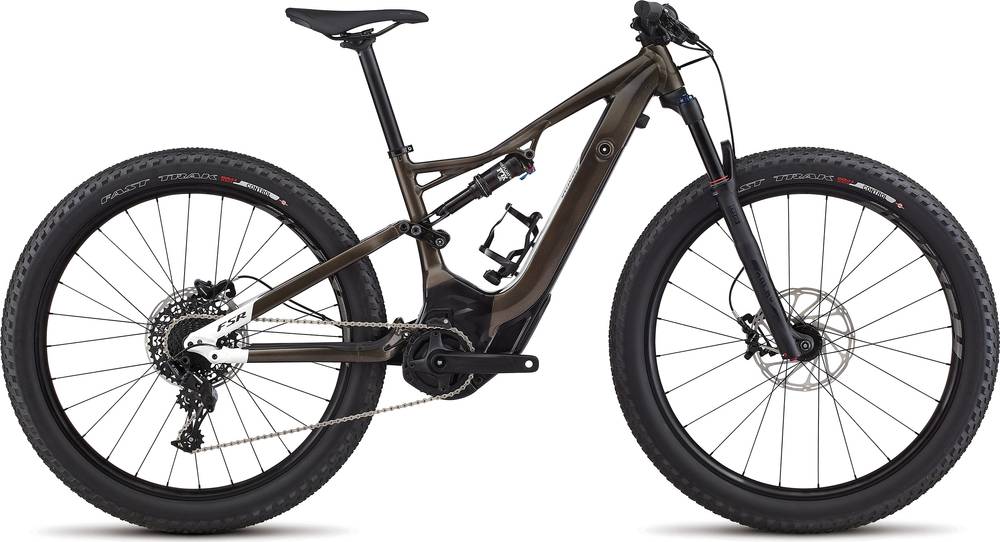

Specialized Women’s Turbo Levo Short Travel FSR 6Fattie 2017
2017 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset NX -
Suspension Full -
Motor Specialized 250W mid-drive -
Battery Custom LEVO battery, 460Wh, 40x3.2Ah, ANT+/Bluetooth connectivity, IP 67 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized M5 Premium Aluminum, Trail Geometry, integrated down tube battery, enclosed internal cable and Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 140mm of travel
Suspension Fork
RockShox Revelation RL 29/27.5+, Solo Air spring, lockout and rebound adjust, 15x110mm Maxle Lite thru-axle, 51mm offset, 120mm travel
Rear Shock
FOX FLOAT Performance, Women's Rx Tune, AUTOSAG, DPS damper, rebound and 3-position compression adjust, 197x47.6mm
Drivetrain
Rear Derailleur
SRAM NX, long cage, 11-speed
Shift Levers
SRAM NX, 11-speed, trigger
Cassette
SRAM PG-1130, 11-speed, 11-42t
Crank
Custom alloy crankarms, 32T
Bottom Bracket
Integrated in motor
Chain
SRAM PC1130, 11-speed w/PowerLink
Wheels
Front Hub
Specialized disc, alloy, sealed cartridge bearings, 110x15mm thru-axle, 24h
Rear Hub
Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Rims
Roval Traverse 650b, hookless alloy, 38mm inner width, 24/28h, tubeless ready
Spokes
DT Swiss Industry, stainless
Tires
Fast Trak, GRID casing, 650bx2.8"", 60TPI, Aramid folding bead, 2Bliss Ready
Brakes
Brakes
SRAM DB5, hydraulic disc, custom 4-piston caliper, semi-organic pads, 200mm rotor
Cockpit
Stem
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 720mm width
Grips
Specialized Sip Grip, lock-on, half-waffle, regular thickness
Seat
Saddle
Women's Body Geometry Myth Sport, steel rails, 155mm
Seatpost
Alloy, 2-bolt clamp, 12.5mm offset, 30.9mm, anti-corrosion hardware
Motor & Battery
Motor
Custom & exclusive for Specialized, Trail tuned, 250 W
Battery
Custom LEVO battery, 460Wh, 40x3.2Ah, ANT+/Bluetooth connectivity, IP 67
Charger
Custom charger, 42V4A w/Rosenberger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.4 mm | 1.41 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 688 mm | 716 mm | 746 mm |
| Rake | 51 mm | 52 mm | 52 mm |
| Trail | 93 mm | 92 mm | 92 mm |
| Stack | 585 mm | 590 mm | 617 mm |
| Reach | 395 mm | 420 mm | 439 mm |
| Top Tube Length | 548.6 mm | 573 mm | 608 mm |
| Seat Tube Angle | 75.4 ° | 75 ° | 74.8 ° |
| Seat Tube Length | 396 mm | 435 mm | 468 mm |
| Head Tube Angle | 67.4 ° | 67.4 ° | 67.4 ° |
| Head Tube Length | 95 mm | 100 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1142 mm | 1170 mm | 1200 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Standover Height | 753 mm | 763 mm | 771 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Women’s Turbo Levo Short Travel FSR 6Fattie is a Specialized E Turbo Levo model. There are 86 e-bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT Performance, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Women’s Turbo Levo Short Travel FSR 6Fattie model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Women’s Turbo Levo Short Travel FSR 6Fattie has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
