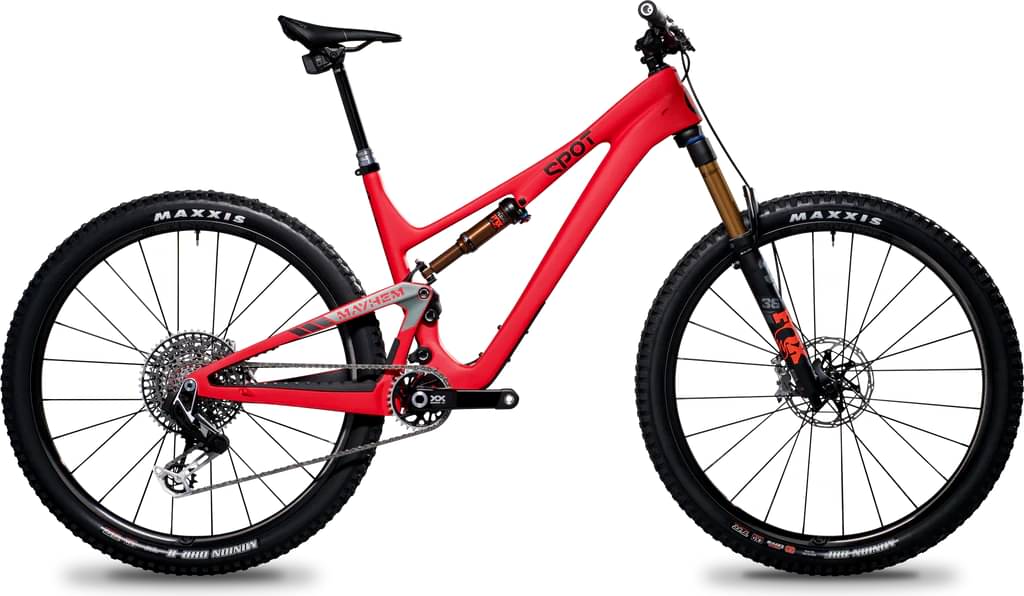

Spot Brand Spot Mayhem 130 — 4-Star 2022
2022 Mountain
Estimate price |
5,499$
Weight | 13.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Select
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox PIKE Select, Boost, 140mm, 42mm rake, 29
Rear Shock
Fox Performance Float DPS EVOL, 230x57.5
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle Lunar, 12-speed, Trigger
Cassette
SRAM XG1275, 12-speed, 10-52t
Crank
SRAM Stylo Eagle, B148, DUB, 170mm, 30t
Bottom Bracket
SRAM DUB BSA 73mm threaded
Chain
SRAM GX Eagle
Wheels
Rims
Front: 29: Stan's Arch S2 Pro 29, Tubeless, Boost 15x110, 6-bolt. 27.5+: Stan's Flow S2 27.5+, Tubeless, Boost 15x110, 6-bolt., Rear: 29: Stan's Arch S2 Pro 29, Tubeless, Boost 12x148, XD, 6-bolt. 27.5+: Stan's Flow S2 27.5+, Tubeless, Boost 12x148, XD, 6-bolt.
Tires
Front: Maxxis Minion DHF 29x2.3, 60tpi, 3C Maxx Terra, 27.5+: Maxxis Rekon Plus 27.5x2.8 60tpi Dual EXO/TR, Rear: Maxxis Minion DHF 29x2.3, 60tpi, 3C Maxx Terra, 27.5+: Maxxis Rekon Plus 27.5x2.8 60tpi Dual EXO/TR
Brakes
Brakes
Front: SRAM G2 R, 4-piston, 180mm, Centerline, 6-bolt rotor, Rear: SRAM G2 R, 4-piston, 180mm, Centerline, 6-bolt rotor
Cockpit
Stem
Race Face Aeffect, 35 x 50mm
Handlebar
Race Face Aeffect R, 35mm, XL/LG 780mm, MD 760mm, SM 750mm, 20mm rise, Alloy
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185mm for XL and Large, 160mm for Medium, 125mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 719 mm | 750 mm | 782 mm | 811 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm |
| Trail | 111 mm | 112 mm | 111 mm | 111 mm |
| Stack | 604 mm | 619 mm | 633 mm | 642 mm |
| Reach | 422 mm | 447 mm | 472 mm | 497 mm |
| Top Tube Length | 576 mm | 600 mm | 622 mm | 644 mm |
| Seat Tube Angle | 75.5 ° | 76 ° | 76.5 ° | 77 ° |
| Seat Tube Length | 356 mm | 407 mm | 457 mm | 495 mm |
| Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1161 mm | 1192 mm | 1224 mm | 1253 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 714 mm | 714 mm | 714 mm | 714 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mayhem 130 — 4-Star is part of the Spotbrand Mayhem model. Spot launched 25 bikes of this model so far. Take a sneak peek at all Spotbrand Mayhem bikes models from 2022, by clicking here.
Model range prices
Spot Mayhem 130 — 4-Star 2022 is the most affordable bike of this model and has a price of 5499$. On the other hand, Spot Mayhem 150 — 6-Star AXS 2022, is the most expensive and costs 9199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Spot Mayhem 130 — 4-Star price was 5499$. Doing a quick comparison, we notice that Mayhem 130 — 4-Star price is 99.09% higher than the average cost of a Trail bike.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Mayhem 130 — 4-Star has a weight of 13.34 kg (29.41 lbs). In short, the average Trail bike weight is 2.77% lower than this one.
Overview of components
Fork
Spot Mayhem 130 — 4-Star 2022 bike is equipped with the RockShox Pike Select fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Performance Float DPS EVOL rear shock model, which has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Mayhem 130 — 4-Star 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Spot Mayhem 130 — 4-Star is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Spot Mayhem 130 — 4-Star comes with a dropper post. Therefore, climbing or descending will be a breeze.
