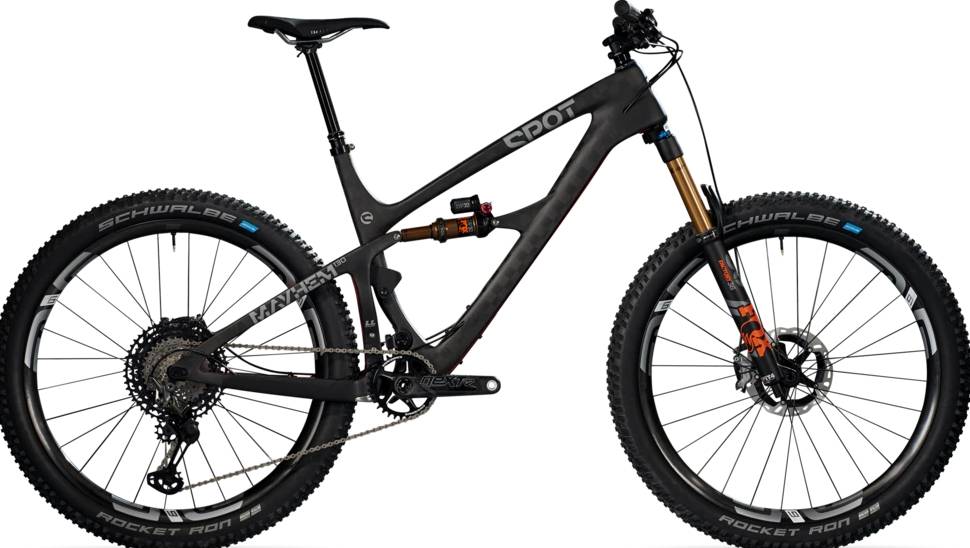

Spot Brand Mayhem 130 — 5-Star 2020
2020 Mountain
Estimate price |
4,999$
Weight | 13.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Factory 36 Float, 29, 140mm, 44mm rake, travel, 3Pos-Adj, FIT4, Boost
Rear Shock
Fox Factory Float DPX2 EVOL LV, 3 Pos. Adj. 200x57
Drivetrain
Rear Derailleur
SRAM XO1 Eagle BLK, 12-speed
Shift Levers
SRAM GX Eagle BLK, 12-speed, Trigger
Cassette
SRAM XG1275, 12-speed, 10-50t, BLK
Crank
SRAM X1 Carbon Eagle, B148 DUB, 170mm, 32t
Bottom Bracket
SRAM BSA 73mm threaded
Chain
SRAM GX Eagle, BLK
Wheels
Rims
Stan's Arch MK3 29, Tubeless, Boost15x110
Tires
Schwalbe Hans Dampf 29x2.35
Brakes
Brakes
SRAM G2RSC, 180mm Centerline rotor
Cockpit
Stem
Race Face Turbine R, 60mm
Handlebar
Race Face Next R, XL/LG 780mm, MD 760mm, SM 750mm
Grips
ODI Vans Slip-on
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
WTB Silverado
Seatpost
BikeYoke Revive 160mm for XL and Large, 125mm for Medium and Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.443 mm | 1.392 mm | 1.341 mm |
| Front Center | 28 mm | 29 mm | 30 mm | 31 mm |
| Rake | 2 mm | 2 mm | 2 mm | 2 mm |
| Trail | 163 mm | 163 mm | 163 mm | 163 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Wheelbase | 45 mm | 46 mm | 47 mm | 49 mm |
| Bottom Bracket Drop | 1 mm | 1 mm | 1 mm | 1 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mayhem 130 — 5-Star is part of the Spotbrand Mayhem model. 25 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Spot Brand Mayhem 130 — 4-Star 2020 is the cheapest bike model and costs 4199$. Spot Brand Mayhem 130 — 6-Star AXS 2020 is the most expensive one and costs 7199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 4999$. Comparing the average cost of a Trail bike to this one, you will see that Mayhem 130 — 5-Star price is 80.99% higher.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Mayhem 130 — 5-Star weighs 13.02 kg (28.7 lbs) and is slightly heavier than the average. To sum up, it’s 0.31% heavier than the average weight of Trail bikes.
Mayhem 130 — 5-Star components
Fork
Spot Brand Mayhem 130 — 5-Star 2020 bike is equipped with the Fox Factory Float 36 fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Spot Brand Mayhem 130 — 5-Star bike has the Fox Factory Float DPX2 EVOL LV model installed, and has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Mayhem 130 — 5-Star model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Spot Brand Mayhem 130 — 5-Star has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Mayhem 130 — 5-Star comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Spot Brand model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
