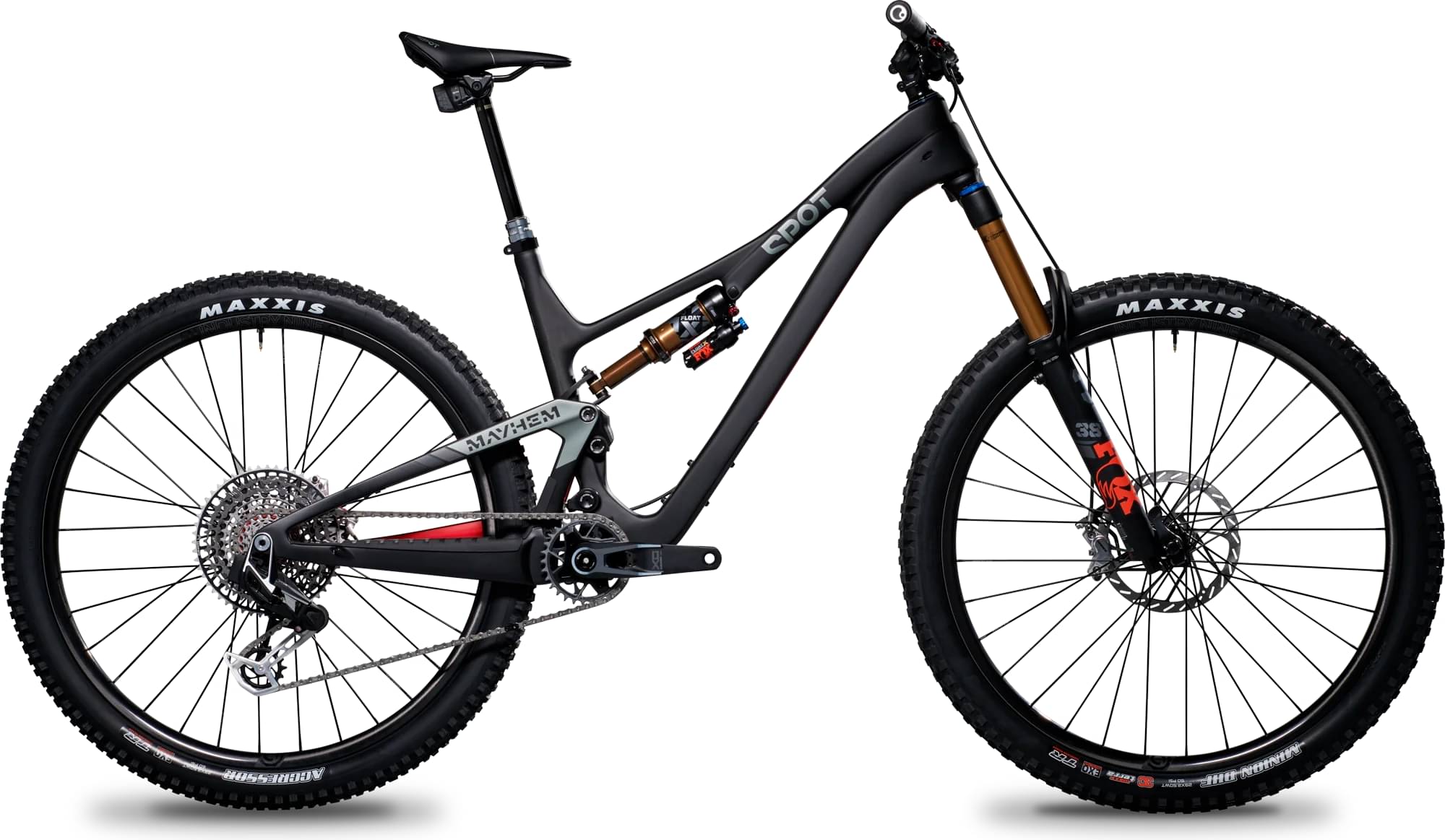

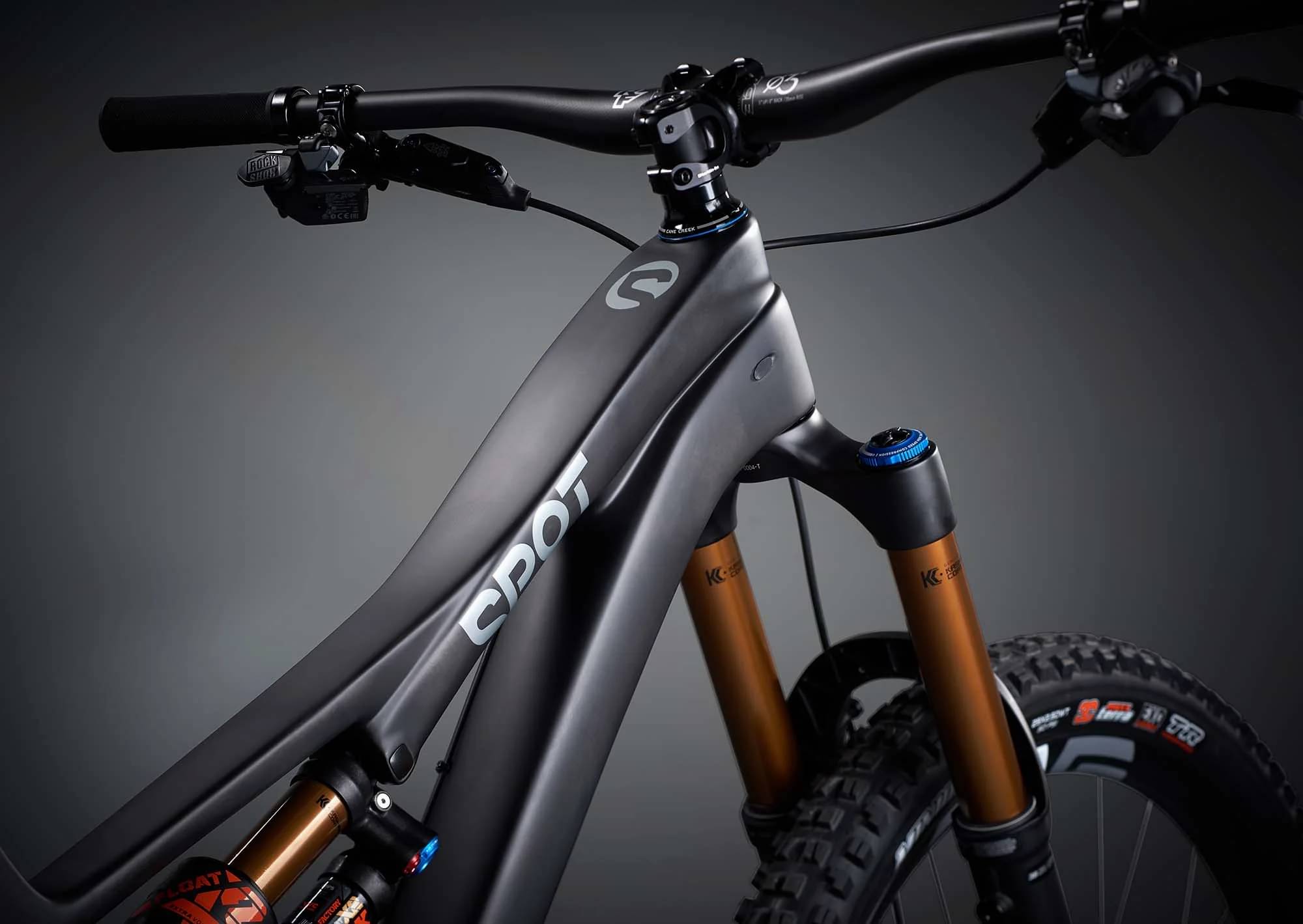

Spot Brand Spot Mayhem 150 6-Star AXS 2023
2023 Mountain
Estimate price |
9,199$
Weight | 13.47 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle AXS, X0 -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

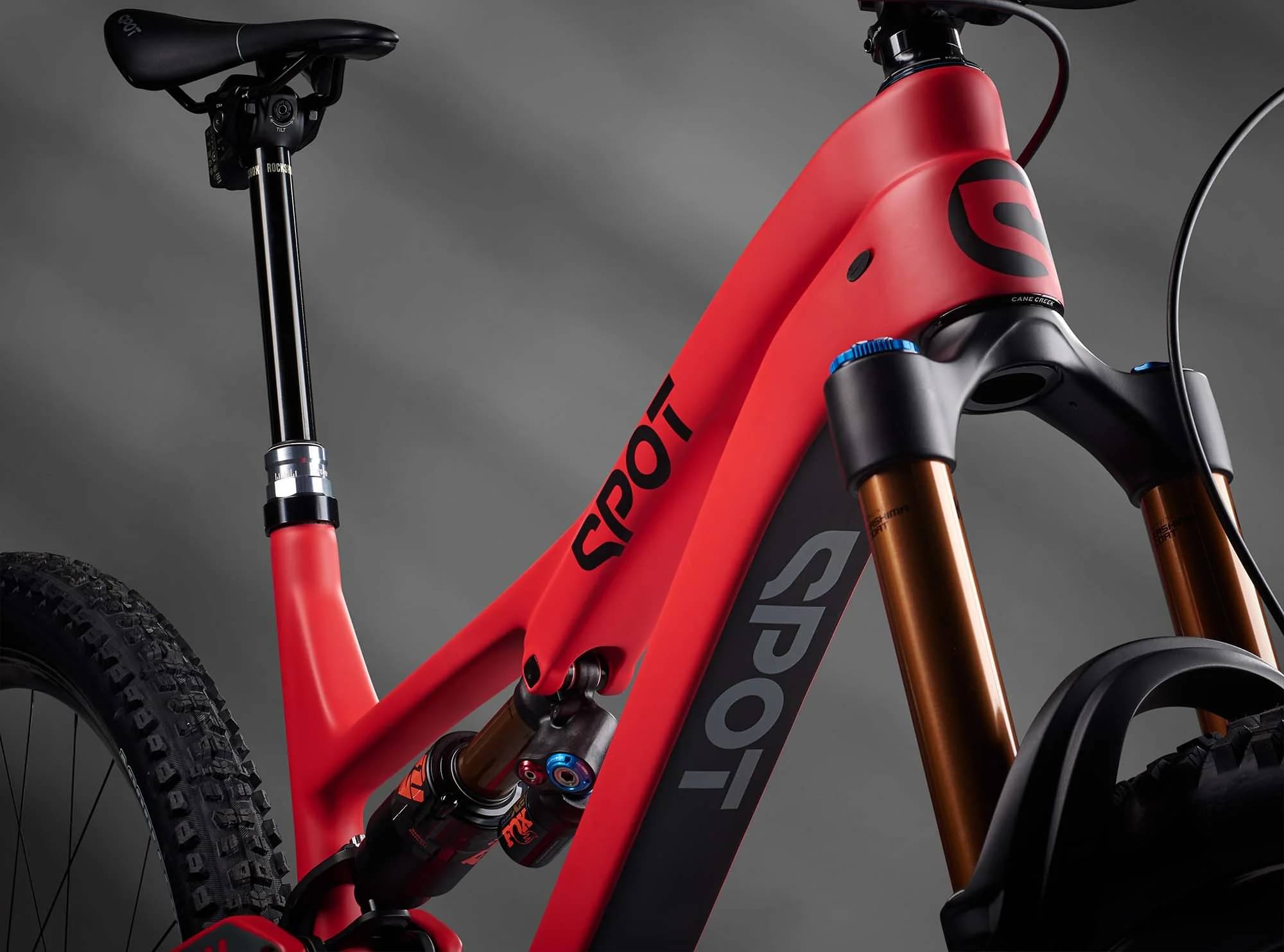

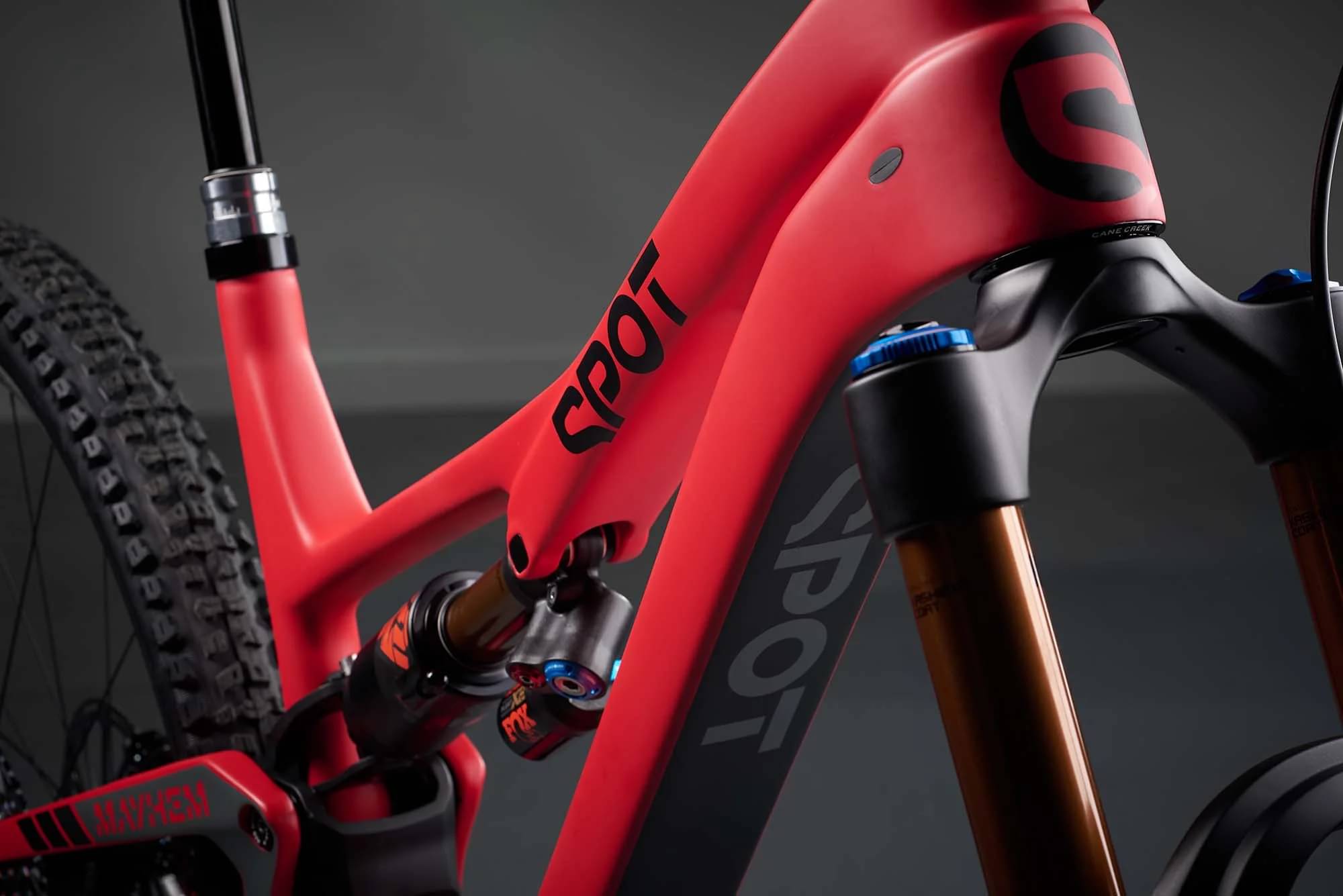

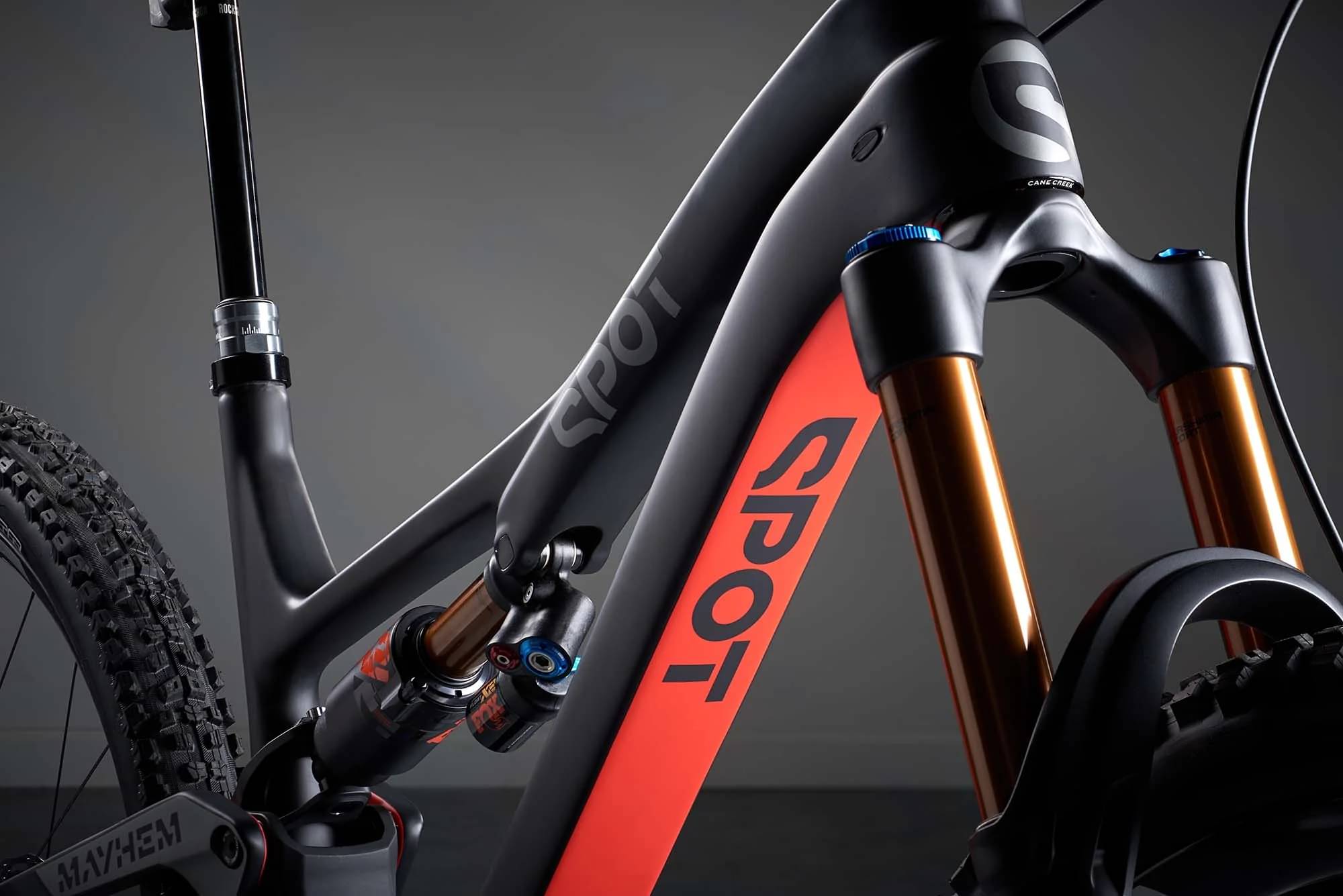

Suspension Fork
Fox Factory 38 Float, 29, Grip 2, HSC, LSC, HSR, LSR, 160mm, 44mm rake, Boost

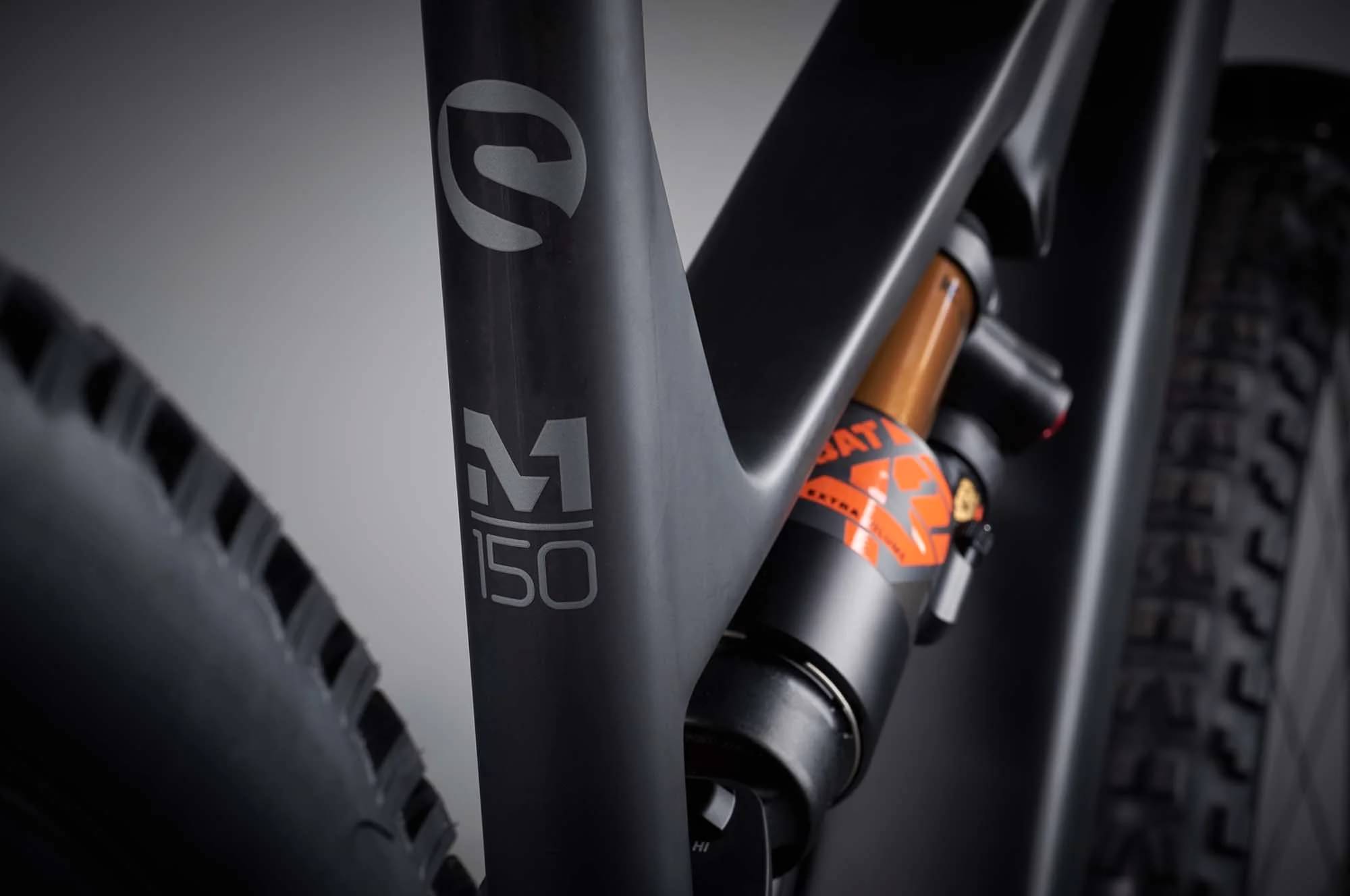

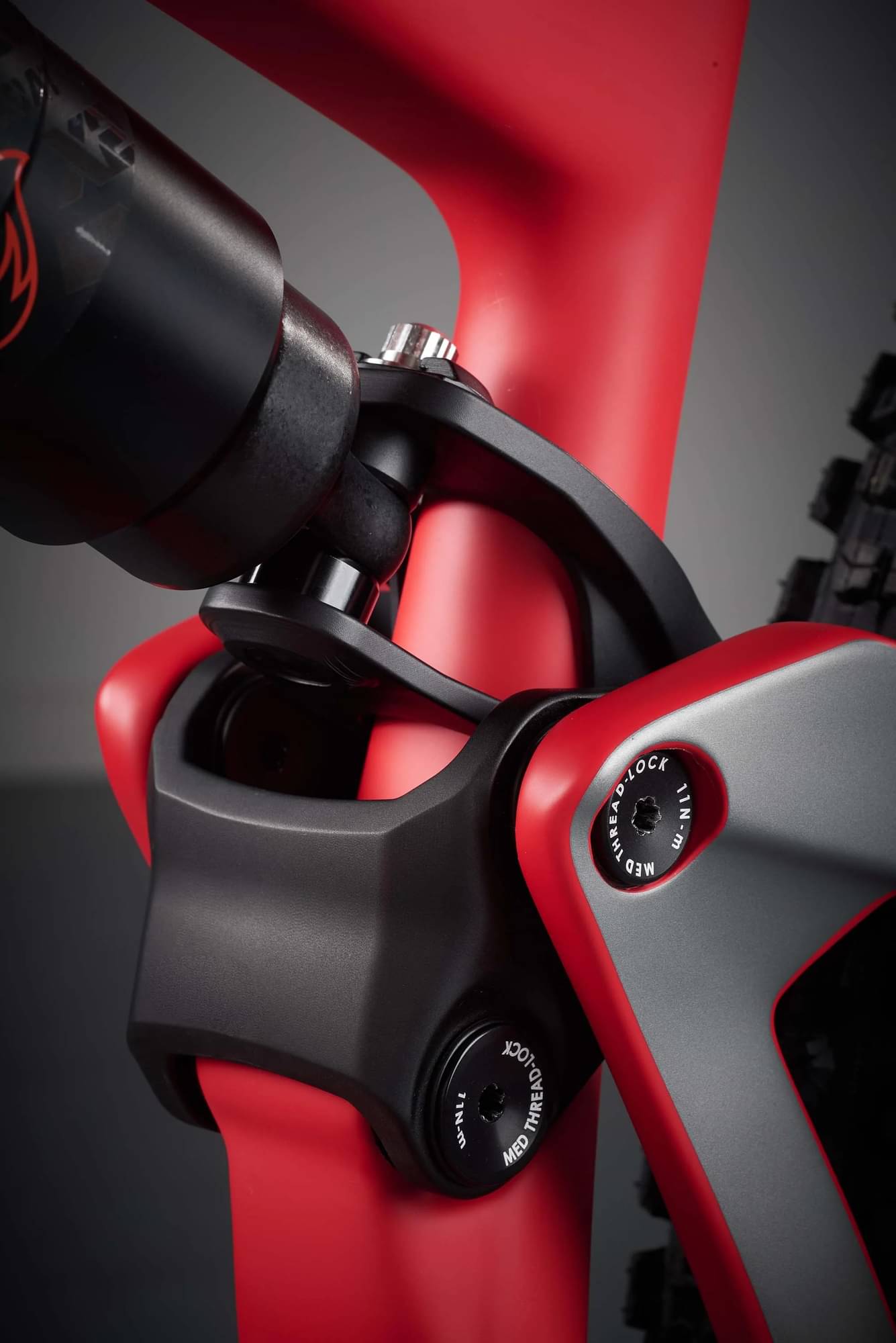

Rear Shock
Fox Factory Float X, 2 Pos. Adj. 230x65

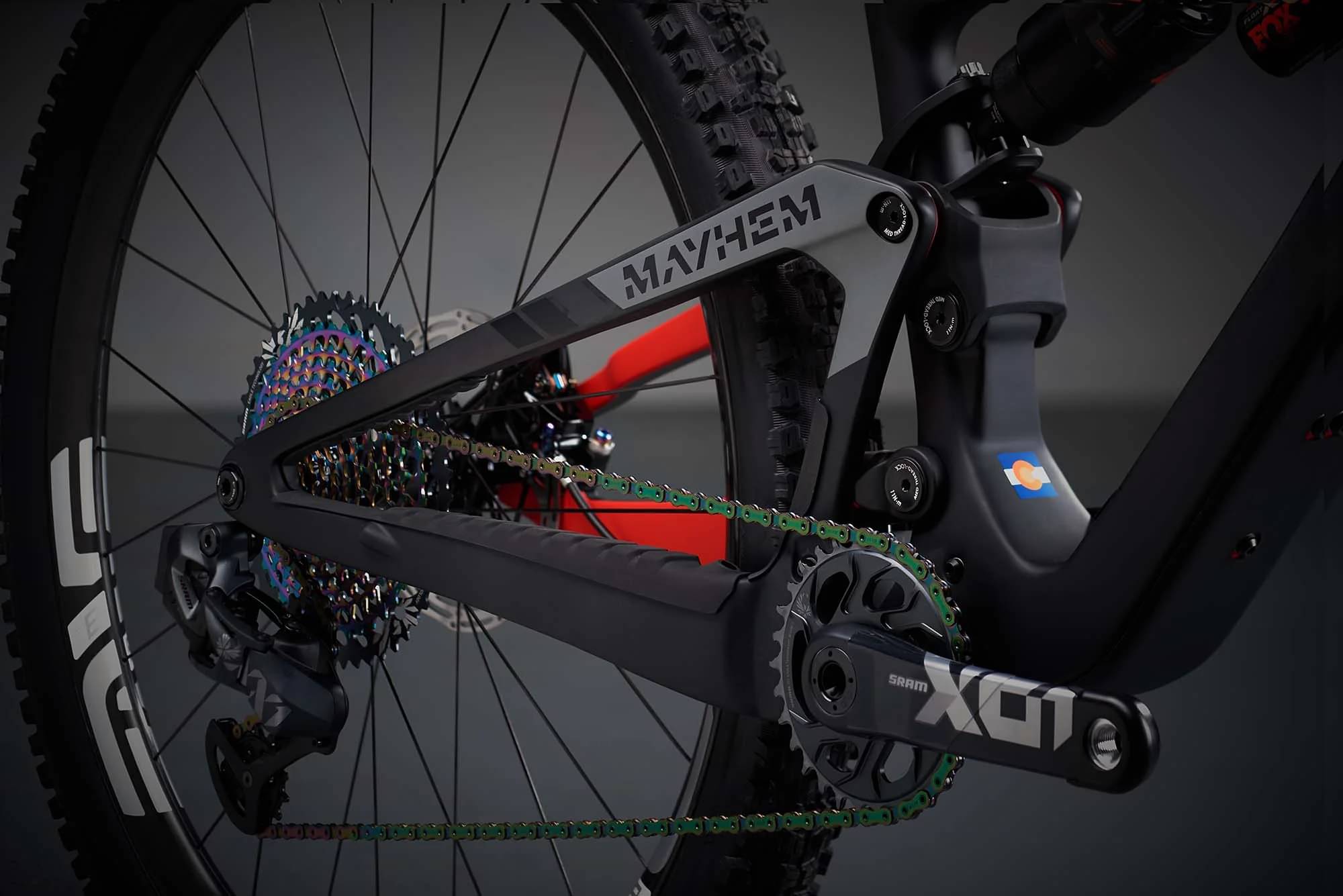

Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS Wireless, Hangerless, 12-speed
Shift Levers
SRAM AXS Pod Controller, 12-speed
Cassette
SRAM X0 1295, 12-speed, 10-52t, Black
Crank
SRAM X0 Eagle, B148, 170mm, 30t
Bottom Bracket
SRAM DUB BSA 73mm threaded
Chain
SRAM X0 Eagle, Flattop, Black
Wheels
Rims
Front: Industry Nine EN325/310 DUO 29, 32H, Tubeless, 6-Bolt, Boost 15x110, Rear: Industry Nine EN325/310 DUO 29, 32H, Tubeless, 6-Bolt, Boost 12x148, XD
Tires
Front: Maxxis Minion DHF 29x2.5 WT, 60tpi, 3C Maxx Terra, Rear: Maxxis Minion DHF 29x2.5 WT, 60tpi, 3C Maxx Terra

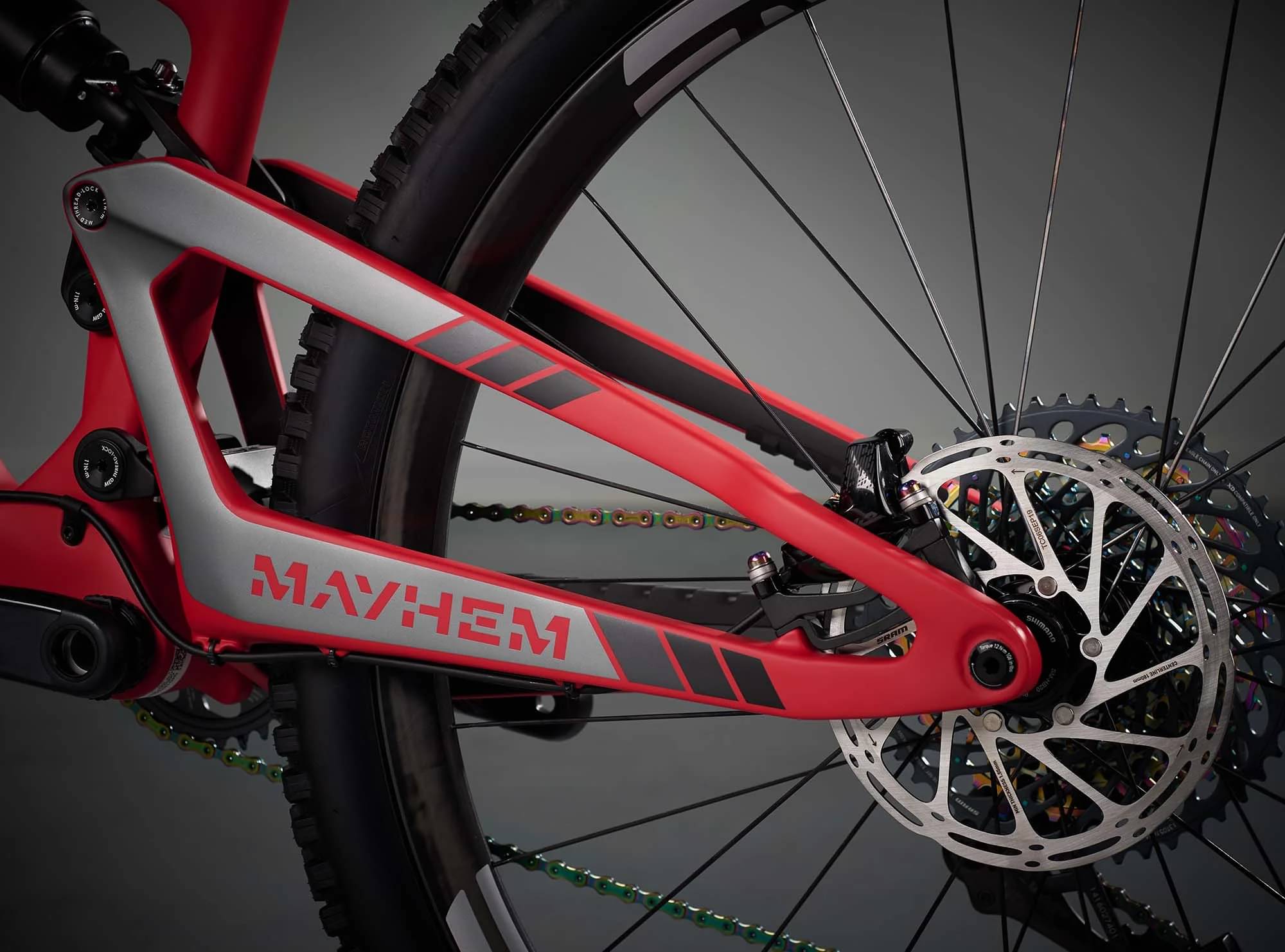

Brakes
Brakes
Front: SRAM CODE Ultimate Stealth, 4-piston, 200mm, HS2, 6-bolt rotor, Rear: SRAM CODE Ultimate Stealth, 4-piston, 200mm, HS2, 6-bolt rotor
Cockpit
Stem
Race Face Turbine R, 35 x 40mm
Handlebar
>OneUp, 35mm, XL/LG 800mm, MD 780mm, SM 760mm, 20mm rise, Carbon
Grips
Ergon GXR, Black

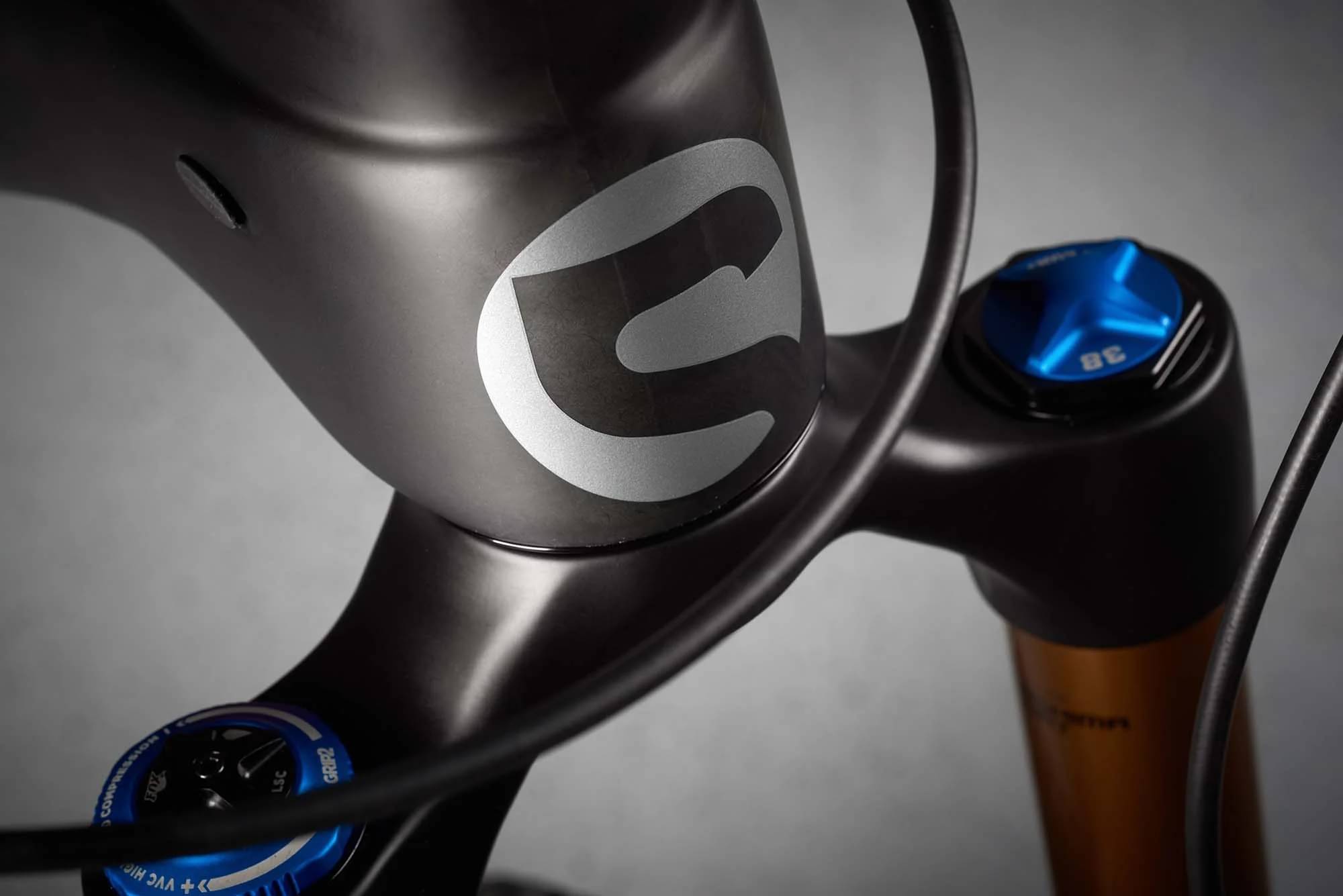

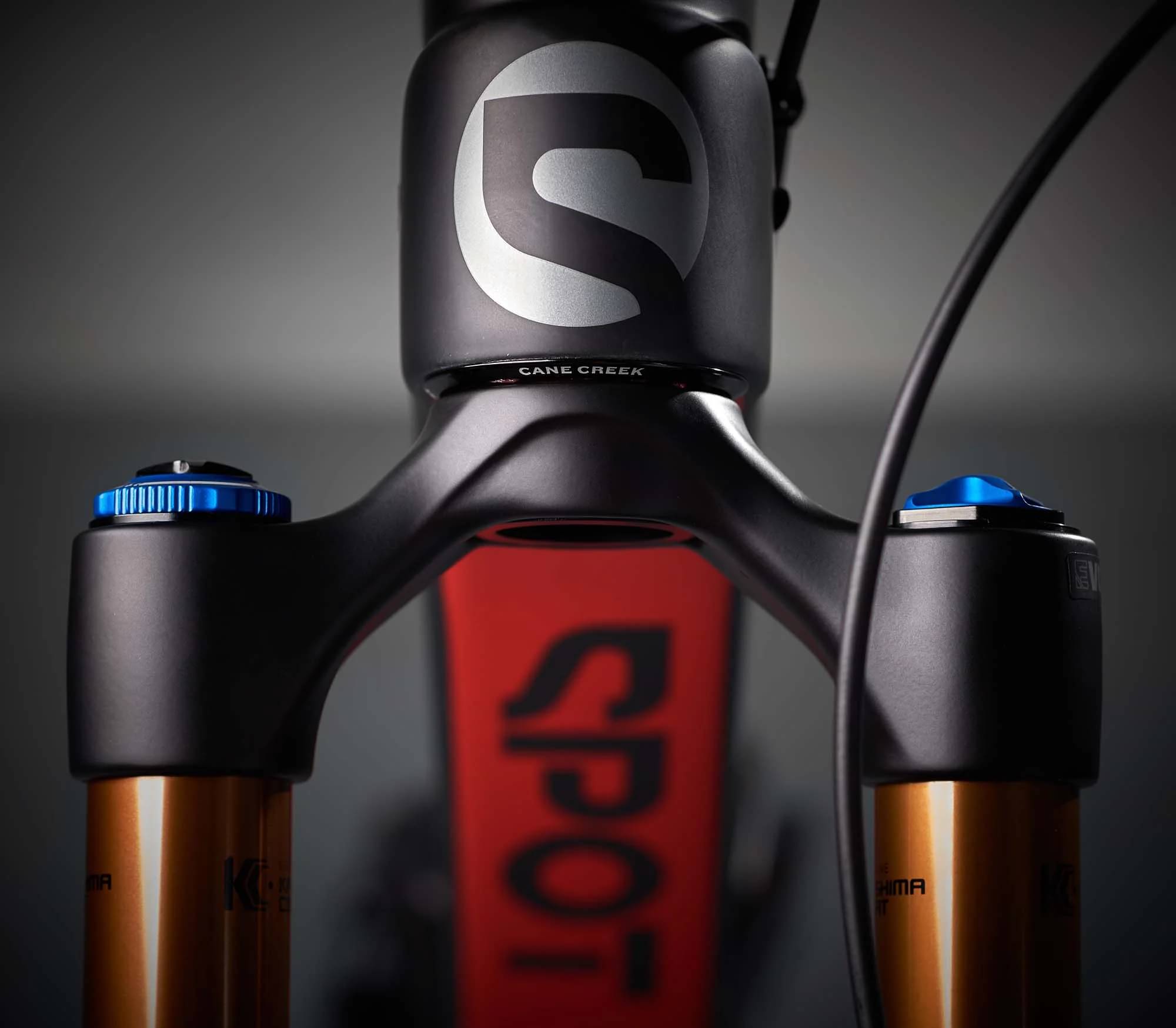

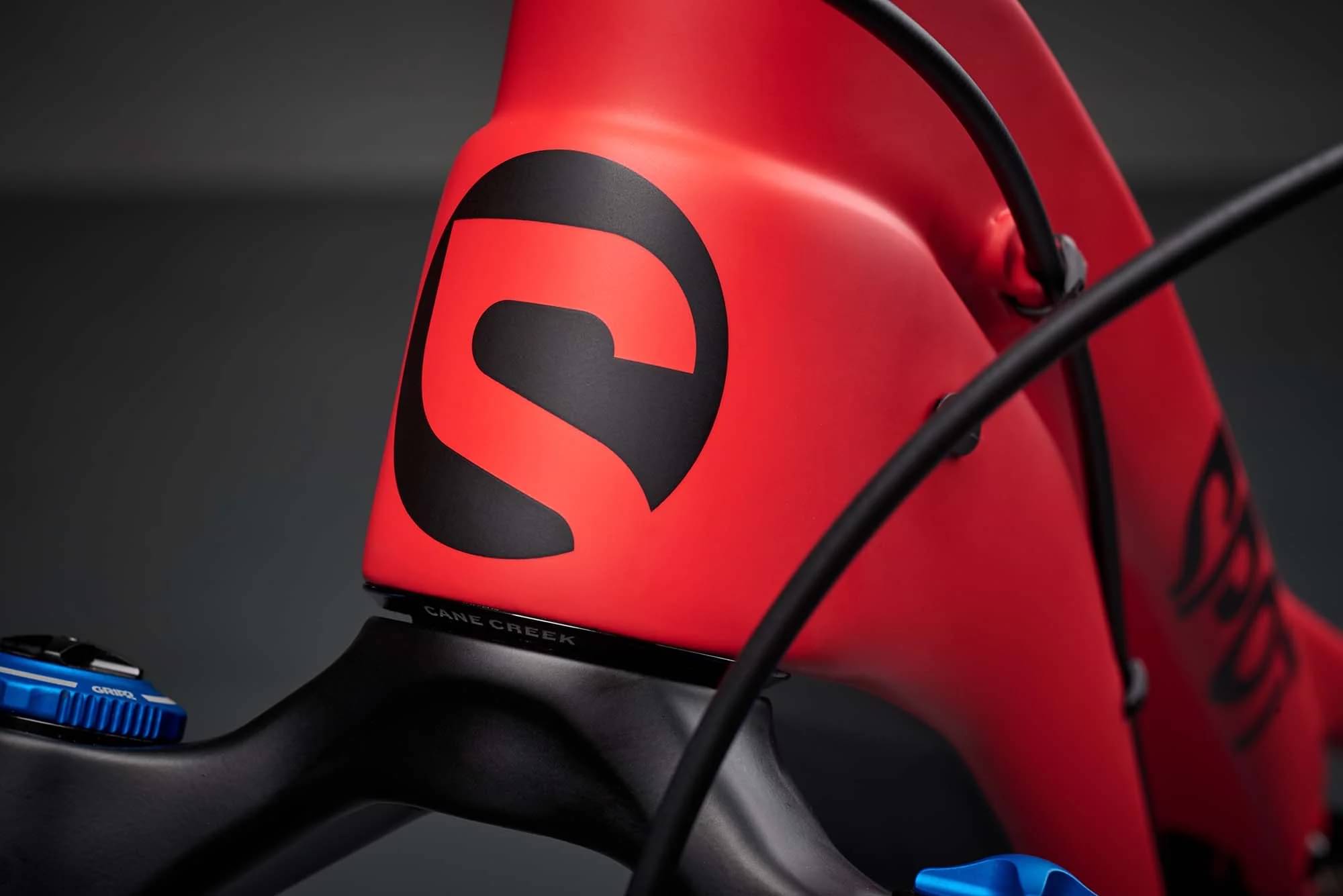

Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
SRAM AXS Wireless 170mm for XL and Large, 150mm for Medium, 125mm for Small, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 731 mm | 765 mm | 798 mm | 834 mm |
| Rake | 45 mm | 45 mm | 43 mm | 45 mm |
| Trail | 125 mm | 125 mm | 127 mm | 125 mm |
| Stack | 612 mm | 621 mm | 631 mm | 639 mm |
| Reach | 411 mm | 441 mm | 471 mm | 501 mm |
| Top Tube Length | 546 mm | 578 mm | 611 mm | 643 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1172 mm | 1206 mm | 1239 mm | 1275 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 706 mm | 706 mm | 706 mm | 706 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mayhem 150 6-Star AXS completes the Spotbrand Mayhem model. 25 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Spot Mayhem 130 4-Star 2023 has a starting price of 5499$. Spot Mayhem 150 6-Star AXS 2023 on the other hand is the most expensive at 9199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9199$. If we compare this with the average Enduro bike cost we notice that the price is 155.6% more expensive.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13.47 kg (29.7 lbs), the Mayhem 150 6-Star AXS model is a bit lighter than average. In other words, this model is 5.94% lighter than the average Enduro bike.
Overview of components
Fork
The Mayhem 150 6-Star AXS comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Factory Float X rear shock model, which has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Mayhem 150 6-Star AXS 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Spot Mayhem 150 6-Star AXS bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
