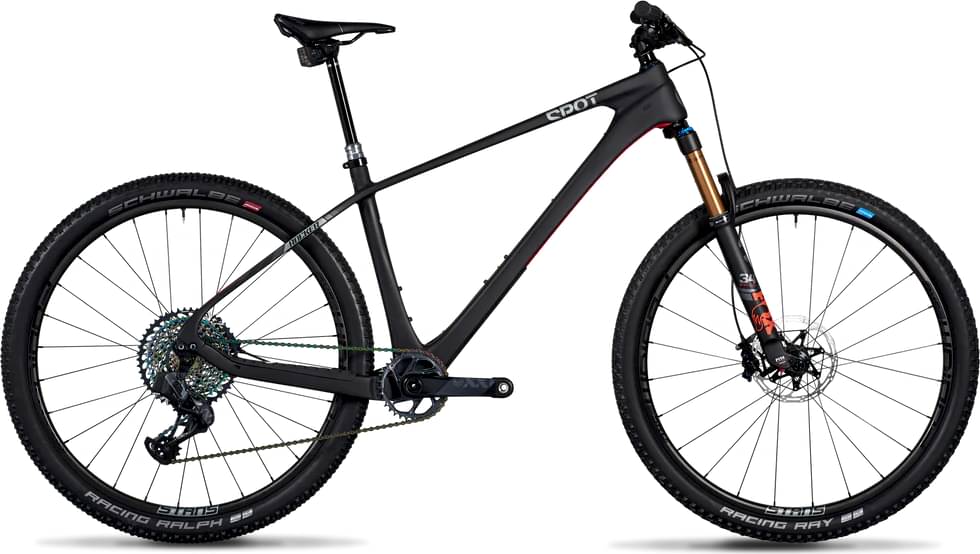

Spot Brand Spot Rocker Geared — 4-Star 2022
2022 Mountain
Estimate price |
4,199$
Weight | 10.93 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
29: Fox Performance 34 Float Step-Cast 29, 120mm travel, 3Pos-Adj, Grip, 44mm Rake, Boost 15QRx110. 27.5+: RockShox SID Select, 35, 120mm travel, Charger RL, 44mm Rake, Boost 15QRx110
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle Lunar 12-speed
Cassette
SRAM XG1275, 12-speed, 10-50t
Crank
SRAM Stylo Eagle, B148, DUB, 170mm, 32t
Bottom Bracket
SRAM DUB BSA MTB73
Chain
SRAM GX Eagle
Wheels
Rims
Front: 29: Stan's No Tubes Crest S2 29, Tubeless, CenterLock, Boost 15x110, 27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, CenterLock, Boost 15x110, Rear: 29: Stan's No Tubes Crest S2 29, Tubeless, XD, CenterLock Boost 12x148, 27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, XD, CenterLock Boost 12x148
Tires
Front: 29: Schwalbe Racing Ray 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8, Rear: 29: Schwalbe Racing Ray 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8
Brakes
Brakes
Front: SRAM Level TL, 180mm Centerline Rotor, CenterLock, Rear: SRAM Level TL, 180mm Centerline Rotor, CenterLock
Cockpit
Stem
Race Face Aeffect, 35mm x 60mm
Handlebar
Race Face Aeffect, 35mm, XL 780mm, LG 760mm, MD/SM 740mm, 20mm rise, Alloy
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.35 mm | 1.29 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 696 mm | 732 mm | 768 mm | 802 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 604 mm | 618 mm | 632 mm | 641 mm |
| Reach | 407 mm | 437 mm | 467 mm | 497 mm |
| Top Tube Length | 564 mm | 598 mm | 631 mm | 664 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1138 mm | 1174 mm | 1210 mm | 1244 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 738 mm | 738 mm | 779 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Rocker Geared — 4-Star is part of the Spotbrand Rocker model. Spot launched 17 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Spot Rocker SS — 4-Star 2022 is the most affordable bike of this model and has a price of 3999$. On the other hand, Spot Rocker Geared — 6-Star AXS 2022, is the most expensive and costs 7399$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Spot Rocker Geared — 4-Star price was 4199$. If we compare this with the average Trail bike cost we notice that the price is 52.03% more expensive.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Rocker Geared — 4-Star weighs 10.93 kg (24.1 lbs) and is much lighter than the average. In other words, this model is 18.76% lighter than the average Trail bike.
Rocker Geared — 4-Star components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the Rocker Geared — 4-Star bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Rocker Geared — 4-Star comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Spot model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
