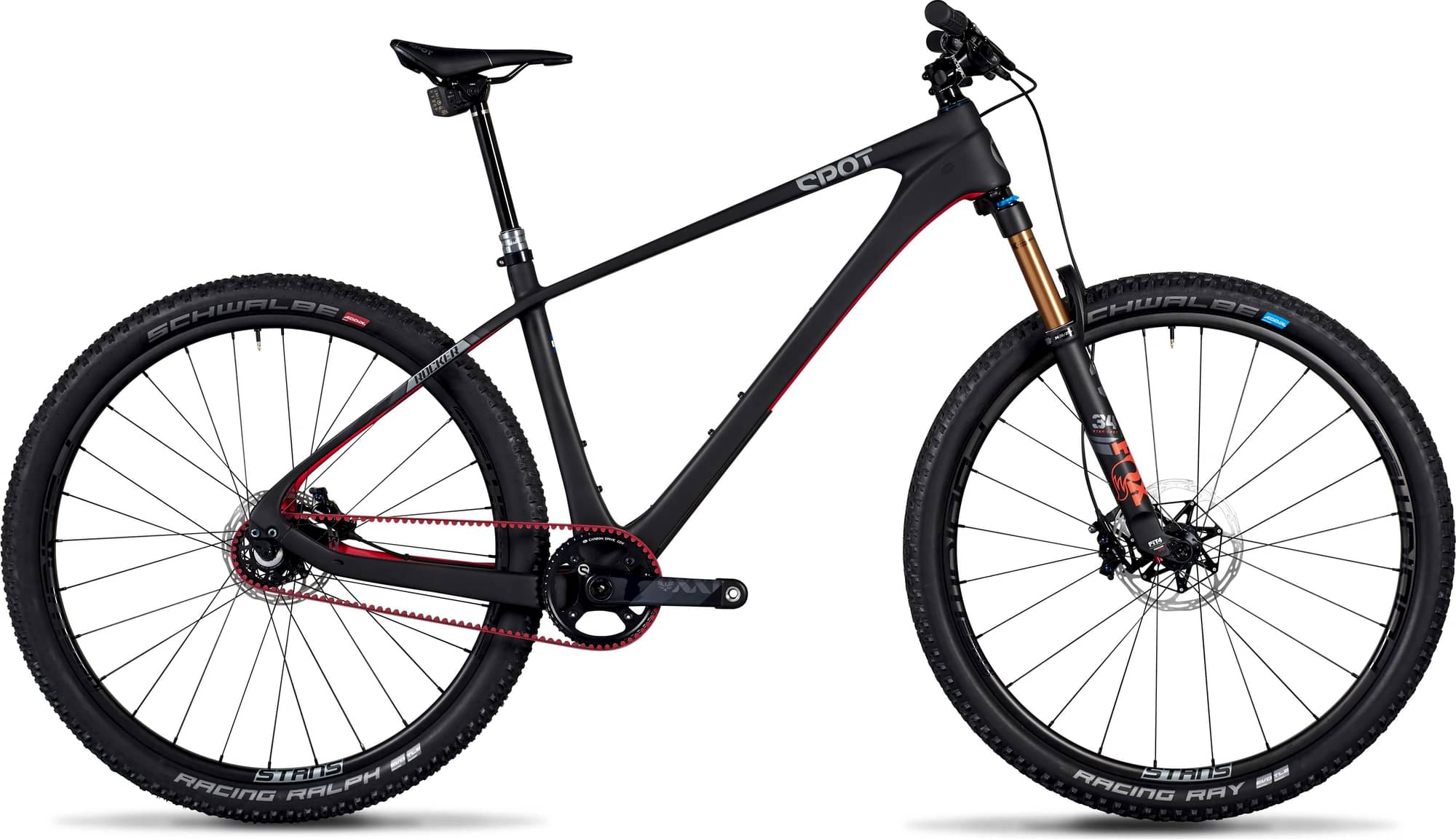

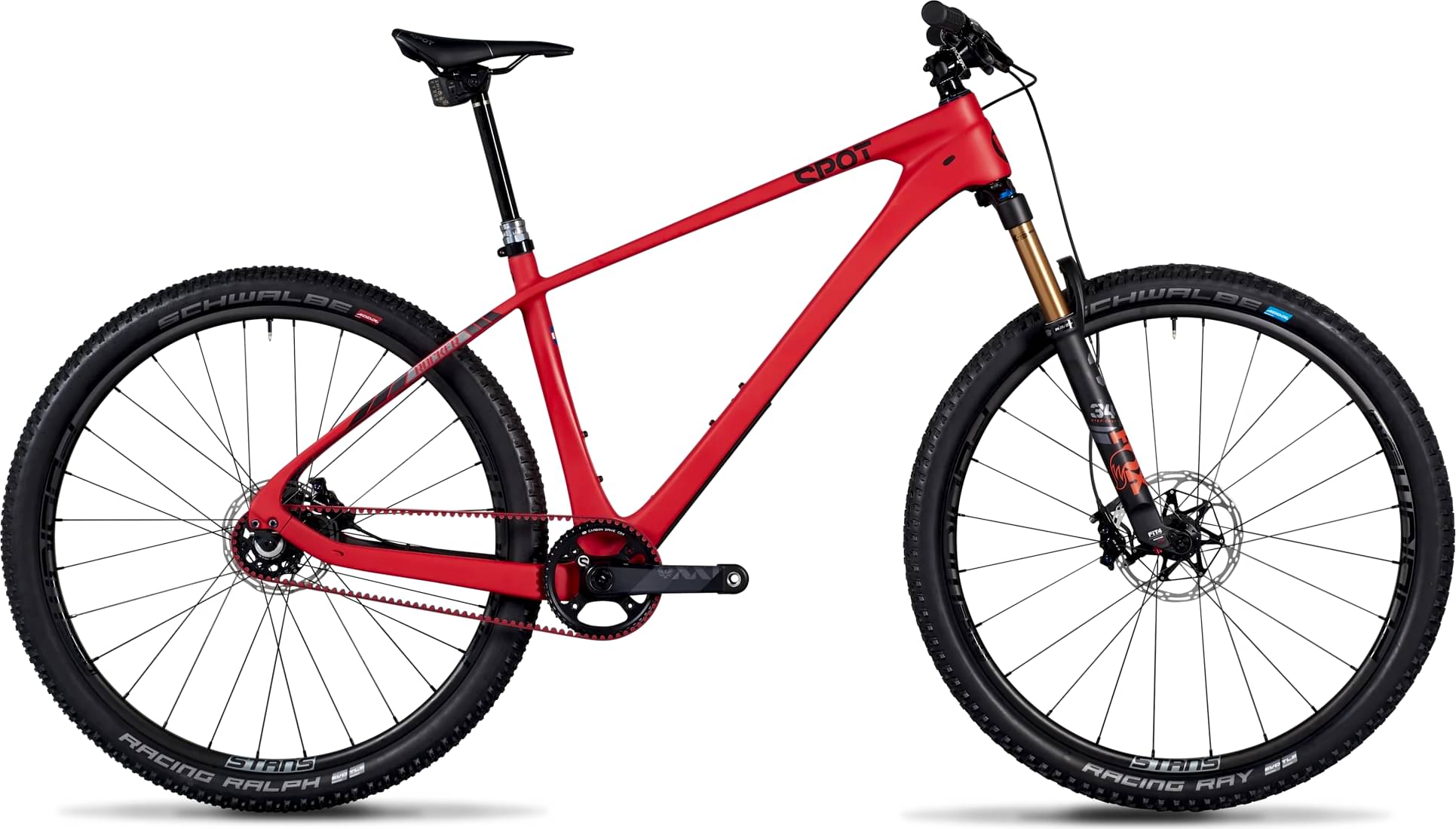

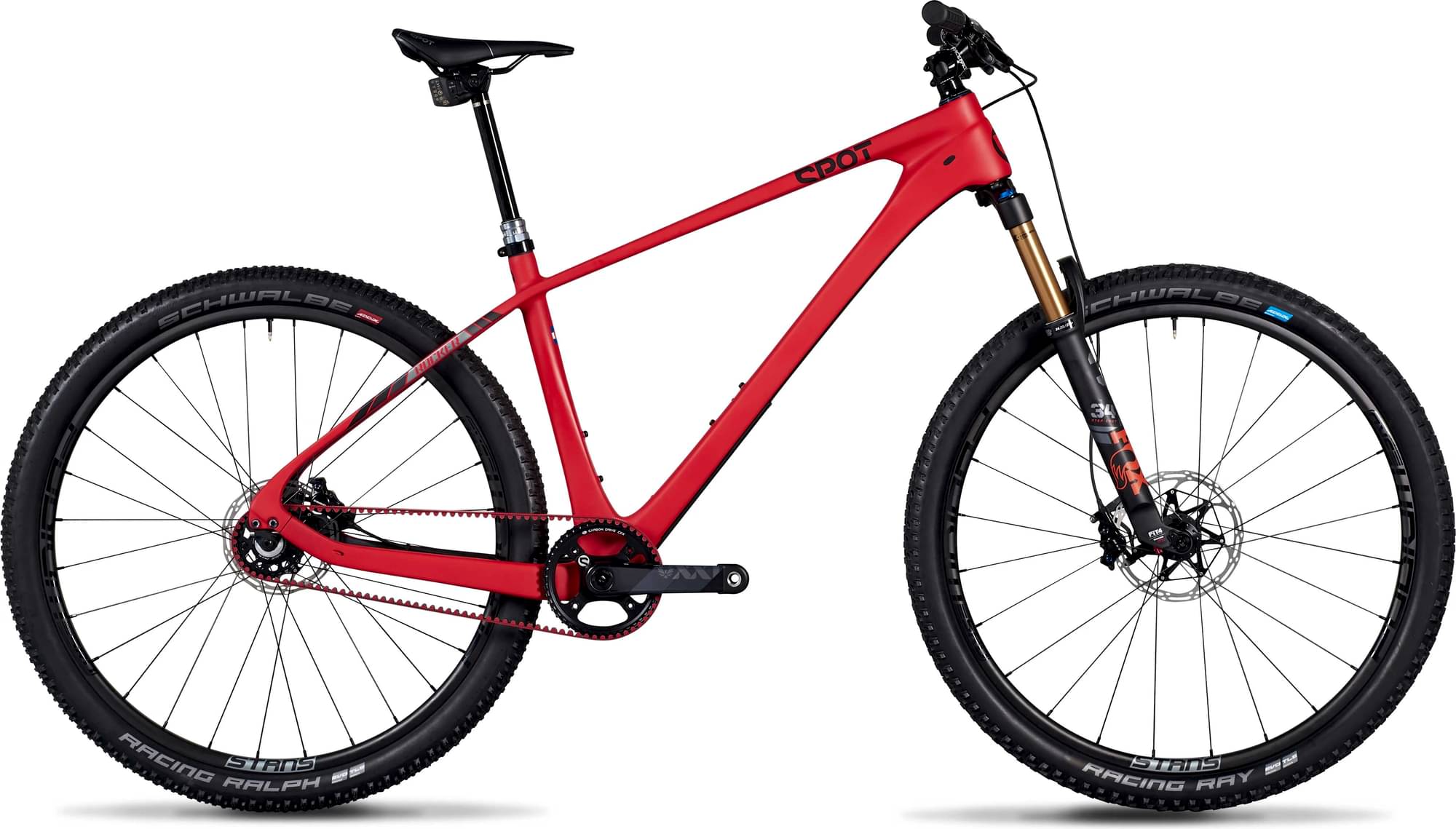

Spot Brand Spot Rocker SS 4-star 2023
2023 Mountain
Estimate price |
3,999$
Weight | 9.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

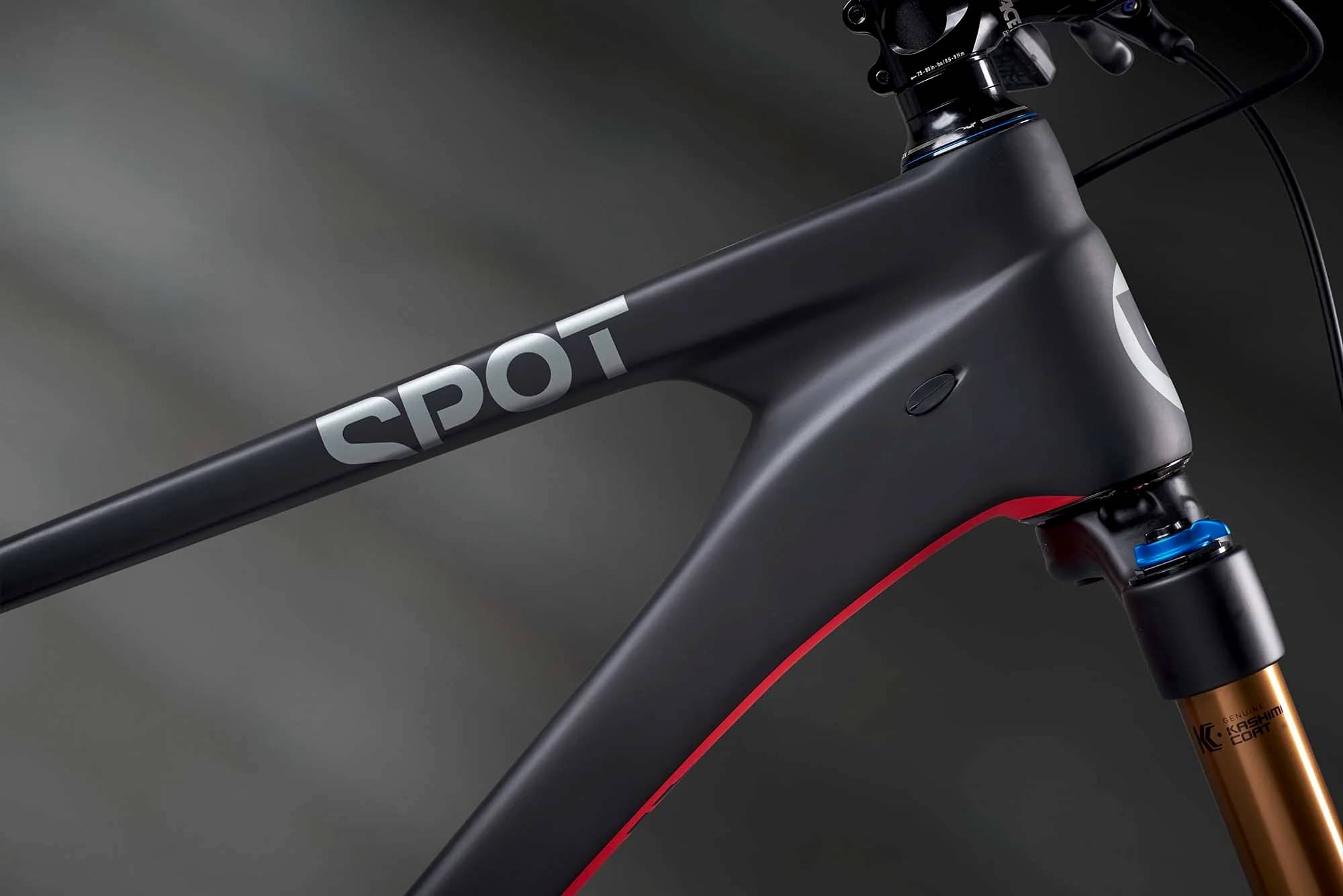

Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -

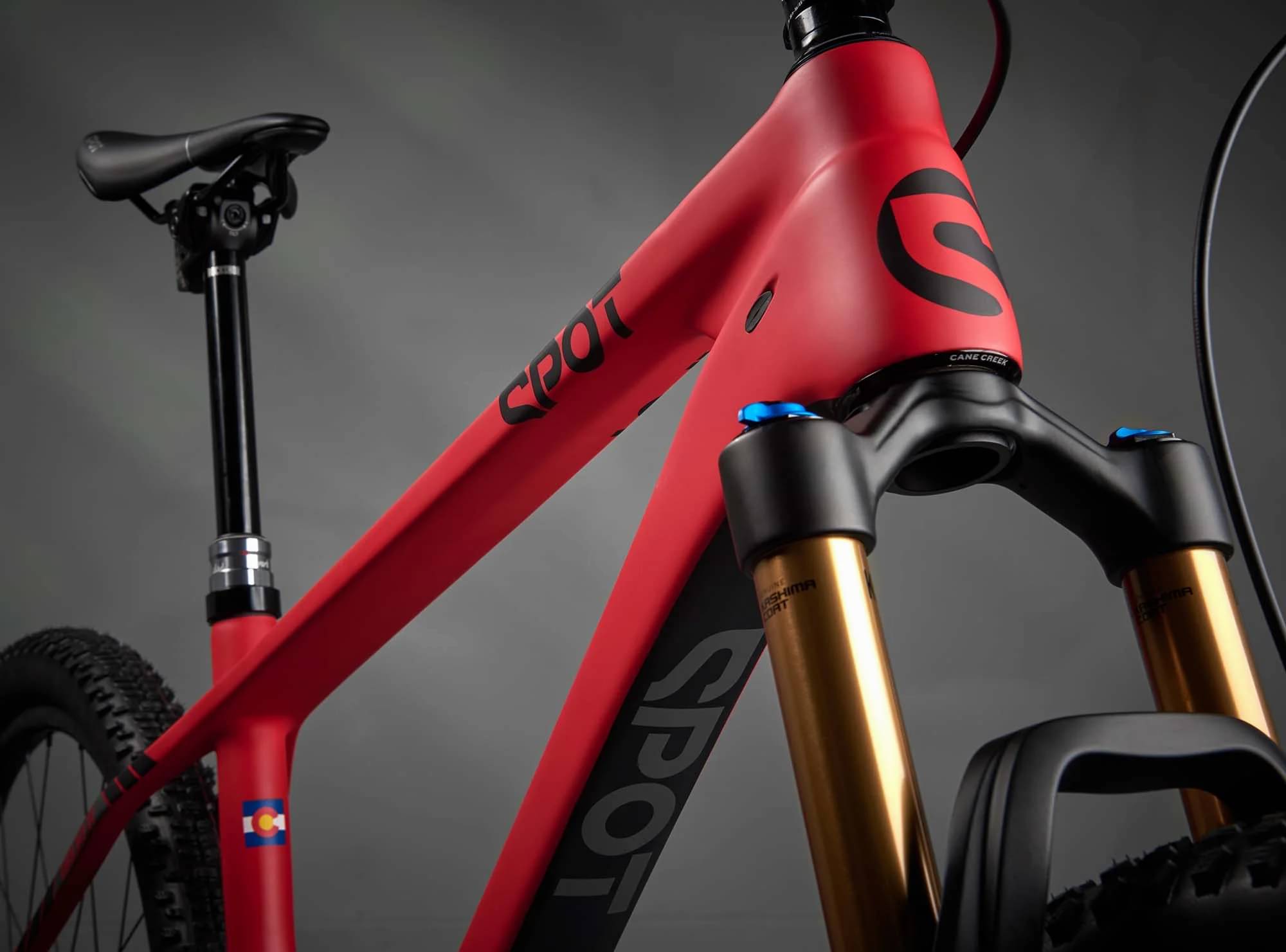

Fork Fox Performance Float 34
-
Groupset X1 -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
29: Fox Performance 34 Float Step-Cast 29, 120mm travel, 3Pos-Adj, Grip, 44mm Rake, Boost 15x110. 27.5+: RockShox SID Select, 35, 120mm travel, Charger RL, 44mm Rake, Boost 15x110
Drivetrain
Crank

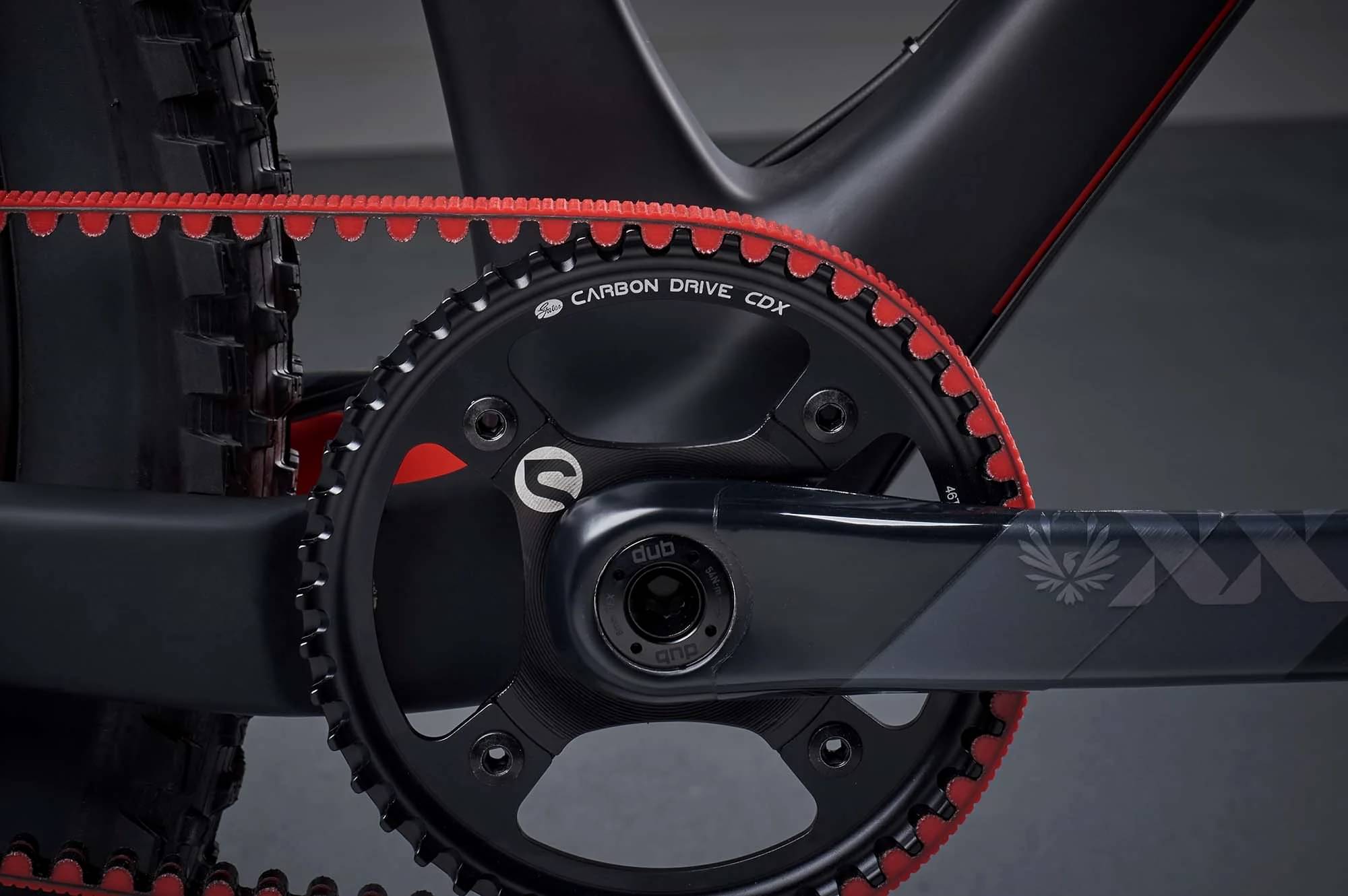

SRAM X1 Eagle, B148, DUB, 175mm, 46t
Bottom Bracket
SRAM DUB BSA MTB73
Wheels
Rims
Front: 29: Stan's No Tubes Crest S2 29, Tubeless, 6-Bolt, Boost 15x110, 27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, 6-Bolt, Boost 15x110, Rear: 29: Stan's No Tubes Crest S2 29, Tubeless, 9-spline, 6-Bolt, Boost 12x148, 27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, 9-spline, 6-Bolt, Boost 12x148
Tires
Front: 29: Schwalbe Wicked Will 29x2.4, 27.5+: Maxxis Rekon Plus 27.5x2.8, Rear: 29: Schwalbe Wicked Will 29x2.4, 27.5+: Maxxis Rekon Plus 27.5x2.8
Brakes
Brakes
Front: SRAM Level TL, 2-piston, 180mm Centerline Rotor, 6-Bolt, Rear: SRAM Level TL, 2-piston, 180mm Centerline Rotor, 6-Bolt
Cockpit
Stem
Race Face Aeffect, 35mm x 60mm
Handlebar
Race Face Aeffect, 35mm, XL 780mm, LG 760mm, MD/SM 740mm, 20mm rise, Alloy
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.48 mm | 1.41 mm | 1.41 mm | 1.35 mm | 1.35 mm | 1.29 mm | 1.29 mm |
| Bottom Bracket Height | 313 mm | 320 mm | 313 mm | 320 mm | 313 mm | 320 mm | 313 mm | 320 mm |
| Front Center | 696 mm | 696 mm | 732 mm | 732 mm | 768 mm | 768 mm | 802 mm | 802 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 91 mm | 99 mm | 91 mm | 99 mm | 91 mm | 99 mm | 91 mm | 99 mm |
| Stack | 604 mm | 604 mm | 618 mm | 618 mm | 632 mm | 632 mm | 641 mm | 641 mm |
| Reach | 407 mm | 407 mm | 437 mm | 437 mm | 467 mm | 467 mm | 497 mm | 497 mm |
| Top Tube Length | 564 mm | 564 mm | 598 mm | 598 mm | 631 mm | 631 mm | 664 mm | 664 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 410 mm | 410 mm | 460 mm | 460 mm | 510 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 105 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1138 mm | 1138 mm | 1174 mm | 1174 mm | 1210 mm | 1210 mm | 1244 mm | 1244 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 738 mm | 738 mm | 738 mm | 738 mm | 779 mm | 779 mm | 779 mm | 779 mm |
| Wheels | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
About this model
Rocker SS 4-star belongs to the Spotbrand Rocker model. 17 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Spot Rocker SS 4-star 2023 is the most economical model, with a starting price of 3999$. Spot Rocker Geared 6-star AXS 2023 on the other hand costs 7399$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Spot Rocker SS 4-star price was 3999$. Comparing this to the average Trail bike price, we see that the price is 44.79% higher.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, Rocker SS 4-star has a weight of 9.75 kg (21.5 lbs). In conclusion, the average Trail bike weighs 33.13% more than Rocker SS 4-star.
Overview of components
Fork
The Rocker SS 4-star comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Rocker SS 4-star bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Rocker SS 4-star comes in 8 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.

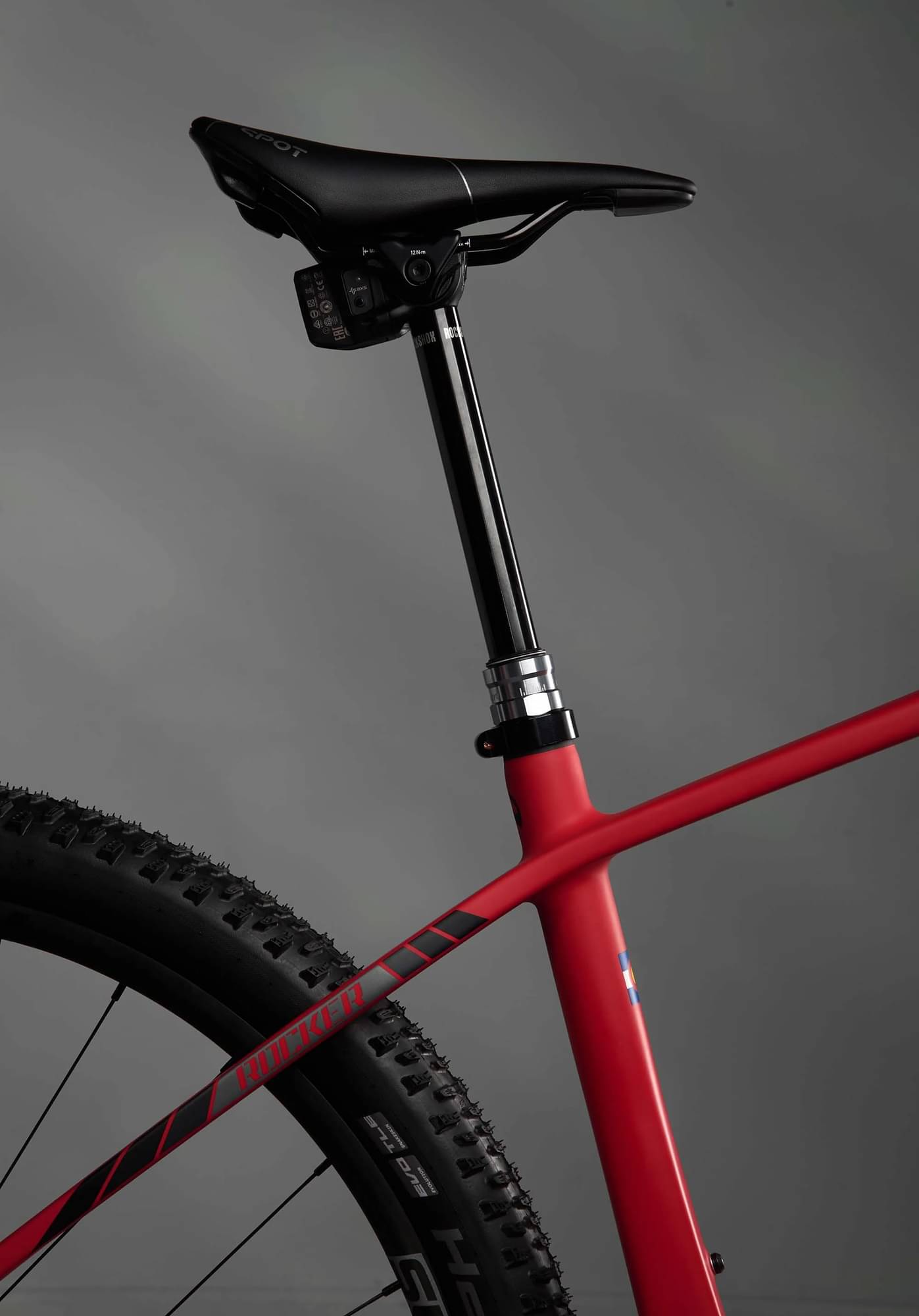

Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
