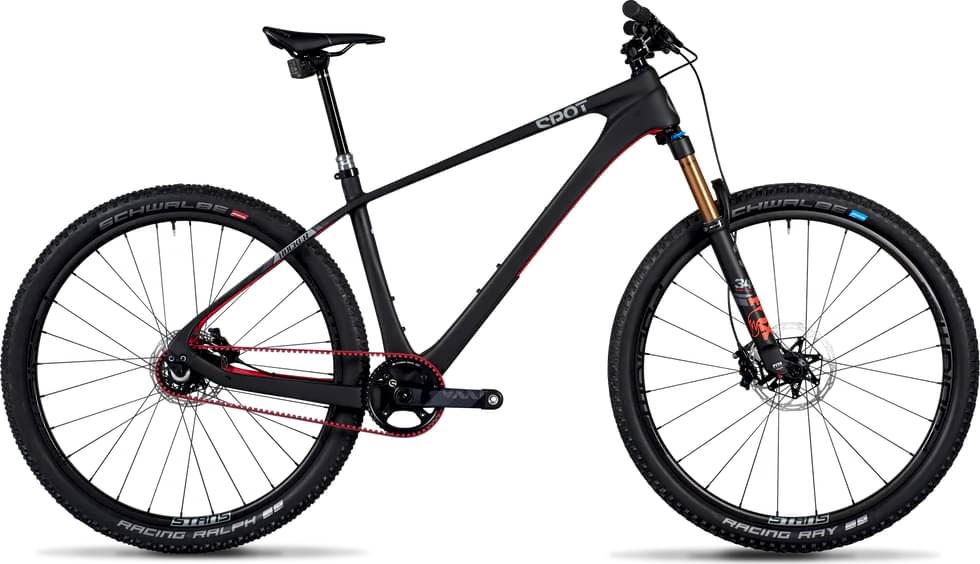

Spot Brand Spot Rocker SS — 5-Star 2022
2022 Mountain
Estimate price |
4,499$
Weight | 9.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset X1 -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
29: Fox Factory Float 34 Step-Cast 29, 120mm travel, 3Pos-Adj, FIT4, 44mm Rake, Boost 15QRx110. 27.5+: RockShox SID Ultimate, 35, 120mm travel, Charger Race Day, 44mm Rake, Boost 15QRx110
Drivetrain
Crank
SRAM X1 Eagle, B148, DUB, 175mm, 46t
Bottom Bracket
SRAM DUB BSA MTB73
Wheels
Rims
Front: 29: Stan's No Tubes Crest MK4 29, Tubeless, CenterLock, Boost 15x110, 27.5+: Stan's No Tubes Flow MK4 27.5+, Tubeless, CenterLock, Boost 15x110, Rear: 29: Stan's No Tubes Crest MK4 29, E-Sync, Tubeless, 9-spline, CenterLock, Boost 12x148, 27.5+: Stan's No Tubes Flow MK4 27.5+, E-Sync, Tubeless, 9-spline, CenterLock, Boost 12x148
Tires
Front: 29: Schwalbe Racing Ray 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8, Rear: 29: Schwalbe Racing Ray 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8
Brakes
Brakes
Front: SRAM Level TLM, 2-piston, 180mm Centerline rotor, CenterLock, Rear: SRAM Level TLM, 2-piston, 180mm Centerline rotor, CenterLock
Cockpit
Stem
Race Face Turbine R, 31.8mm x 60mm
Handlebar
OneUp, XL 780mm, LG 760mm, MD/SM 740mm, 25mm rise, 31.8mm Carbon
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.35 mm | 1.29 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 696 mm | 732 mm | 768 mm | 802 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 604 mm | 618 mm | 632 mm | 641 mm |
| Reach | 407 mm | 437 mm | 467 mm | 497 mm |
| Top Tube Length | 564 mm | 598 mm | 631 mm | 664 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1138 mm | 1174 mm | 1210 mm | 1244 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 738 mm | 738 mm | 779 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rocker SS — 5-Star belongs to the Spotbrand Rocker model. Spot launched 17 bikes of this model so far. You can easily view all of the Spotbrand Rocker bikes models from 2022, here.
Model range prices
The most economical model, the Spot Rocker SS — 4-Star 2022 has a starting price of 3999$. Spot Rocker Geared — 6-Star AXS 2022 on the other hand is the most expensive at 7399$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 4499$. Comparing this to the average Trail bike price, we see that the price is 62.89% more expensive.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 9.48 kg (20.9 lbs), Spot bike is much lighter than average. In other words, this model is 36.92% lighter than the average Trail bike.
Rocker SS — 5-Star components
Fork
Spot Rocker SS — 5-Star 2022 bike is equipped with the Fox Factory Float 34 fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Rocker SS — 5-Star bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Spot Rocker SS — 5-Star has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Spot Rocker SS — 5-Star includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
