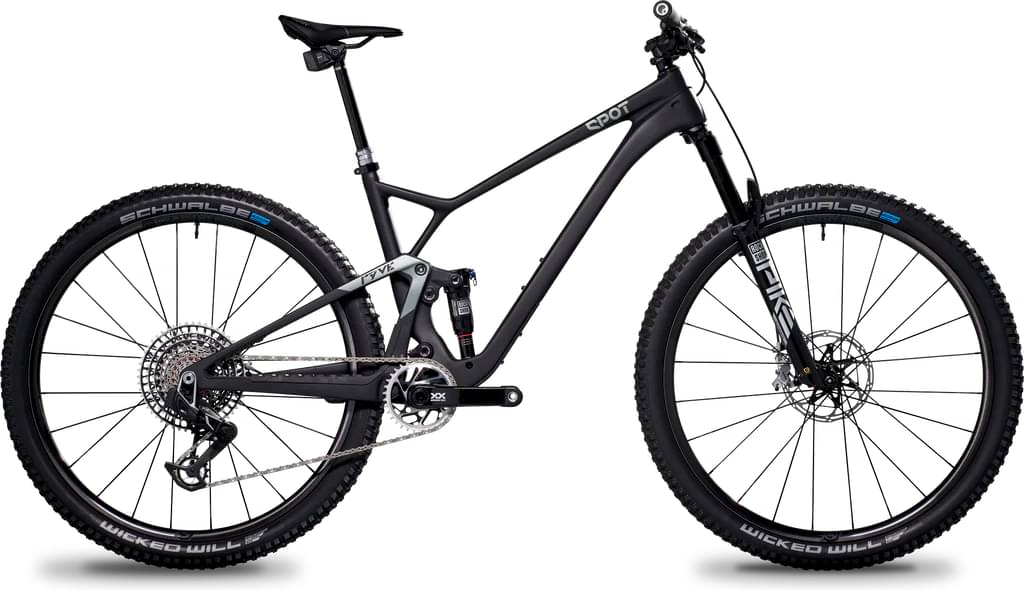

Spot Brand Spot Ryve 115 — 5-Star 2022
2022 Mountain
Estimate price |
6,799$
Weight | 12.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Factory Float 34 29, 130mm, Grip 2, HSC, LSC, HSR, LSR, 44mm Rake, Boost 15QRx110
Rear Shock
Fox Factory Float DPS EVOL LV, 3 Pos. Adj, Trunnion, 0.4 VS, 165x45
Drivetrain
Rear Derailleur
SRAM XO1 Eagle BLK, 12-speed
Shift Levers
SRAM GX Eagle 12-speed
Cassette
SRAM XG1275, 12-speed, 10-52t, BLK
Crank
SRAM X1 Carbon Eagle B148, DUB 170mm, 32t
Bottom Bracket
SRAM DUB BSA 73 mm threaded
Chain
SRAM GX Eagle
Wheels
Rims
Front: Stan's No Tubes Arch MK4 29, CenterLock, Boost 15x110, Rear: Stan's No Tubes Arch MK4 29, E-Sync, Tubeless, XD Driver, CenterLock, Boost 12x148
Tires
Front: Schwalbe Wicked Will 29x2.40, Rear: Schwalbe Wicked Will 29x2.40
Brakes
Brakes
Front: SRAM G2 RSC, 180mm Centerline Rotor, 6-bolt rotor, Rear: SRAM G2 RSC, 180mm Centerline Rotor, 6-bolt rotor
Cockpit
Stem
Race Face Turbine R, 35.0 mm x 50mm
Handlebar
OneUp Carbon, XL 800 mm, LG 780mm, MD/SM 760mm, 20 mm rise, 35.0 mm clamp, Sweep 8 deg back 5 deg up
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185 mm for XL and Large, 160 mm for Medium, 125 mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 717 mm | 746 mm | 780 mm | 813 mm |
| Rake | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 115 mm | 115 mm | 116 mm | 116 mm |
| Stack | 591 mm | 600 mm | 610 mm | 619 mm |
| Reach | 414 mm | 439 mm | 469 mm | 499 mm |
| Top Tube Length | 574 mm | 601 mm | 622 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 76 ° | 77.3 ° |
| Seat Tube Length | 360 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1146 mm | 1175 mm | 1209 mm | 1242 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 712 mm | 719 mm | 717 mm | 715 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ryve 115 — 5-Star completes the Spotbrand Ryve model. Spot released 15 bikes variations of this model so far. Take a sneak peek at all Spotbrand Ryve bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Spot Ryve 115 — 4-Star 2022 has a starting price of 5599$. Spot Ryve 115 — 6-Star AXS 2022 on the other hand is the most expensive at 8999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2022 and its price was 6799$. In conclusion, this bike price is 256.9% more expensive than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, Ryve 115 — 5-Star has a weight of 12.61 kg (27.8 lbs). To sum up, it’s 1.69% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
The Ryve 115 — 5-Star comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Factory Float DPS EVOL LV rear shock model, which has a travel of 115mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Ryve 115 — 5-Star are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Spot Ryve 115 — 5-Star is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Spot Ryve 115 — 5-Star includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
