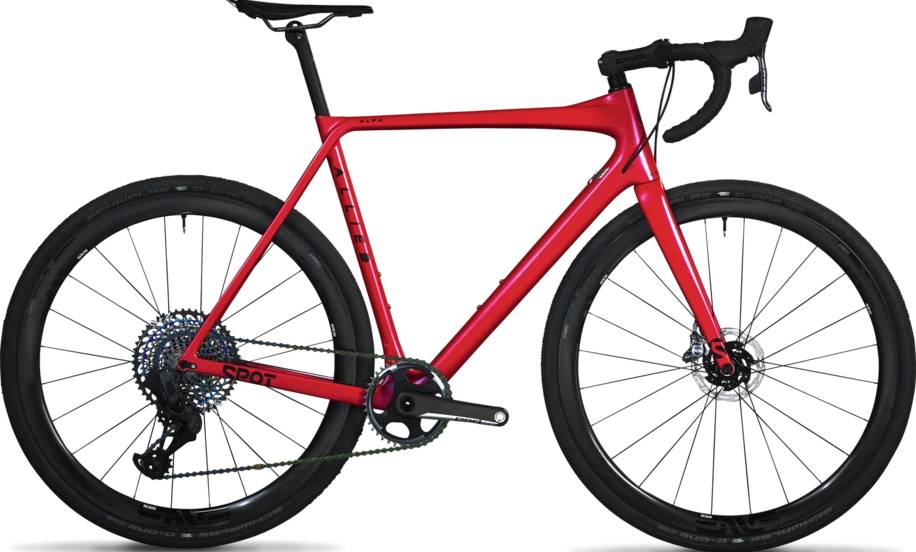

Spot Brand Spot X Allied Allroad 2.0 — 6-Star Red AXS 2020
2020 Road
Estimate price |
8,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset XX1 Eagle AXS, RED eTAP -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Allied INNEGRA, Tapered 1 ?" - 1 ¼", 44mm Rake, 375mm length
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM Red eTap AXS HRD hydraulic shift-brake, 140mm disc
Cassette
SRAM XG1299, 12-speed, Rainbow, 10-50t
Crank
SRAM Red 1, 24mm, 172.5mm, 42t
Bottom Bracket
SRAM DUB 68mm, BSA 68mm English Threaded
Chain
SRAM XX1 Eagle, Rainbow
Wheels
Rims
Enve SES 3.4, Clincher, Tubeless, Disc, Centerlock, 12x100 F, 12x142 R
Tires
Schwalbe G-One, 700x35c, Tubeless
Cockpit
Stem
Enve Carbon Road 100mm, 31.8mm clamp
Handlebar
Enve Carbon Road Standard 42cm
Headset
Allied Internal 1 ?" - 1 ¼", 45 x 45
Seat
Saddle
Fizik Arione
Seatpost
Enve Carbon 300mm, 20mm offset, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.43 mm | 1.467 mm | 1.49 mm | 1.532 mm | 1.534 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm | 333 mm | 333 mm | 333 mm |
| Front Center | 23 mm | 23 mm | 23 mm | 24 mm | 24 mm | 25 mm |
| Rake | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Trail | 108 mm | 102 mm | 102 mm | 100 mm | 98 mm | 96 mm |
| Seat Tube Angle | 75.3 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.3 ° |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73.3 ° | 73.5 ° | 73.8 ° |
| Wheelbase | 38 mm | 38 mm | 39 mm | 39 mm | 40 mm | 40 mm |
| Bottom Bracket Drop | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Spot X Allied Allroad 2.0 — 6-Star Red AXS completes the Spotbrand Spot model. There are 2 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Spot Brand Spot X Allied Allroad 2.0 — 5-Star Force AXS 2020 is the most affordable bike of this model and has a price of 5999$. On the other hand, Spot Brand Spot X Allied Allroad 2.0 — 6-Star Red AXS 2020, is the most expensive and costs 8999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8999$. Doing a quick comparison, we notice that Spot X Allied Allroad 2.0 — 6-Star Red AXS price is 283.59% more expensive than the average cost of an Endurance bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Spot X Allied Allroad 2.0 — 6-Star Red AXS bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Spot Brand Spot X Allied Allroad 2.0 — 6-Star Red AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Spot X Allied Allroad 2.0 — 6-Star Red AXS comes in 6 sizes, that range from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
