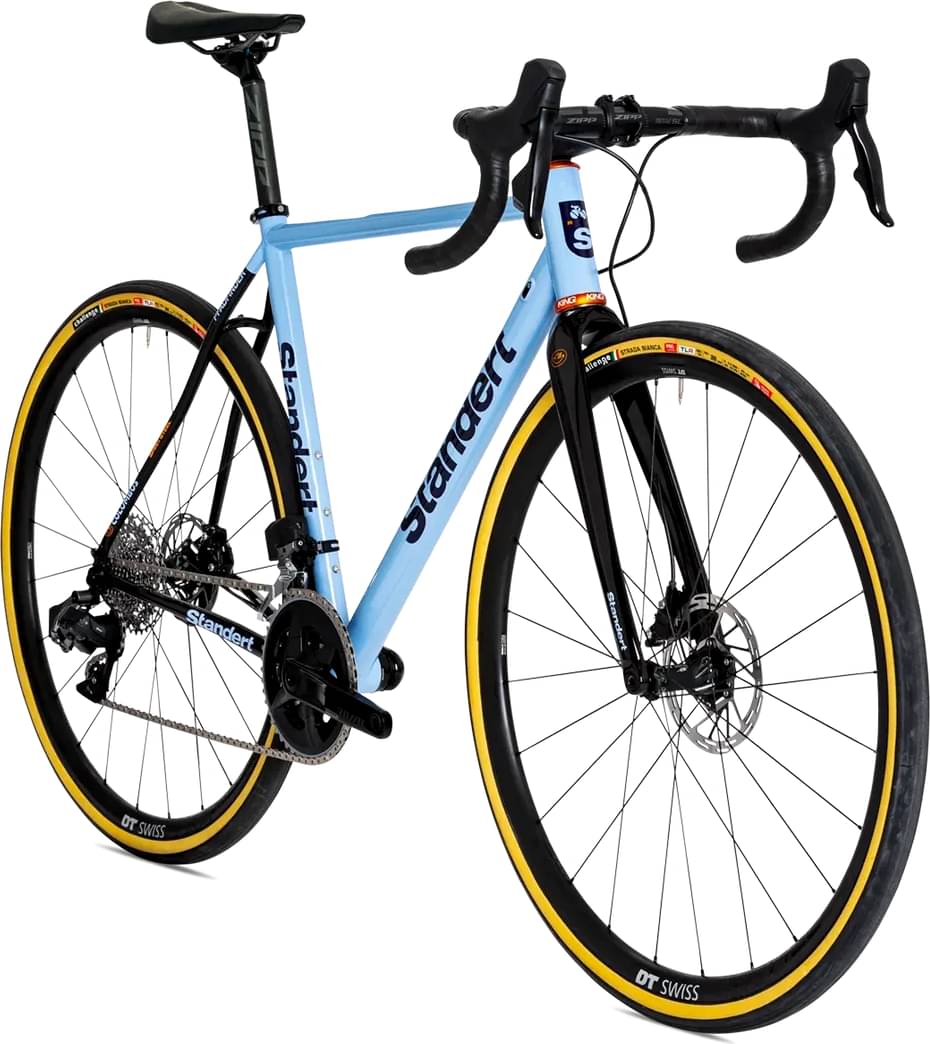

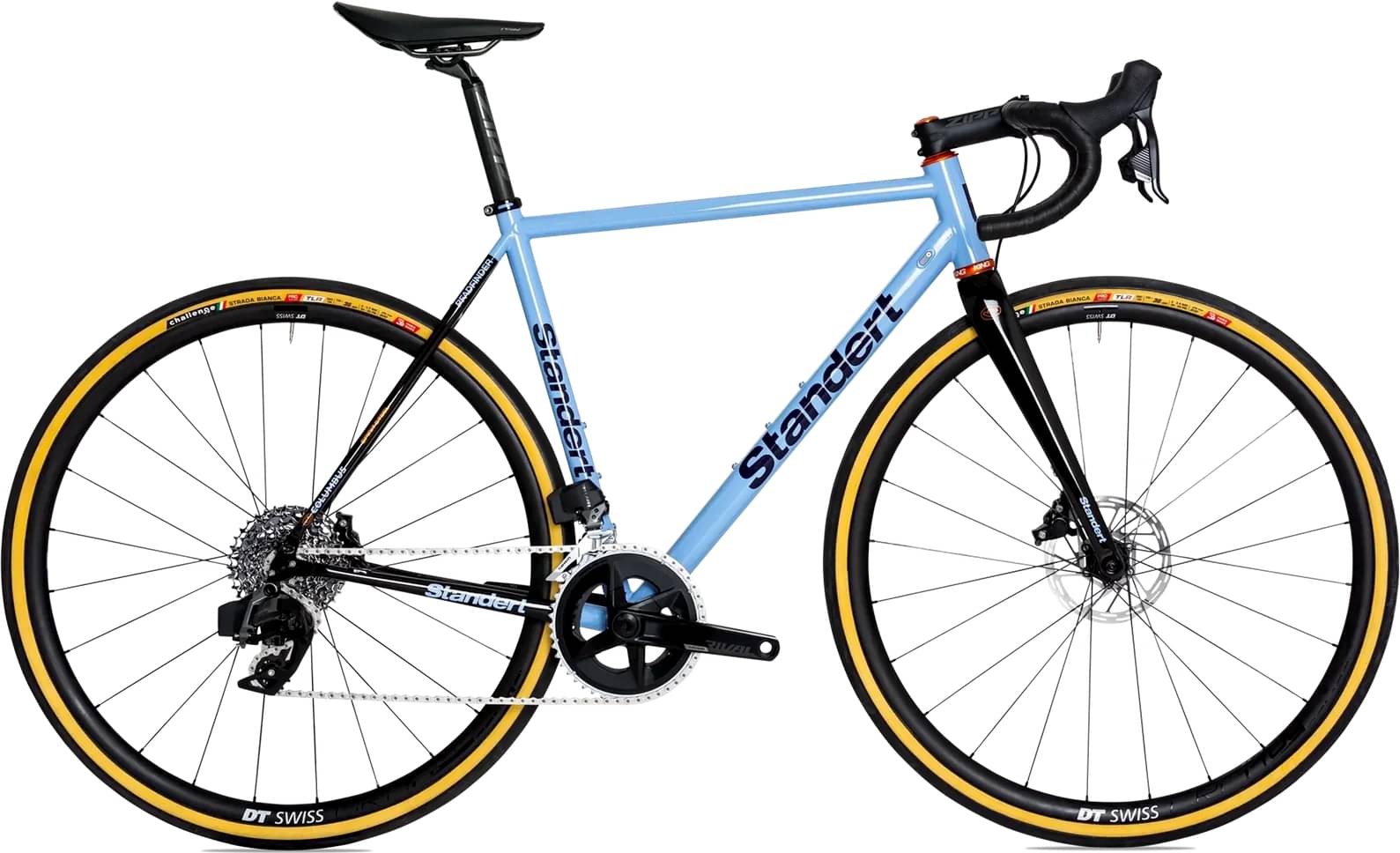

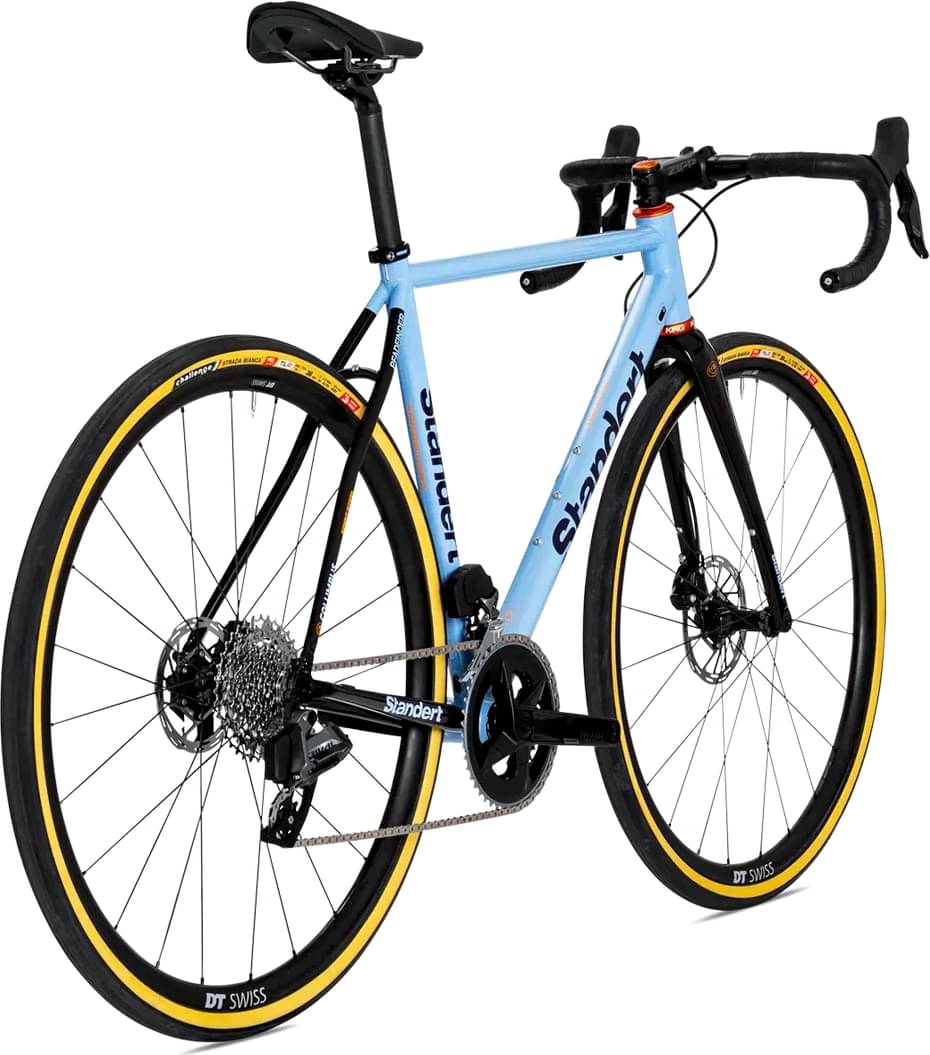

Standert Pfadfinder LTD Edition IV Shimano 105 Di2 12s 2023
2023 Road
Estimate price |
5,734$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
150cm - 163cm
50cm
158cm - 170cm
52cm
166cm - 177cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 192cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Standert Pfadfinder
Suspension Fork
Columbus Futura Gravel 1 1/8" - 1 1/4" tapered full carbon
Drivetrain
Rear Derailleur
Shimano 105 Di2 R7150
Front Derailleur
Shimano 105 Di2 R7150
Cassette
Shimamo R7100 1134
Crank
Shimano 105 R7100 5034
Bottom Bracket
First T47
Chain
Shimano R7100
Wheels
Tires
Challenge Strada Bianca TLR 700x36
Brakes
Brakes
Shimano 105 Di2 R7170
Cockpit
Stem
Zipp Service Course SL
Handlebar
Zipp Service Course SL
Headset
Chris King Inset 8
Seat
Saddle
Fizik Tempo Argo R3 150mm | +€0.00
Seatpost
Zipp Service Course SL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.48 mm | 1.48 mm |
| Stack | 515 mm | 525 mm | 535 mm | 550 mm | 570 mm | 585 mm | 600 mm |
| Reach | 363 mm | 365 mm | 370 mm | 378 mm | 385 mm | 395 mm | 406 mm |
| Top Tube Length | 495 mm | 509 mm | 521 mm | 538 mm | 556 mm | 570 mm | 585 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 495 mm | 510 mm | 530 mm | 550 mm | 570 mm | 585 mm |
| Head Tube Angle | 71.25 ° | 71.5 ° | 71.5 ° | 72.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 98 mm | 108 mm | 118 mm | 131 mm | 148 mm | 164 mm | 177 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 974 mm | 978 mm | 986 mm | 992 mm | 995 mm | 1010 mm | 1025 mm |
| Standover Height | 738 mm | 753 mm | 762 mm | 784 mm | 803 mm | 814 mm | 829 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 158 cm | 166 cm | 170 cm | 175 cm | 182 cm | 188 cm |
| Rider Max Height | 163 cm | 170 cm | 177 cm | 180 cm | 185 cm | 192 cm | 198 cm |
About this model
Pfadfinder LTD Edition IV Shimano 105 Di2 12s belongs to the Standert Pfadfinder model. 26 bikes variations carry this model name so far. You can easily view all of the Standert Pfadfinder bikes models from 2023, here.
Model range prices
Standert Pfadfinder Parmigiana di Melanzane Sram Rival 1 Mechanical 2023 is the most affordable bike of this model and has a price of 4565$. On the other hand, Standert Pfadfinder LTD Edition IV Shimano Ultegra Di2 12s 2023, is the most expensive and costs 6157$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Standert released this model in 2023, its price was 5308$. Doing a quick comparison, we notice that Pfadfinder LTD Edition IV Shimano 105 Di2 12s price is 126.26% more expensive than the average cost of an Endurance bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Pfadfinder LTD Edition IV Shimano 105 Di2 12s model has 700c wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Standert Pfadfinder LTD Edition IV Shimano 105 Di2 12s has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Pfadfinder LTD Edition IV Shimano 105 Di2 12s comes in 7 sizes, that range from 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
