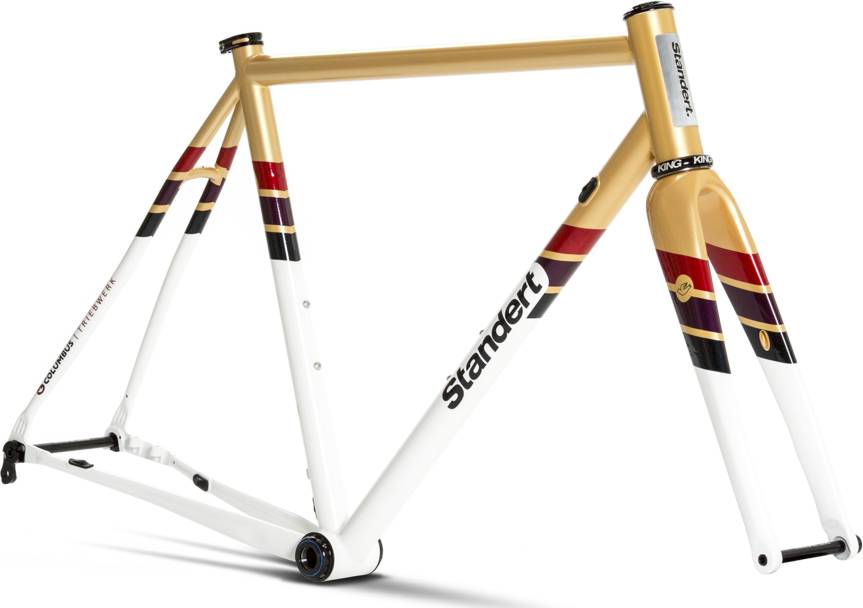

Standert Triebwerk DISC — Frameset — Limited Edition 2019
2019 Road
Estimate price |
1,977$
Weight | 1.83 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Standert Triebwerk Mach3 Disc
Suspension Fork
Columbus Futura Disc 1 1/8" - 1 1/2" tapered
Drivetrain
Bottom Bracket
Rideworks T47
Cockpit
Headset
Chris King Inset 7
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.43 mm | 1.44 mm | 1.45 mm | 1.46 mm | 1.47 mm |
| Stack | 515 mm | 525 mm | 535 mm | 550 mm | 565 mm | 580 mm | 595 mm |
| Reach | 365 mm | 370 mm | 375 mm | 382 mm | 390 mm | 397 mm | 405 mm |
| Top Tube Length | 493 mm | 504 mm | 521 mm | 537 mm | 554 mm | 565 mm | 577 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 490 mm | 515 mm | 540 mm | 555 mm | 570 mm | 575 mm |
| Head Tube Angle | 71.25 ° | 72 ° | 72.5 ° | 73 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 111 mm | 119 mm | 127 mm | 142 mm | 156 mm | 172 mm | 188 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 969 mm | 971 mm | 974 mm | 981 mm | 991 mm | 1003 mm | 1016 mm |
| Standover Height | 739 mm | 748 mm | 765 mm | 779 mm | 798 mm | 813 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Triebwerk DISC — Frameset — Limited Edition is a Standert Triebwerk model. There are 41 frames that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Standert Triebwerk DISC — Frameset 2019 is the cheapest frame model and costs 1698$. Standert Triebwerk Mach3 — Frameset — Limited Edition 2019 is the most expensive one and costs 1805$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance frames average price
If you want to purchase a solid Endurance frame, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on an Endurance frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
This frame was released in 2019 and its price was 1804$. Comparing the average cost of an Endurance frame to this one, you will see that Triebwerk DISC — Frameset — Limited Edition price is 5.6% smaller.
Endurance frames average weight
Endurance frames have an average weight of 1.64 kg (3.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 1.83 kg (4.03 lbs), the Triebwerk DISC — Frameset — Limited Edition model is considerably heavier than average. In conclusion, the average Endurance frame weighs 11.59% less than Triebwerk DISC — Frameset — Limited Edition.
Overview of components
Fork material
When it comes to the fork, this frame has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
