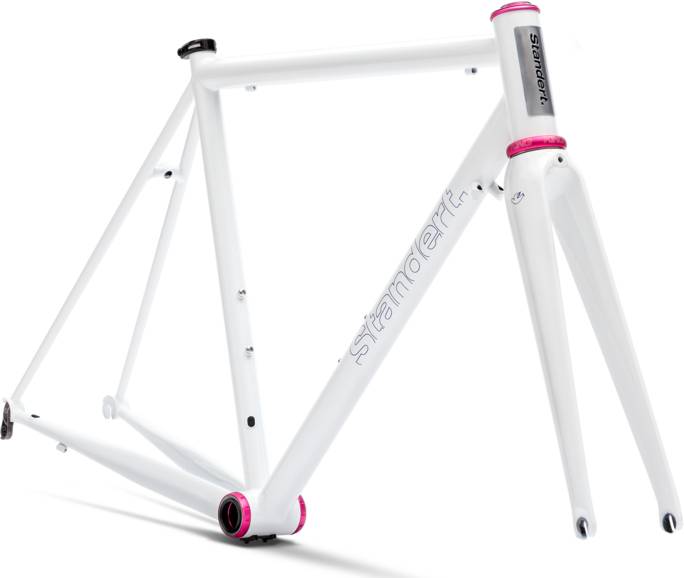

Standert Triebwerk Mach3 — Frameset 2019
2019 Road
Estimate price |
1,861$
Weight | 1.69 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Standert Triebwerk Mach3
Suspension Fork
Columbus Futura Caliper
Drivetrain
Bottom Bracket
Chris King Threadfit T47
Cockpit
Headset
Chris King Inset 7
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.46 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 578 mm | 574 mm | 585 mm | 600 mm | 610 mm |
| Rake | 45 mm | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 63 mm | 58 mm | 55 mm | 53 mm | 50 mm |
| Stack | 525 mm | 538 mm | 563 mm | 583 mm | 593 mm |
| Reach | 376 mm | 378 mm | 386 mm | 395 mm | 407 mm |
| Top Tube Length | 528 mm | 538 mm | 553 mm | 568 mm | 583 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 500 mm | 535 mm | 560 mm | 580 mm | 590 mm |
| Head Tube Angle | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 118 mm | 129 mm | 153 mm | 174 mm | 180 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 976 mm | 972 mm | 983 mm | 998 mm | 1008 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 753 mm | 776 mm | 800 mm | 820 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Triebwerk Mach3 — Frameset belongs to the Standert Triebwerk model. There are 41 frames that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Standert Triebwerk DISC — Frameset 2019 is the cheapest frame model and costs 1698$. Standert Triebwerk Mach3 — Frameset — Limited Edition 2019 is the most expensive one and costs 1805$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance frames
If you want an acceptable Endurance frame you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on an Endurance frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Standert Triebwerk Mach3 — Frameset price was 1699$. Comparing this to the average Endurance frame price, we see that the price is 12.12% lower.
Average weight for Endurance frames
Endurance frames have an average weight of 1.64 kg (3.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, Triebwerk Mach3 — Frameset has a weight of 1.69 kg (3.73 lbs). To sum up, it’s 3.05% heavier than the average weight of Endurance frames.
Triebwerk Mach3 — Frameset components
Fork material
When it comes to the fork, this frame has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the frame.
Sizes
Standert Triebwerk Mach3 — Frameset frame has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
