Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Pike
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
RockShox Pike (FOX and Ohlins upgrades available)
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT, 11-speed, with clutch
Front Derailleur
N/A
Shift Levers
Shimano XT, 11-speed
Cassette
Shimano XT, 11-speed, 11-46 tooth
Crank
Shimano XT
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Hope Tech Enduro Pro 4
Rear Hub
Hope Tech Enduro Pro 4
Rims
Hope Tech Enduro Pro 4
Tires
Vee Tire Co.
Brakes
Brakes
Shimano XT hydraulic disc, 160mm rear rotor, 180mm front rotor
Brake Levers
Shimano XT hydraulic disc, iSpec-I
Cockpit
Stem
Stanton Super Series, 50mm length
Handlebar
Stanton Super Series, 800mm width
Grips
Stanton Super Series lock-on
Headset
Stanton Super Series
Seat
Saddle
Stanton Rigel
Seatpost
Rockshox Reverb Stealth, 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 19" | 17" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.4 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm |
| Front Center | 713 mm | 689 mm | 732 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Trail | 114 mm | 114 mm | 114 mm |
| Stack | 607 mm | 588 mm | 625 mm |
| Reach | 435 mm | 419 mm | 446 mm |
| Top Tube Length | 319.5 mm | 597 mm | 637 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 482 mm | 430 mm | 533 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1140 mm | 1116 mm | 1159 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 29" | 29" | 29" |
Model Overview

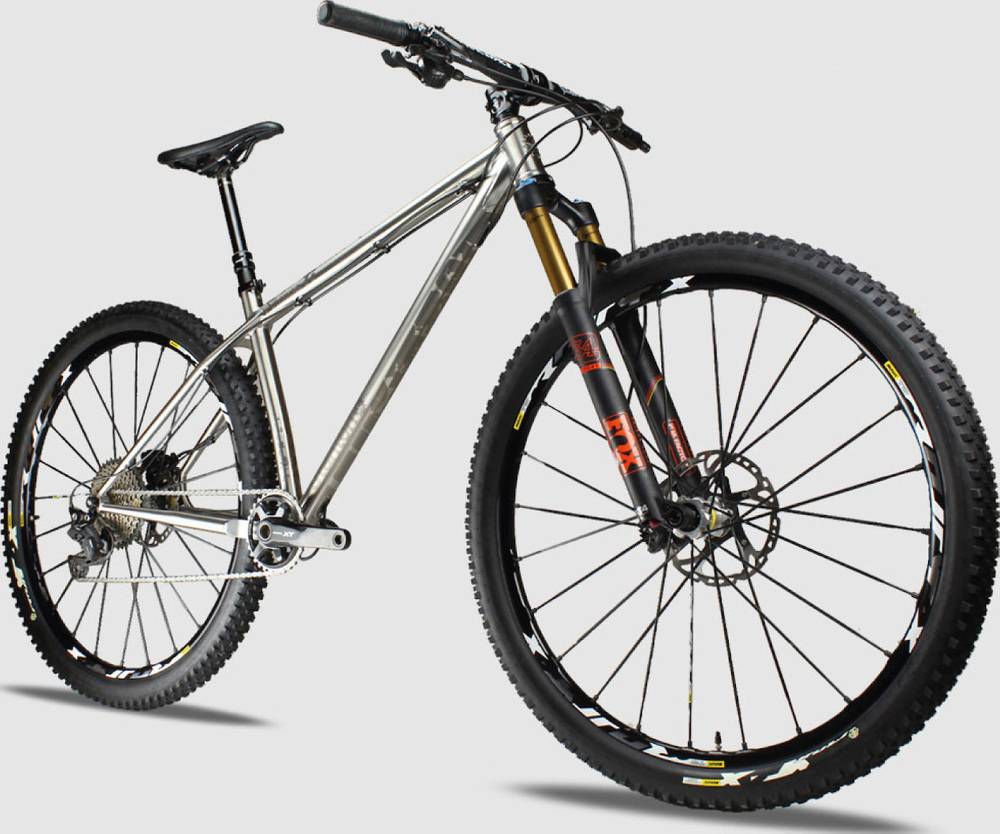

Sherpa Ti Elite belongs to the Stanton Sherpa model. Stanton launched 5 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The RockShox Pike is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Sherpa Ti Elite 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Stanton Sherpa Ti Elite has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Stanton Sherpa Ti Elite comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
