Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Pike
-
Groupset XT -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

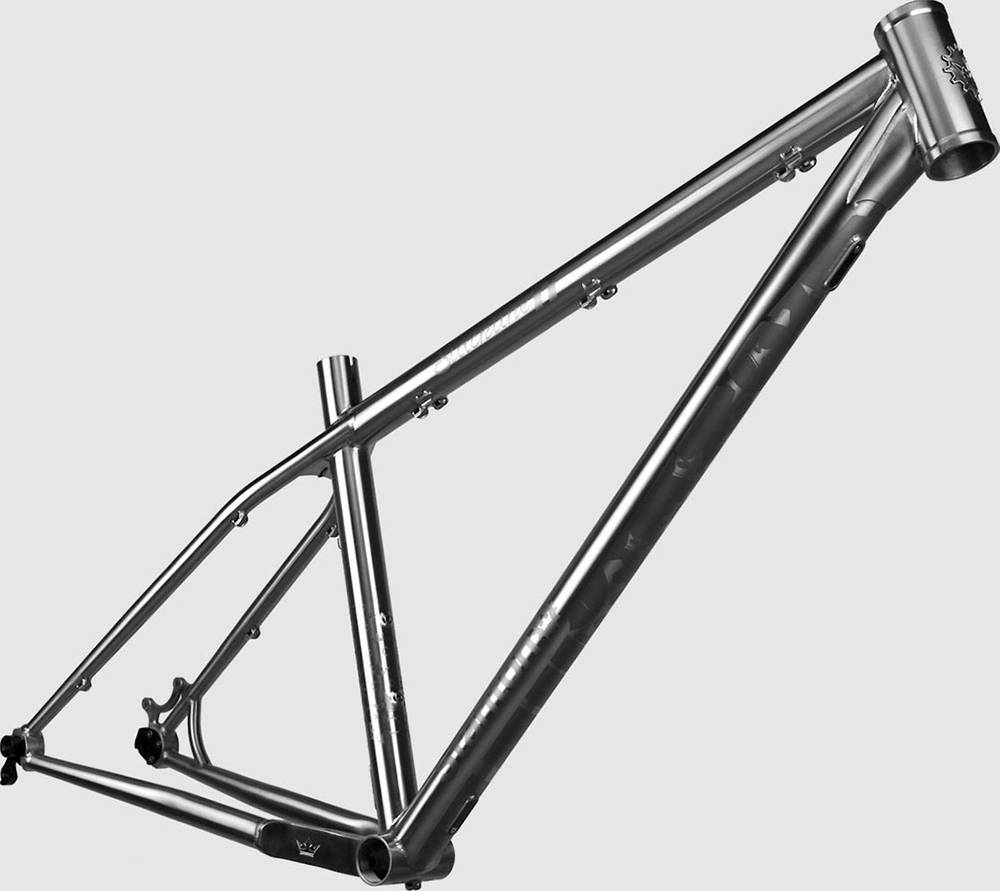

Frame
Titanium
Suspension Fork
RockShox Pike (FOX and Ohlins upgrades available)
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT, 11-speed, with clutch
Front Derailleur
N/A
Shift Levers
Shimano XT, 11-speed
Cassette
Shimano XT, 11-speed, 11-46 tooth
Crank
Shimano XT
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Hope Tech Enduro Pro 4
Rear Hub
Hope Tech Enduro Pro 4
Rims
Hope Tech Enduro Pro 4
Tires
Vee Tire Co.
Brakes
Brakes
Shimano XT hydraulic disc, 160mm rear rotor, 180mm front rotor
Brake Levers
Shimano XT hydraulic disc
Cockpit
Stem
Stanton Super Series
Handlebar
Stanton Super Series, 800mm width
Grips
Stanton Super Series lock-on
Headset
Stanton Super Series
Seat
Saddle
Stanton Rigel
Seatpost
Rockshox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16.5" | 18" | 19.5" |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.38 mm | 1.37 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 696 mm | 718 mm | 740 mm |
| Rake | 40 mm | 39 mm | 37 mm |
| Trail | 107 mm | 109 mm | 111 mm |
| Stack | 588 mm | 607 mm | 625 mm |
| Reach | 426 mm | 440 mm | 457 mm |
| Top Tube Length | 598 mm | 618 mm | 638 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 419 mm | 457 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1120 mm | 1142 mm | 1164 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm |
| Wheels | 27" | 27" | 27" |
About this model
Slackline Ti Elite is a Stanton Slackline model. Stanton released 5 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Slackline Ti Elite components
Fork
The fork installed on this bike is the RockShox Pike model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Slackline Ti Elite bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Slackline Ti Elite has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
The Stanton model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
