Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 140mm -
Fork Öhlins
-
Groupset XT -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Öhlins RFX
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore XT, 12-speed
Cassette
Shimano Deore XT, 12-speed, 10-51 tooth
Crank
Shimano Deore XT
Bottom Bracket
73mm
Chain
Shimano Deore XT, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Hope Tech Fortus 30 wheelset
Rear Hub
Hope Tech Fortus 30 wheelset
Rims
Hope Tech Fortus 30 wheelset
Spokes
Hope Tech Fortus 30 wheelset
Tires
Front: WTB Vigilante, 29" x 2.5", Rear: WTB Trail Boss, 29" x 2.4"
Brakes
Brakes
Shimano Deore XT, 2-piston
Brake Levers
Shimano Deore XT
Cockpit
Stem
Stanton
Handlebar
Stanton
Grips
Stanton
Headset
Stanton
Seat
Saddle
Stanton
Seatpost
RockShox Reverb Stealth dropper, 175mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 304 mm | 304 mm |
| Front Center | 784 mm | 817 mm |
| Rake | 74 mm | 65 mm |
| Trail | 89 mm | 99 mm |
| Stack | 613 mm | 643 mm |
| Reach | 456 mm | 486 mm |
| Top Tube Length | 608 mm | 637 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 458 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 120 mm |
| Chainstay Length | 431 mm | 431 mm |
| Wheelbase | 1206 mm | 1239 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Wheels | 29" | 29" |
About this model

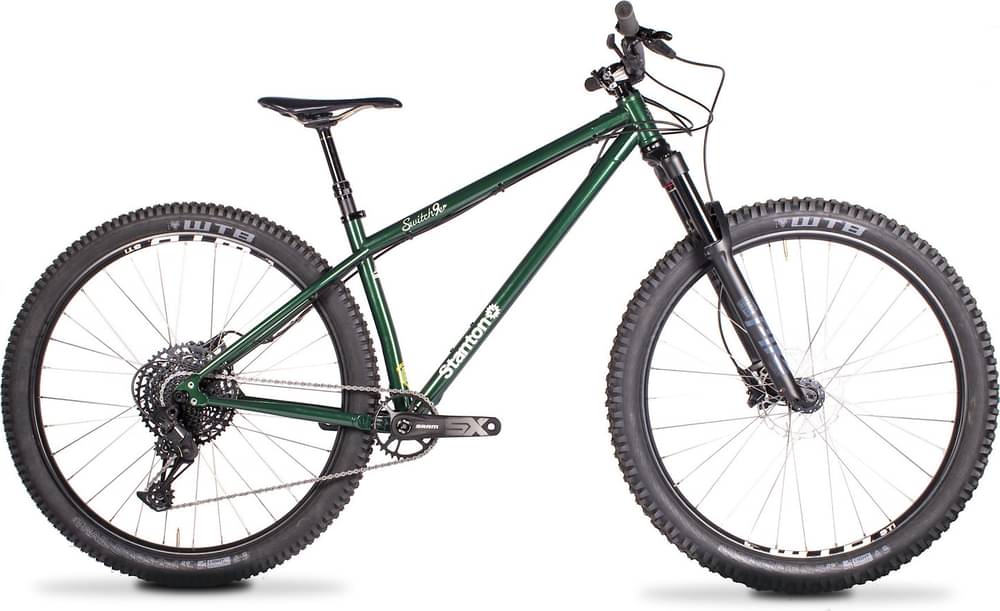

Switch9er 631 Elite is part of the Stanton Switch9er model. There are 2 bikes that carry this model name. You can easily view all of the Stanton Switch9er bikes models from 2021, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The Öhlins is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Stanton Switch9er 631 Elite 2021, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Stanton Switch9er 631 Elite is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Stanton Switch9er 631 Elite comes with a dropper post. Therefore, climbing or descending will be a breeze.
