Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 140mm -
Fork RockShox Pike Select
-
Groupset SX Eagle -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
RockShox Pike Select
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle
Bottom Bracket
73mm
Chain
SRAM SX Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Stanton-branded Novatec
Rear Hub
Stanton-branded Novatec
Rims
WTB i29
Tires
Front: WTB Vigilante, 29" x 2.5", Rear: WTB Trail Boss, 29" x 2.4"
Brakes
Brakes
SRAM Level, 2-piston
Brake Levers
SRAM Level
Cockpit
Stem
Stanton
Handlebar
Stanton
Grips
Stanton
Headset
Stanton
Seat
Saddle
Stanton
Seatpost
RockShox Reverb Stealth dropper, 175mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 304 mm | 304 mm |
| Front Center | 784 mm | 817 mm |
| Rake | 74 mm | 65 mm |
| Trail | 89 mm | 99 mm |
| Stack | 613 mm | 643 mm |
| Reach | 456 mm | 486 mm |
| Top Tube Length | 608 mm | 637 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 458 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 120 mm |
| Chainstay Length | 431 mm | 431 mm |
| Wheelbase | 1206 mm | 1239 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Wheels | 29" | 29" |
About this model

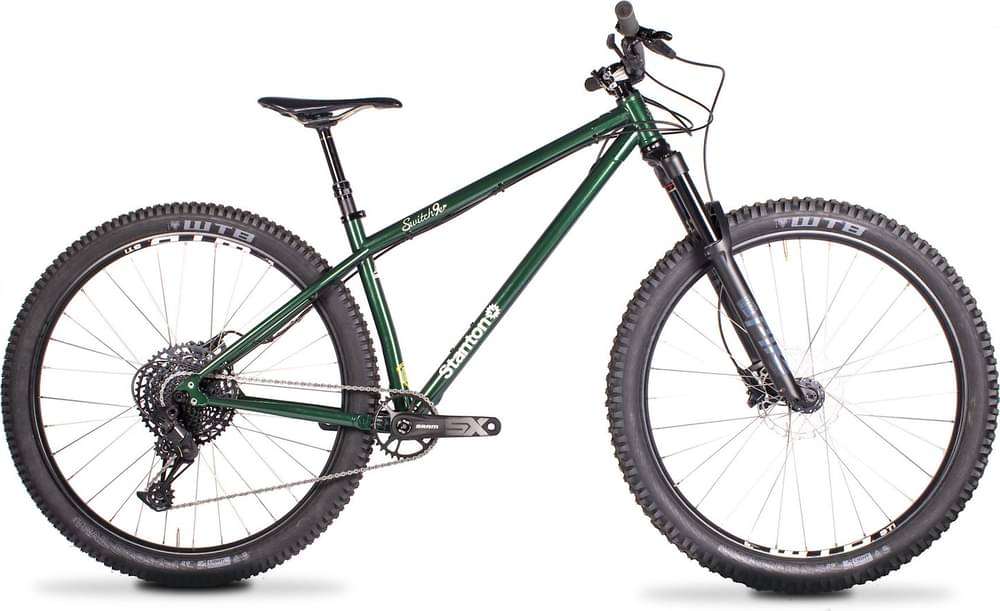

Switch9er 631 Standard belongs to the Stanton Switch9er model. Stanton released 2 bikes variations of this model so far. You can easily view all of the Stanton Switch9er bikes models from 2021, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The RockShox Pike Select is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Switch9er 631 Standard 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Stanton Switch9er 631 Standard is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
