Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Lyrik
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
RockShox Lyrik (FOX and Ohlins upgrades available)
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT, 11-speed, with clutch
Front Derailleur
N/A
Shift Levers
Shimano XT, 11-speed
Cassette
Shimano XT, 11-speed, 11-46 tooth
Crank
Shimano XT
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Hope Tech Enduro Pro 4
Rear Hub
Hope Tech Enduro Pro 4
Rims
Hope Tech Enduro Pro 4
Tires
Vee Tire Co.
Brakes
Brakes
Shimano XT hydraulic disc, 160mm rear rotor, 180mm front rotor
Brake Levers
Shimano XT hydraulic disc
Cockpit
Stem
Stanton Super Series
Handlebar
Stanton Super Series, 800mm width
Grips
Stanton Super Series lock-on
Headset
Stanton Super Series
Seat
Saddle
Stanton Rigel
Seatpost
Rockshox Reverb Stealth, 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16.5" | 18" | 16.5" | 18" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.46 mm | 1.42 mm | 1.39 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 656 mm | 677 mm | 681 mm | 702 mm |
| Rake | -5 mm | -10 mm | -5 mm | -5 mm |
| Trail | 168 mm | 173 mm | 168 mm | 168 mm |
| Stack | 612 mm | 621.5 mm | 612 mm | 621.5 mm |
| Reach | 405 mm | 427 mm | 430 mm | 446 mm |
| Top Tube Length | 588 mm | 608 mm | 613 mm | 632 mm |
| Seat Tube Angle | 72.7 ° | 72.7 ° | 72.7 ° | 72.7 ° |
| Seat Tube Length | 419 mm | 457 mm | 419 mm | 457 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 120 mm | 110 mm | 120 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1069 mm | 1089 mm | 1094 mm | 1114 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm | 46 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

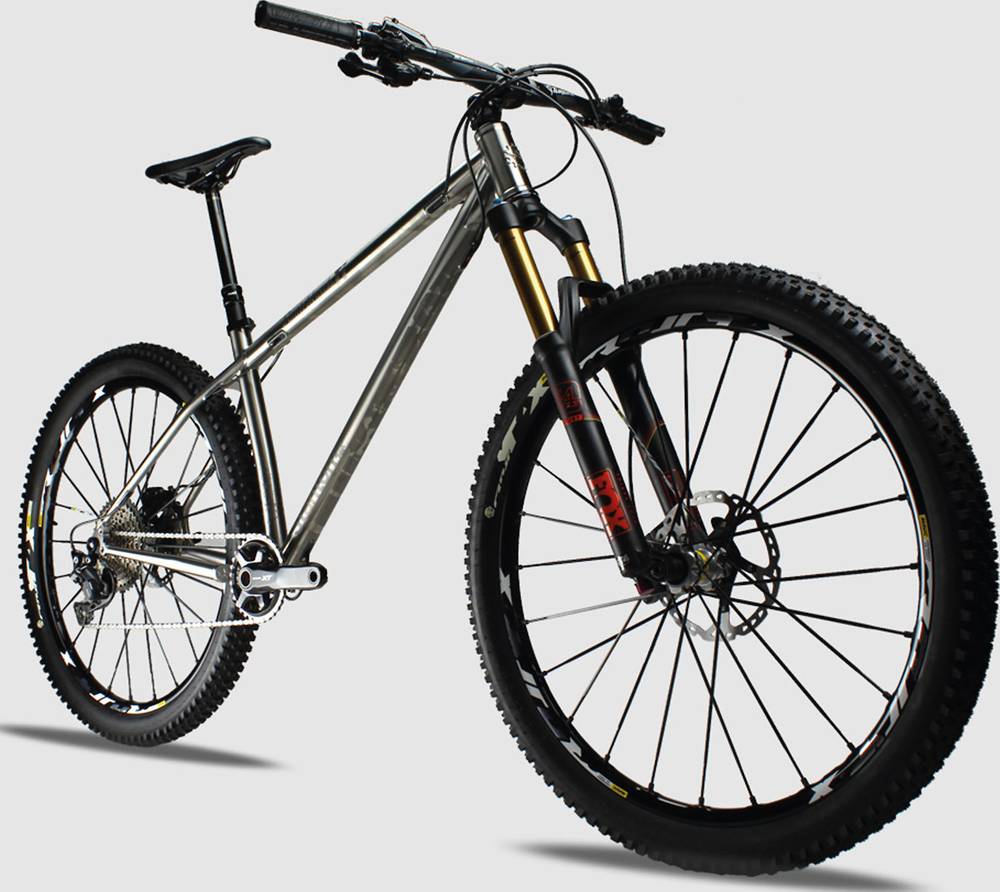

Switchback Ti Mk II Elite belongs to the Stanton Switchback model. Stanton released 5 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Switchback Ti Mk II Elite components
Fork
Stanton Switchback Ti Mk II Elite 2018 bike is equipped with the RockShox Lyrik fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Switchback Ti Mk II Elite 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Switchback Ti Mk II Elite comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Stanton Switchback Ti Mk II Elite comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
