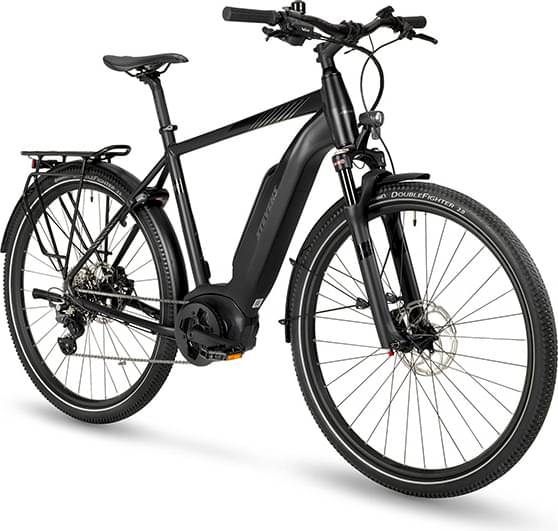

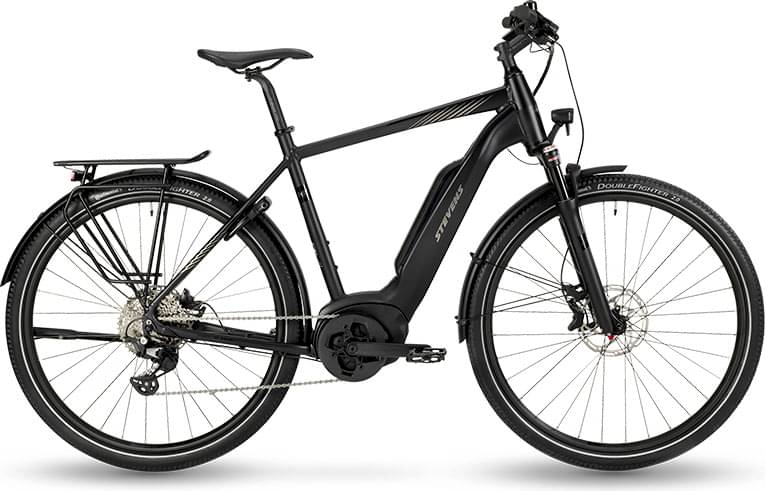

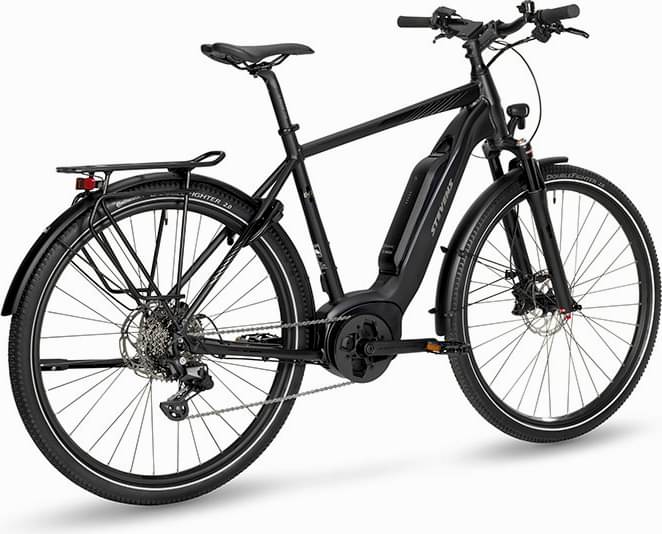

Stevens E-6X Tour Gent 2023
2023 E-bike
Estimate price |
4,303$
Weight | 25.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 545, Capacity: 545 Wh/14.4 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: Postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour Mobie25-Air LOR, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6"
Drivetrain
Rear Derailleur
Shimano Deore Shadow+, RD-M5130-GS, 10-speed, Total capacity: 32 T
Shift Levers
Shimano Deore, SL-M5130, 10-speed, Linkglide
Cassette
Shimano CS-LG400-10, 10-speed, Combination: 11-13-15-17-20-23-26-30-36-43 T, LINKGLIDE
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-LG500, LINKGLIDE
Pedals
MTB Alu Flatpedal Reflex
Wheels
Front Hub
Strummer RTP-1, Axle: QR15x100 mm
Rear Hub
Formula CL-26, Axle: QR9x135 mm
Rims
Oxygen RM-26 Disc, ETRTO: 26 x 622
Tires
Continental Double Fighter III, Tire size: 50-622, Reflective stripes
Brakes
Brakes
Tektro Volans, HD-T532-F, Hydraulic disc brake, 4 pistons
Brake Levers
Tektro HD-T532, 3 finger
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Oxygen E-Scorpo, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Oxygen Havoc
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Performance Line, Continuous rated power: 250 W, Max. torque: 75 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerPack 545, Capacity: 545 Wh/14.4 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.59 mm | 1.62 mm | 1.64 mm | 1.68 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 632 mm | 636 mm | 642 mm | 653 mm | 664 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 76 mm | 72 mm | 69 mm | 69 mm |
| Stack | 595.3 mm | 618.3 mm | 639.4 mm | 660.5 mm | 684.3 mm |
| Reach | 382.2 mm | 389.1 mm | 393.5 mm | 403.8 mm | 407.3 mm |
| Top Tube Length | 571.5 mm | 585.5 mm | 596.5 mm | 613.5 mm | 624.5 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 429.5 mm | 470.2 mm | 500.5 mm | 530 mm | 560 mm |
| Head Tube Angle | 70 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 145 mm | 165 mm | 185 mm | 210 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1112 mm | 1115 mm | 1121 mm | 1133 mm | 1144 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 805 mm | 838 mm | 864 mm | 889 mm | 917 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
E-6X Tour Gent is a Stevens E E 6x model. Stevens released 4 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Stevens E-6X Tour Lady 2023 has a starting price of 3917$. Stevens E-6X Tour Gent 2023 on the other hand is the most expensive at 3917$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 3917$. If we compare this with the average Hybrid e-bike cost we notice that the price is 57.94% higher.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 25.2 kg (55.56 lbs), the E-6X Tour Gent model is a bit heavier than average. In short, the average Hybrid e-bike weight is 5.93% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the E-6X Tour Gent model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Stevens E-6X Tour Gent has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
