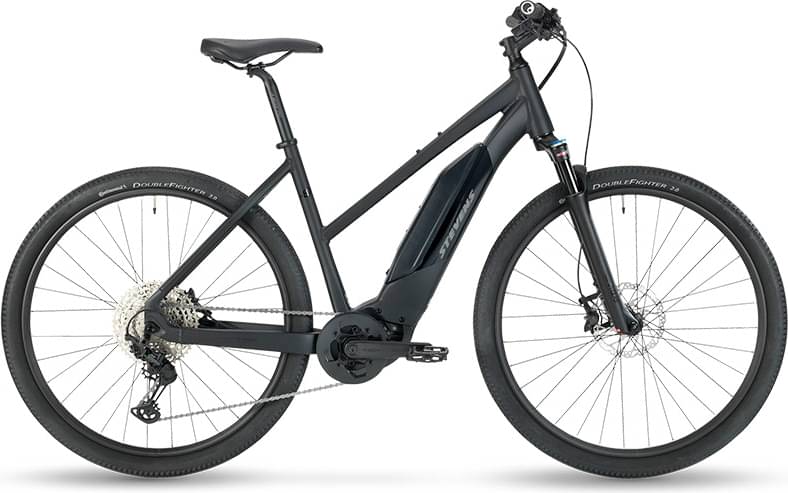

Stevens E-8X Lady 2022
2022 E-bike
Estimate price |
4,420$
Weight | 20.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NRX E
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 142 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour NRX-E LOR Air, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6"
Drivetrain
Shift Levers
Shimano Deore XT, SL-M8100-R, 12-speed
Cassette
Shimano Deore, CS-M6100, 12-speed, Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100
Pedals
MTB Alu Flatpedal Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Continental Double Fighter III, Tire size: 50-622
Brakes
Brakes
Shimano Deore XT, BR-M8100, Hydraulic disc brake
Brake Levers
Shimano BL-T8100
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Oxygen E-Scorpo, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Oxygen Lynx
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G4 Performance Line CX Cruise, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Remote
Bosch Kiox
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | Measuring mode |
|---|---|---|---|---|
| Stack Reach Ratio | 1.604 mm | 1.615 mm | 1.61 mm | mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | mm |
| Front Center | 633 mm | 649 mm | 669 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | mm |
| Trail | 79 mm | 79 mm | 78 mm | mm |
| Stack | 619 mm | 638 mm | 657 mm | mm |
| Reach | 386 mm | 395 mm | 408 mm | mm |
| Top Tube Length | 575 mm | 590 mm | 609 mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | ° |
| Seat Tube Length | 289 mm | 271 mm | 285 mm | mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | mm |
| Wheelbase | 1090 mm | 1106 mm | 1126 mm | mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | mm |
| Standover Height | 711 mm | 716 mm | 720 mm | mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-8X Lady is a Stevens E E 8x model. Stevens released 4 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Stevens E-8X Lady 2022 is the cheapest e-bike model and costs 4034$. Stevens E-8X Tour Gent 2022 is the most expensive one and costs 4246$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 4034$. In conclusion, this e-bike price is 62.66% higher than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably lighter than average, E-8X Lady has a weight of 20.9 kg (46.08 lbs). In other words, this model is 13.83% lighter than the average Hybrid e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The E-8X Lady comes factory-installed with the Suntour NRX E fork. This has a travel range of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the E-8X Lady model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-8X Lady comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
