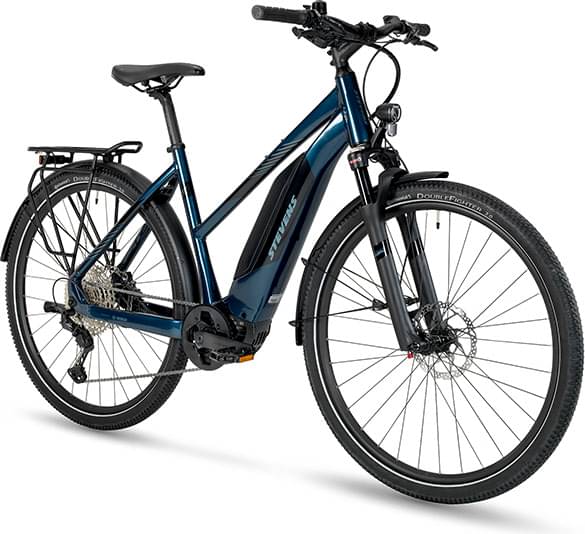

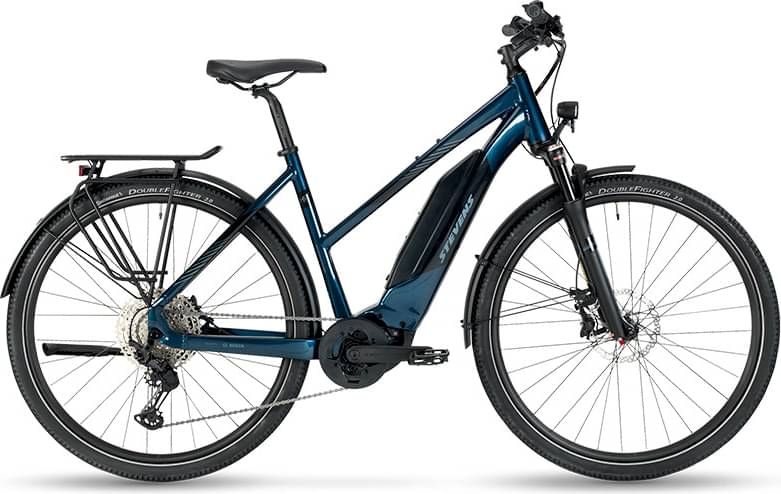

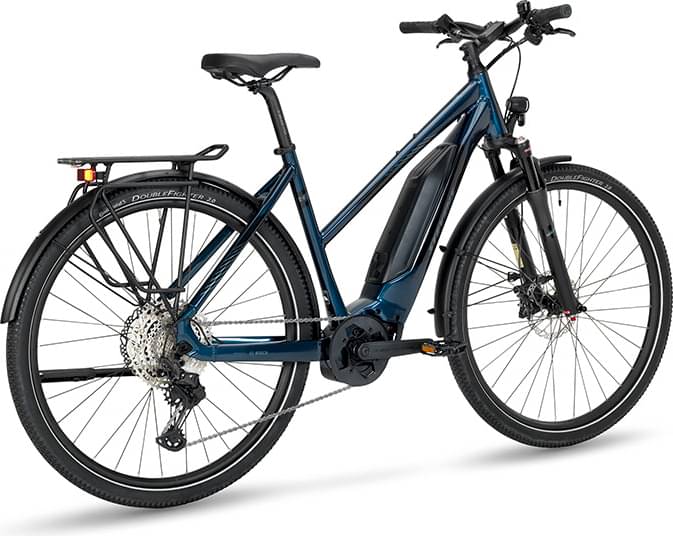

Stevens E-8X Tour Lady 2023
2023 E-bike
Estimate price |
4,587$
Weight | 22.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerPack 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 142 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour Mobie25-Air LOR, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow+, RD-M8100-SGS, 12-speed, Total capacity: 41 T
Shift Levers
Shimano Deore XT, SL-M8100-R, 12-speed
Cassette
Shimano Deore, CS-M6100, 12-speed, Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100
Pedals
MTB Alu Flatpedal Reflex
Wheels
Front Hub
Shimano MT410-B, Axle: QR15x110 mm
Rear Hub
Shimano MT410, Axle: QR12x148 mm
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Continental Double Fighter III, Tire size: 50-622, Reflective stripes
Brakes
Brakes
Shimano Deore XT, BR-M8100, Hydraulic disc brake
Brake Levers
Shimano BL-T8100
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Oxygen E-Scorpo, Width: 660 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Oxygen Lynx
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G4 Performance Line CX, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerPack 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.63 mm | 1.62 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 633 mm | 649 mm | 669 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 79 mm | 78 mm |
| Stack | 610 mm | 629 mm | 648 mm |
| Reach | 377 mm | 386 mm | 399 mm |
| Top Tube Length | 566 mm | 581 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 289 mm | 271 mm | 285 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1081 mm | 1097 mm | 1117 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 702 mm | 707 mm | 711 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
E-8X Tour Lady belongs to the Stevens E E 8x model. Stevens launched 10 e-bikes of this model so far. You can easily view all of the Stevens E E 8x e-bikes models from 2023, here.
Model range prices
Stevens E-8X Lady 2023 is the cheapest e-bike model and costs 4023$. Stevens E-8X Tour Plus Forma 2023 is the most expensive one and costs 5082$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 4235$. If we compare this with the average Hybrid e-bike cost we notice that the price is 70.77% more expensive.
Hybrid e-bikes average weight
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 22.9 kg (50.49 lbs), the E-8X Tour Lady model is slightly lighter than average. In short, the average Hybrid e-bike weight is 3.89% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
E-8X Tour Lady components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The E-8X Tour Lady 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Stevens E-8X Tour Lady has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
