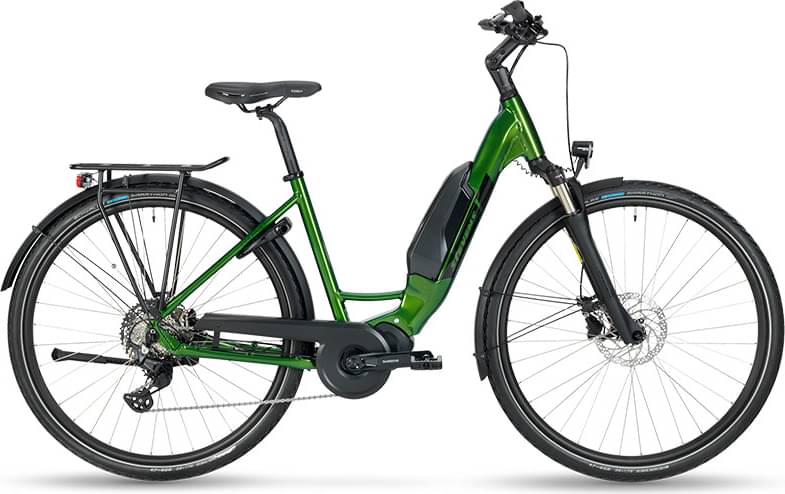

Stevens E-Bormio Forma 2022
2022 E-bike
Estimate price |
3,140$
Weight | 23.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Shimano Steps, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour NCX-D Air LO, Travel: 63 mm, Air suspension, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Deore, SL-M5130, 10-speed, Linkglide
Cassette
Shimano CS-LG600-10, 10-speed, Combination: 11-13-15-17-20-23-26-30-36-43 T
Crank
Shimano FC-E5010, 38 T, BB type: Shimano Steps
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-LG500
Pedals
ATB Alu Pro Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT200, Hydraulic disc brake
Brake Levers
Shimano BL-MT200, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Shimano Steps E5000, Continuous rated power: 250 W, Max. torque: 40 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 3 drive modes with support levels 70-230 % plus walk assistance, Mileage shimano-steps.com
Remote
Shimano SC-E5000
Charger
Shimano 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm | Measuring mode |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.578 mm | 1.654 mm | mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | mm |
| Front Center | 654 mm | 669 mm | 679 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | mm |
| Trail | 99 mm | 99 mm | 99 mm | mm |
| Stack | 608 mm | 617 mm | 645 mm | mm |
| Reach | 380 mm | 391 mm | 390 mm | mm |
| Top Tube Length | 566 mm | 580 mm | 587 mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | ° |
| Seat Tube Length | 165 mm | 165 mm | 165 mm | mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | ° |
| Head Tube Length | 150 mm | 160 mm | 190 mm | mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm | mm |
| Wheelbase | 1118 mm | 1133 mm | 1143 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 452 mm | 452 mm | 452 mm | mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Bormio Forma completes the Stevens E E Bormio model. Stevens launched 6 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Stevens E-Bormio Forma 2022 is the cheapest e-bike model and costs 2866$. Stevens E-Bormio Luxe Gent 2022 is the most expensive one and costs 3290$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2866$. In conclusion, this e-bike price is 11.56% more expensive than the price of the average Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 23.7 kg (52.25 lbs), the E-Bormio Forma model is a bit lighter than average. In conclusion, the average Commuter e-bike weighs 6.33% more than E-Bormio Forma.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
E-Bormio Forma components
Fork
The Suntour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on E-Bormio Forma are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Stevens E-Bormio Forma is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
