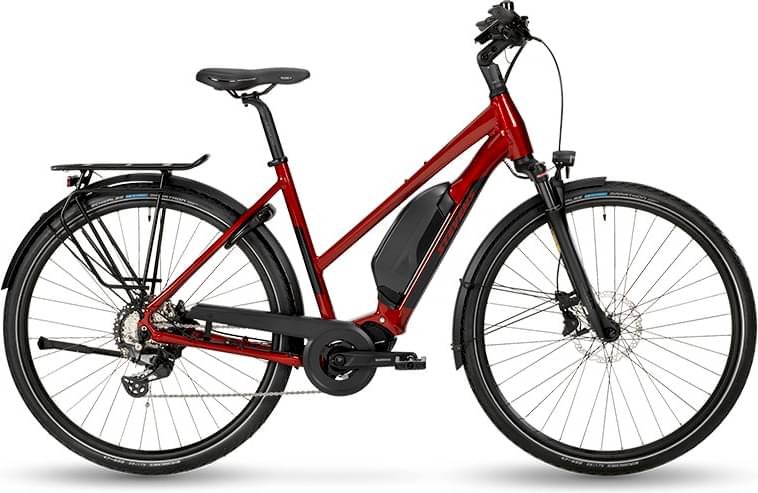

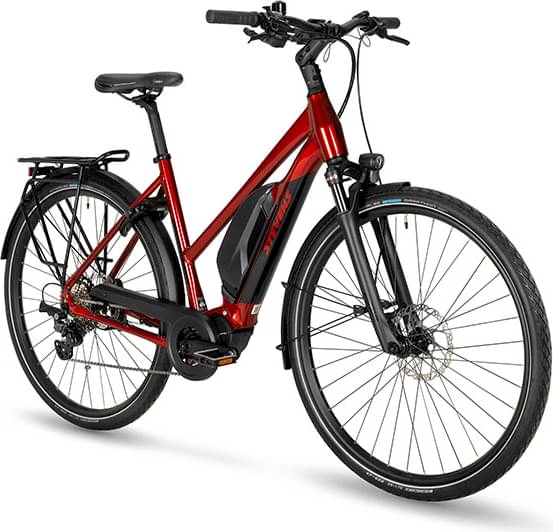

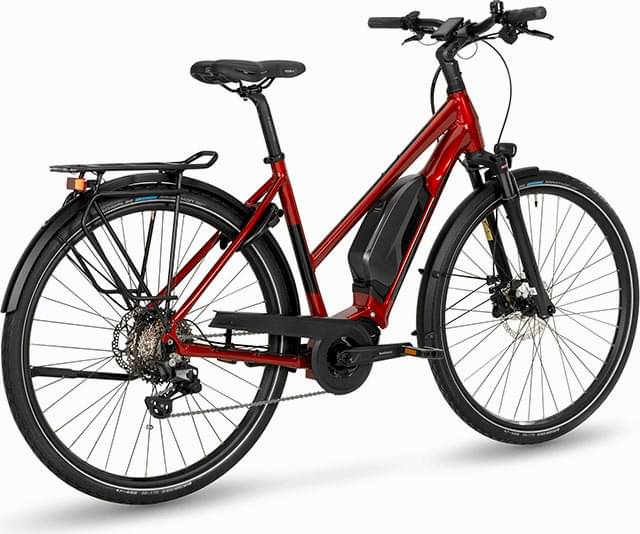

Stevens E-Bormio Luxe Lady 2023
2023 E-bike
Estimate price |
4,013$
Weight | 23.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EP6 BT-EN606, Capacity: 630 Wh/17.5 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Shimano Steps, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour NCX-D Air LO, Travel: 63 mm, Air suspension, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore Shadow+, RD-M5130-GS, 10-speed, Total capacity: 32 T
Shift Levers
Shimano Deore, SL-M5130, 10-speed, Linkglide
Cassette
Shimano CS-LG400-10, 10-speed, Combination: 11-13-15-17-20-23-26-30-36-43 T, LINKGLIDE
Crank
Shimano FC-EM600, BB type: Shimano Steps
Bottom Bracket
STEPS, press-fit
Chain
KMC X10 EPT
Pedals
ATB Alu Pro Reflex
Wheels
Front Hub
Formula CL-51, Axle: QR5x100 mm
Rear Hub
Formula CL-52, Axle: QR5x135 mm
Rims
Oxygen RM-26 Disc, ETRTO: 26 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT410, Hydraulic disc brake
Brake Levers
Shimano BL-MT402-3A
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Shimano EP600, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: shimano-steps.com, No of notches: 3 optimally graded driving modes plus walk assistance with support level up to 400 %, driving modes: customizable via E-Tube App
Battery
Shimano EP6 BT-EN606, Capacity: 630 Wh/17.5 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Shimano 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.612 mm | 1.686 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 627 mm | 639 mm | 653 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 76 mm | 82 mm | 81 mm |
| Stack | 602 mm | 624 mm | 656 mm |
| Reach | 377 mm | 387 mm | 389 mm |
| Top Tube Length | 566 mm | 578 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 247 mm | 246 mm | 248 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 150 mm | 155 mm | 190 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1091 mm | 1103 mm | 1117 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 672 mm | 670 mm | 682 mm |
| Wheels | 700 | 700 | 700 |
About this model
E-Bormio Luxe Lady belongs to the Stevens E E Bormio model. There are 12 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Stevens E-Bormio Forma 2023 is the most economical model, with a starting price of 2964$. Stevens E-Bormio Luxe Lady 2023 on the other hand costs 3705$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 3705$. Doing a quick comparison, we notice that E-Bormio Luxe Lady price is 44.22% more expensive than the average cost of a Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 23.8 kg (52.47 lbs), the E-Bormio Luxe Lady model is a bit lighter than average. In conclusion, the average Commuter e-bike weighs 5.88% more than E-Bormio Luxe Lady.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the Suntour NCX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on E-Bormio Luxe Lady are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Bormio Luxe Lady comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
