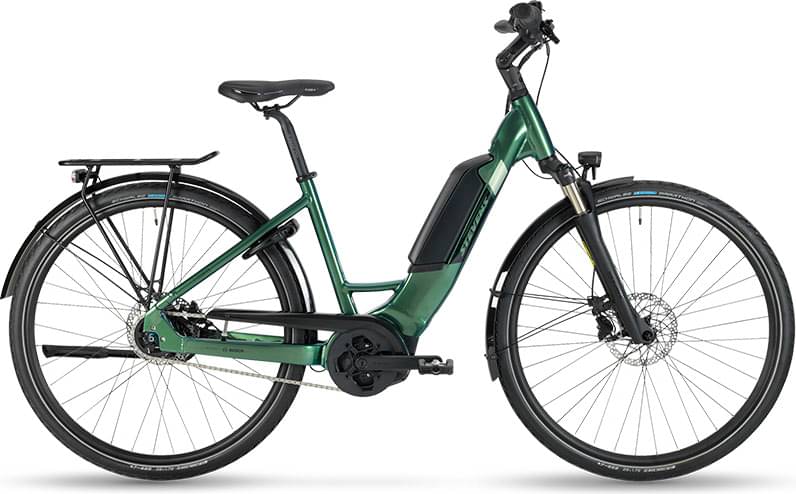

Stevens E-Courier 2022
2022 E-bike
Estimate price |
3,554$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle, Adjustable dropouts
Suspension Fork
SR Suntour NX1-Coil LO, Federweg: 63 mm, Stahlfeder, Lockout, Gabelschaft 1 1/8", O.L.D.: 100 mm, Bremse: Postmount-Disc 160, Schutzblech-Ösen
Drivetrain
Shift Levers
Shimano Nexus-5 Revo, SL-C7000-5, Twist shifter, 5-speed
Cassette
Shimano, 27 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
KMC Z8.1
Pedals
City Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT200, Hydraulic disc brake
Brake Levers
Shimano BL-MT200, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Active Line Plus Cruise, Continuous rated power: 250 W, Max. torque: 50 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: See BOSCH Range Assistant, No of notches: 4 drive modes with support levels 40-270 % plus walk assistance
Remote
Bosch Intuvia
Charger
Bosch 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm | Measuring mode |
|---|---|---|---|---|
| Stack Reach Ratio | 1.609 mm | 1.583 mm | 1.802 mm | mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | mm |
| Front Center | 649 mm | 664 mm | 672 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | mm |
| Trail | 95 mm | 96 mm | 66 mm | mm |
| Stack | 610 mm | 619 mm | 647 mm | mm |
| Reach | 379 mm | 391 mm | 359 mm | mm |
| Top Tube Length | 566 mm | 580 mm | 587 mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | ° |
| Seat Tube Length | 184 mm | 184 mm | 184 mm | mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | ° |
| Head Tube Length | 150 mm | 160 mm | 190 mm | mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | mm |
| Wheelbase | 1131 mm | 1146 mm | 1155 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 480 mm | 480 mm | 480 mm | mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Courier is a Stevens E E Courier model. Stevens released 6 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Stevens E-Courier 2022 has a starting price of 3290$. Stevens E-Courier Plus 2022 on the other hand is the most expensive at 5096$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for General Urban e-bikes
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3290$. Comparing the average cost of a General Urban e-bike to this one, you will see that E-Courier price is 56.82% higher.
Average weight for General Urban e-bikes
The average weight for General Urban e-bikes is 24.08 kg (53.09 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 25.7 kg (56.66 lbs), the E-Courier model is a bit heavier than average. In conclusion, the average General Urban e-bike weighs 6.73% less than E-Courier.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Stevens E-Courier 2022 e-bike is equipped with the Suntour fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Stevens E-Courier 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Stevens E-Courier has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
