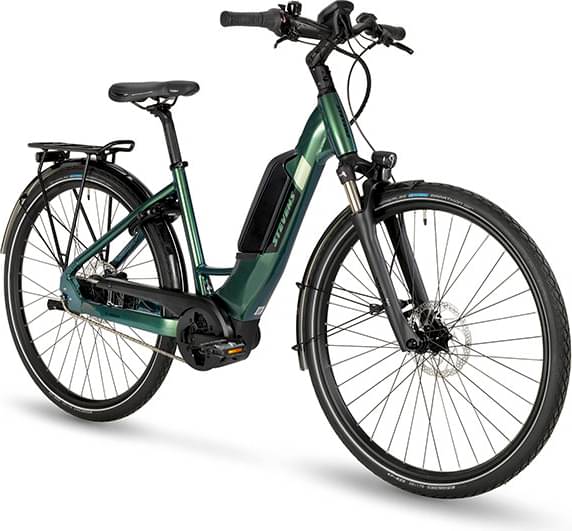

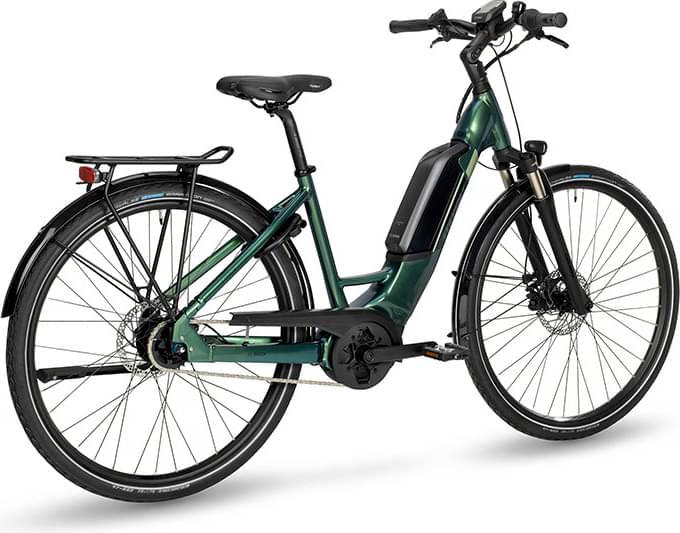

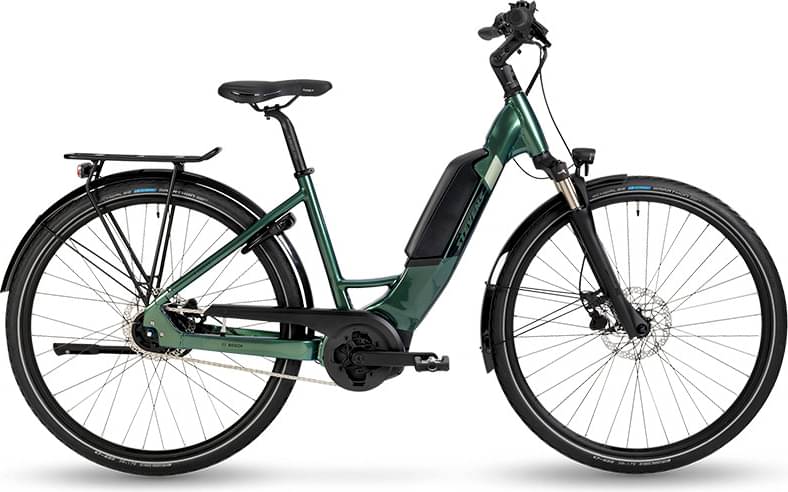

Stevens E-Courier 2023
2023 E-bike
Estimate price |
3,784$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NX 1
-
Groupset SunRace -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle, Adjustable dropouts
Suspension Fork
SR Suntour NX1-Coil LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Sunrace S5, Twist shifter for Nexus, 5-speed
Cassette
Shimano, 27 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
KMC Z1eHX
Pedals
City Reflex
Wheels
Front Hub
Formula CL-51, Axle: QR5x100 mm
Rims
Oxygen RM-26 Disc, ETRTO: 26 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Tektro HD-T280, Hydraulic disc brake, 2 pistons
Brake Levers
Tektro HD-T280, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Active Line Plus, Continuous rated power: 250 W, Max. torque: 50 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: See BOSCH Range Assistant, No of notches: 4 drive modes with support levels 40-270 % plus walk assistance
Battery
Bosch PowerPack 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm |
|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.58 mm | 1.79 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 649 mm | 664 mm | 672 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 95 mm | 96 mm | 66 mm |
| Stack | 615 mm | 624 mm | 652 mm |
| Reach | 384 mm | 396 mm | 364 mm |
| Top Tube Length | 571 mm | 585 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 184 mm | 184 mm | 184 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 160 mm | 190 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1136 mm | 1151 mm | 1160 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 485 mm | 485 mm | 485 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
E-Courier is part of the Stevens E E Courier model. Stevens released 14 e-bikes variations of this model so far. You can easily view all of the Stevens E E Courier e-bikes models from 2023, here.
Model range prices
Stevens E-Courier 2023 is the most affordable e-bike of this model and has a price of 3493$. On the other hand, Stevens E-Courier Plus Gent 2023, is the most expensive and costs 5823$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Urban e-bikes average price
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 3493$. Comparing the average cost of a General Urban e-bike to this one, you will see that E-Courier price is 66.49% higher.
Average weight for General Urban e-bikes
The average weight for General Urban e-bikes is 24.08 kg (53.09 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 25.9 kg (57.1 lbs), the E-Courier model is a bit heavier than average. To sum up, it’s 7.56% heavier than the average weight of General Urban e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
E-Courier components
Fork
The Suntour NX 1 is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the E-Courier model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Courier has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
