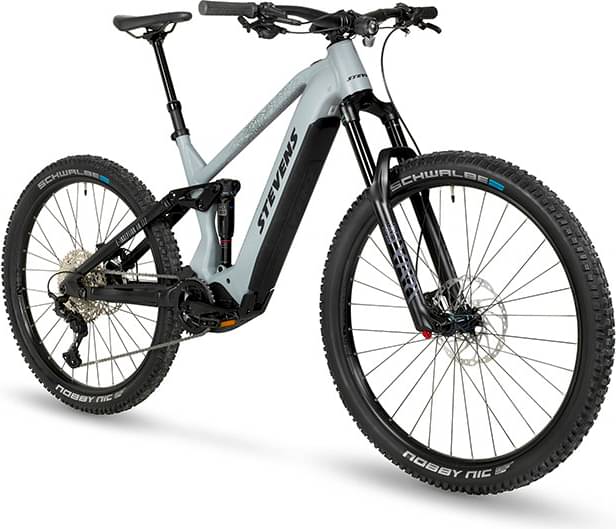

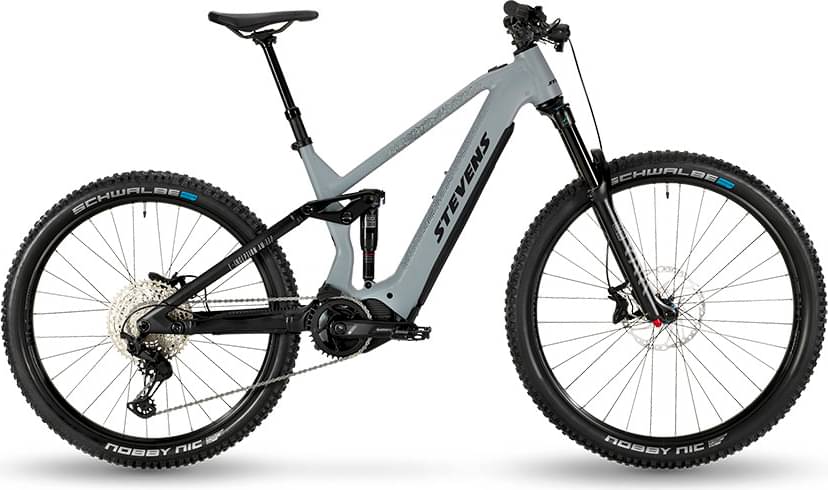

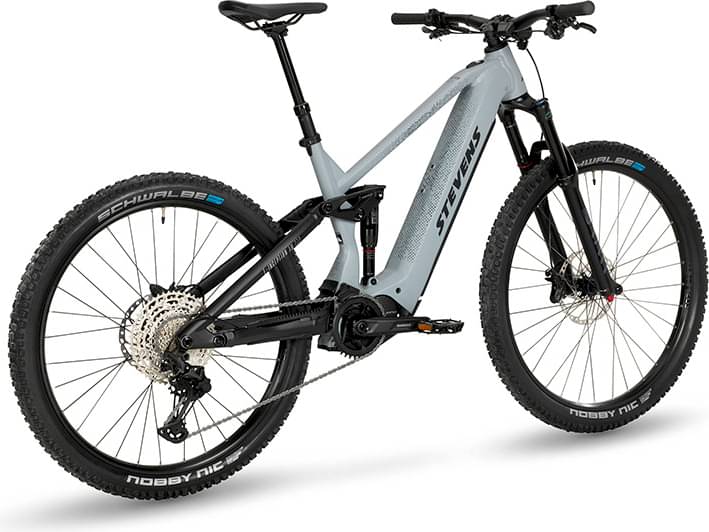

Stevens E-Inception AM 7.7.2 ACT 2023
2023 E-bike
Estimate price |
6,536$
Weight | 25.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 726, Capacity: 726 Wh/20.0 Ah, Voltage: 36.3 V, Technology: Li-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 148 mm, Brake: postmount disc 7", BB: Shimano Steps, Cable routing: internal
Suspension Fork
Rock Shox Yari RC, Travel: 150 mm, Air suspension, Tapered Steerer 1 1/8" - 1.8'', O.L.D.: 110 mm, Brake: postmount disc 7"
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow+, RD-M8100-SGS, 12-speed, Total capacity: 41 T
Shift Levers
Shimano Deore XT, SL-M8100, 12-speed
Cassette
Shimano Deore, CS-M6100, 12-speed, Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
Crank
Shimano Steps EP8, FC-EM600, BB type: Shimano Steps
Bottom Bracket
STEPS, press-fit
Chain
KMC e12T EPT
Pedals
MTB Alu Flatpedal Reflex
Wheels
Front Hub
Strummer CLTP, Axle: QR15x110 mm
Rear Hub
Shimano SLX, M7110-B, Axle: QR12x148 mm
Rims
Sun Ringlé Düroc SD37, ETRTO: 31 x 622
Tires
Schwalbe Nobby Nic Evolution, Tire size: 65-622, Super Trail, Foldable, ADDIX Speed Grip compound, SnakeSkin, Tubeless Easy
Brakes
Brakes
Shimano BR-M6120, Hydraulic disc brake, 4 pistons
Brake Levers
Shimano BL-M6100, 2 finger, I-SPEC EV
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 35 mm, Angle: 5°
Handlebar
Oxygen E-Scorpo, Width: 780 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 35 mm
Headset
Acros Blocklock Taper 1 1/8"-1.8", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/46
Seat
Saddle
Fizik Terra Aidon X3
Seatpost
Oxygen E-Scorpo DPR-E, Travel: 125 mm | 150 mm | 170 mm, Remote Lockout, Length: 390 mm | 440 mm | 480 mm, Diameter: 30.9 mm, Insertion depth: 100 mm
Motor & Battery
Motor
Shimano EP801, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: shimano-steps.com, No of notches: 3 optimally graded driving modes plus walk assistance with support level up to 400 %, driving modes: customizable via E-Tube App
Battery
Darfon 726, Capacity: 726 Wh/20.0 Ah, Voltage: 36.3 V, Technology: Li-Ion
Charger
Darfon 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.45 mm | 1.41 mm | 1.4 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 747 mm | 768 mm | 795 mm | 821 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 111 mm | 110 mm | 111 mm |
| Stack | 629 mm | 639 mm | 652 mm | 671 mm |
| Reach | 424 mm | 441 mm | 461 mm | 480 mm |
| Top Tube Length | 577 mm | 597 mm | 622 mm | 647 mm |
| Seat Tube Angle | 75.7 ° | 75.5 ° | 75.3 ° | 75.1 ° |
| Seat Tube Length | 317 mm | 317 mm | 323 mm | 349 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 115 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1198 mm | 1219 mm | 1246 mm | 1272 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 767 mm | 767 mm | 775 mm | 818 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
E-Inception AM 7.7.2 ACT completes the Stevens E E Inception model. Stevens released 31 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Stevens E-Inception AM 6.6.1 ACT 2023 is the most affordable e-bike of this model and has a price of 5294$. On the other hand, Stevens E-Inception AM 9.7.1 GTF 2023, is the most expensive and costs 10588$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 6035$. Doing a quick comparison, we notice that E-Inception AM 7.7.2 ACT price is 26.12% higher than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 25.1 kg (55.34 lbs), Stevens e-bike is a bit heavier than average. To sum up, it’s 7.17% heavier than the average weight of Enduro e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the RockShox Yari RC model. The travel on this model is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the E-Inception AM 7.7.2 ACT model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Inception AM 7.7.2 ACT has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
