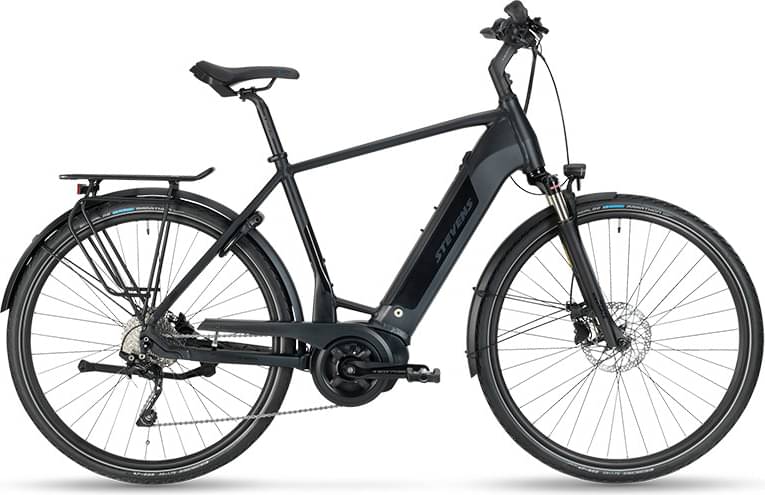

Stevens E-Lavena PT5 Gent 2022
2022 E-bike
Estimate price |
4,071$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle, PowerTube box (lockable)
Suspension Fork
SR Suntour NCX-D Air LO, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Deore, SL-M6000, 10-speed
Cassette
Shimano CS-HG50-10, CS-HG50, 10-speed, Combination: 11-13-15-17-19-21-24-28-32-36 T
Crank
Oxygen E-Scorpo, BB type: Bosch / BNI, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
KMC X10eS EPT
Pedals
City Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT200, Hydraulic disc brake
Brake Levers
Shimano BL-MT200, 3 finger
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 35°
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/39.8
Seat
Saddle
Selle Royal E-Zone
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Performance Line Cruise, Continuous rated power: 250 W, Max. torque: 65 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 55-300 % plus walk assistance, Mileage: See BOSCH Range Assistant
Remote
Bosch Intuvia
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 55cm | 58cm | 61cm | Measuring mode |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.644 mm | 1.638 mm | 1.653 mm | 1.666 mm | mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm | mm |
| Front Center | 647 mm | 655 mm | 654 mm | 656 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | mm |
| Trail | 80 mm | 82 mm | 75 mm | 71 mm | mm |
| Stack | 638 mm | 647 mm | 661 mm | 673 mm | mm |
| Reach | 388 mm | 395 mm | 400 mm | 404 mm | mm |
| Top Tube Length | 597 mm | 605 mm | 615 mm | 623 mm | mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | ° |
| Seat Tube Length | 491 mm | 520 mm | 546 mm | 575 mm | mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71.5 ° | ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm | 200 mm | mm |
| Chainstay Length | 496 mm | 496 mm | 496 mm | 496 mm | mm |
| Wheelbase | 1135 mm | 1143 mm | 1142 mm | 1144 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 838 mm | 857 mm | 879 mm | 901 mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
E-Lavena PT5 Gent is part of the Stevens E E Lavena model. Stevens launched 3 e-bikes of this model so far. You can easily view all of the Stevens E E Lavena e-bikes models from 2022, here.
Model range prices
Stevens E-Lavena PT5 Forma 2022 is the cheapest e-bike model and costs 3715$. Stevens E-Lavena PT5 Gent 2022 is the most expensive one and costs 3715$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Stevens released this model in 2022, its price was 3715$. If we compare this with the average Commuter e-bike cost we notice that the price is 44.61% more expensive.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 25.9 kg (57.1 lbs), Stevens e-bike is slightly heavier than average. In other words, this model is 2.78% heavier than the average Commuter e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the Suntour NCX model. The travel on this model is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the E-Lavena PT5 Gent model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Stevens E-Lavena PT5 Gent has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
