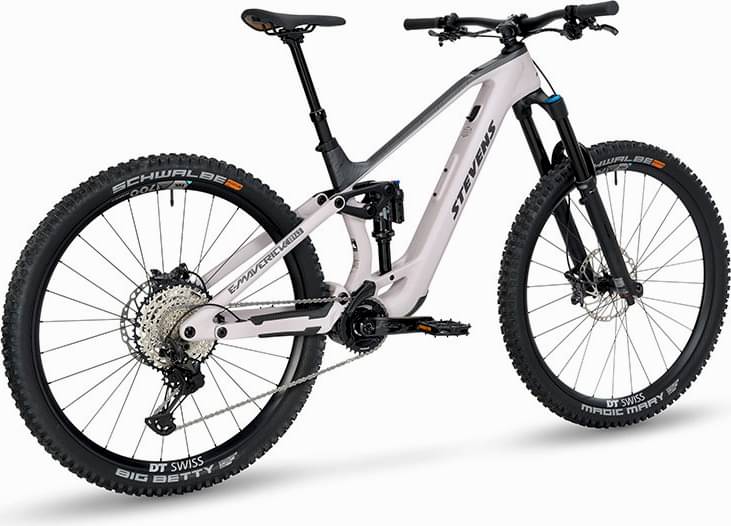

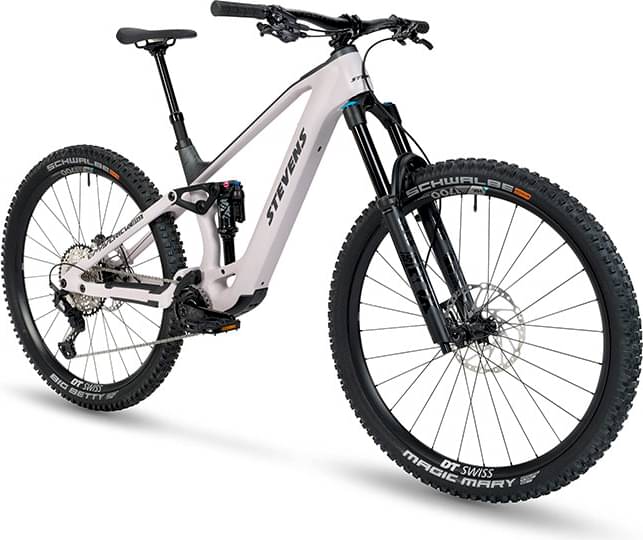

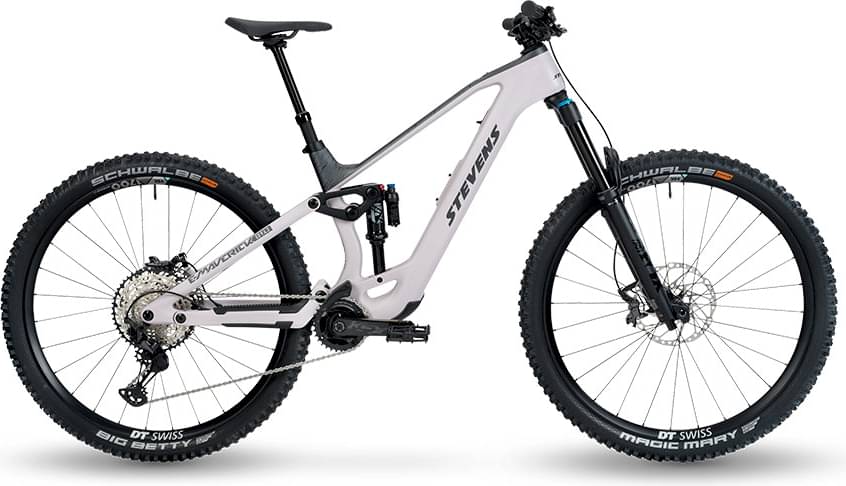

Stevens E-Maverick ED 9.4.3 2023
2023 E-bike
Estimate price |
8,601$
Weight | 18.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 36
-
Groupset XT, FSA -
Suspension Full -
Motor TQ 300W 50Nm mid-drive -
Battery TQ HPR-BAT01, Kapazität: 360 Wh/6.8 Ah, Voltage: 50.4 V, Technology: Li-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon SL HMF, O.L.D.: 148 mm, Brake: Postmount-Disc 180, Tretlager: TQ, Zugverlegung: intern
Suspension Fork
Fox 36 Float Performance Elite eMTB+, Travel: 160 mm, Air suspension, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 110 mm, Brake: postmount disc 7"
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow+, RD-M8100-SGS, 12-speed, Total capacity: 41 T
Shift Levers
Shimano Deore XT, SL-M8100-R, 12-speed
Cassette
Shimano SLX, CS-M7100, 12-speed, Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
Crank
FSA CK-9011/IS, Super light weight aluminum, BB type: ISIS, Crank bolt with QR-32
Chain
Shimano CN-M6100
Pedals
MTB Flatpedal Reflex
Wheels
Rims
DT Swiss HX 1700 Spline, Axle: QR15x110 mm, Tubeless ready
Tires
Schwalbe Magic Mary Evolution, Tire size: 62-622, Super Trail, Foldable, ADDIX Soft compound, SnakeSkin, Tubeless Easy
Brakes
Brakes
Shimano Deore XT, BR-MT8120, Hydraulic disc brake, 4 pistons
Brake Levers
Shimano Deore XT, BL-M8100, 2 finger
Cockpit
Stem
Race Face Turbine-R, Handlebar clamp: 35 mm, Angle: 0°
Handlebar
Race Face Turbine-R, Width: 800 mm, Rise: 35 mm, Clamp: 35 mm
Headset
Acros Blocklock Taper 1 1/8"-1 1/2", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS56/40
Seat
Saddle
Fizik Terra Alpaca
Seatpost
Oxygen E-Scorpo DPR-E, Travel: 100 mm | 125 mm | 150 mm, Remote Lockout, Length: 340 mm | 390 mm | 440 mm, Diameter: 30.9 mm, Insertion depth: 100 mm
Motor & Battery
Motor
TQ HPR50, Continuous rated power: 300 W, Max. torque: 50 Nm, Breakaway at 25 km/h (15.5 mph)
Battery
TQ HPR-BAT01, Kapazität: 360 Wh/6.8 Ah, Voltage: 50.4 V, Technology: Li-Ion
Charger
TQ 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | R1 | R2 | R3 | R4 | R5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.35 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 757 mm | 785 mm | 811 mm | 833 mm | 859 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 131 mm | 130 mm | 128 mm | 124 mm | 125 mm |
| Stack | 617 mm | 631 mm | 640 mm | 652 mm | 661 mm |
| Reach | 431 mm | 452 mm | 473 mm | 497 mm | 519 mm |
| Top Tube Length | 568 mm | 593 mm | 618 mm | 644 mm | 669 mm |
| Seat Tube Angle | 76.6 ° | 76.3 ° | 76.1 ° | 76.1 ° | 75.8 ° |
| Seat Tube Length | 317 mm | 322 mm | 325 mm | 338 mm | 353 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.6 ° | 65.1 ° | 65.1 ° |
| Head Tube Length | 95 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1197 mm | 1225 mm | 1255 mm | 1277 mm | 1303 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
E-Maverick ED 9.4.3 belongs to the Stevens E E Maverick model. Stevens released 4 e-bikes variations of this model so far. Take a sneak peek at all Stevens E E Maverick e-bikes models from 2023, by clicking here.
Model range prices
Stevens E-Maverick AM 7.4.3 2023 is the cheapest e-bike model and costs 7411$. Stevens E-Maverick AM 9.4.3 2023 is the most expensive one and costs 10588$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Stevens released this model in 2023, its price was 7941$. Doing a quick comparison, we notice that E-Maverick ED 9.4.3 price is 65.96% more expensive than the average cost of an Enduro e-bike.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, E-Maverick ED 9.4.3 has a weight of 18.5 kg (40.79 lbs). In other words, this model is 26.59% lighter than the average Enduro e-bike.
Overview of components
Fork
Stevens E-Maverick ED 9.4.3 2023 e-bike is equipped with the Fox Performance Elite Float 36 fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the E-Maverick ED 9.4.3 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Stevens E-Maverick ED 9.4.3 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
The Stevens model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
