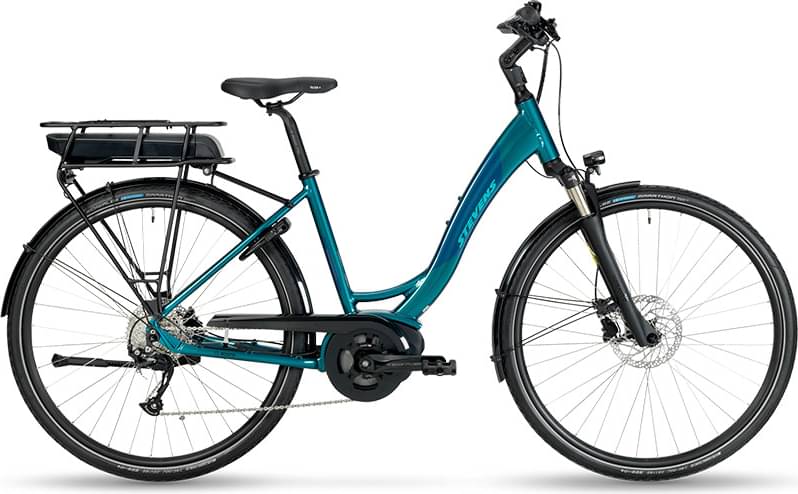

Stevens E-Molveno Forma 2022
2022 E-bike
Estimate price |
2,675$
Weight | 23.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Altus -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: IS disc, BB: Bosch, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour NCX-D LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Altus, SL-M2010-9R, 9-speed
Cassette
Shimano CS-HG201, 9-speed, Combination: 11-13-15-17-20-23-26-30-36 T
Crank
Oxygen E-Scorpo, BB type: Bosch / BNI, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
KMC X9 NPGY
Pedals
City Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Schwalbe Marathon, Tire size: 40-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT200, Hydraulic disc brake
Brake Levers
Shimano BL-MT200, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Active Line Cruise, Continuous rated power: 250 W, Max. torque: 40 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: See BOSCH Range Assistant, No of notches: 4 drive modes with support levels 40-250 % plus walk assistance
Remote
Bosch Purion
Charger
Bosch 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm | Measuring mode |
|---|---|---|---|---|
| Stack Reach Ratio | 1.604 mm | 1.586 mm | 1.654 mm | mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | mm |
| Front Center | 653 mm | 666 mm | 678 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | mm |
| Trail | 99 mm | 99 mm | 99 mm | mm |
| Stack | 608 mm | 617 mm | 645 mm | mm |
| Reach | 379 mm | 389 mm | 390 mm | mm |
| Top Tube Length | 565 mm | 578 mm | 587 mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | ° |
| Seat Tube Length | 163 mm | 163 mm | 163 mm | mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | ° |
| Head Tube Length | 150 mm | 160 mm | 190 mm | mm |
| Chainstay Length | 498 mm | 498 mm | 498 mm | mm |
| Wheelbase | 1143 mm | 1157 mm | 1169 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 473 mm | 473 mm | 473 mm | mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Molveno Forma belongs to the Stevens E E Molveno model. There are 3 e-bikes that carry this model name. Take a sneak peek at all Stevens E E Molveno e-bikes models from 2022, by clicking here.
Model range prices
Stevens E-Molveno Gent 2022 is the most economical model, with a starting price of 2441$. Stevens E-Molveno Forma 2022 on the other hand costs 2441$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2441$. Comparing this to the average Commuter e-bike price, we see that the price is 5.24% smaller.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 23.2 kg (51.15 lbs), the E-Molveno Forma model is a bit lighter than average. To sum up, it’s 8.62% lighter than the average weight of Commuter e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
E-Molveno Forma components
Fork
The E-Molveno Forma comes factory-installed with the Suntour NCX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the E-Molveno Forma e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Molveno Forma has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
