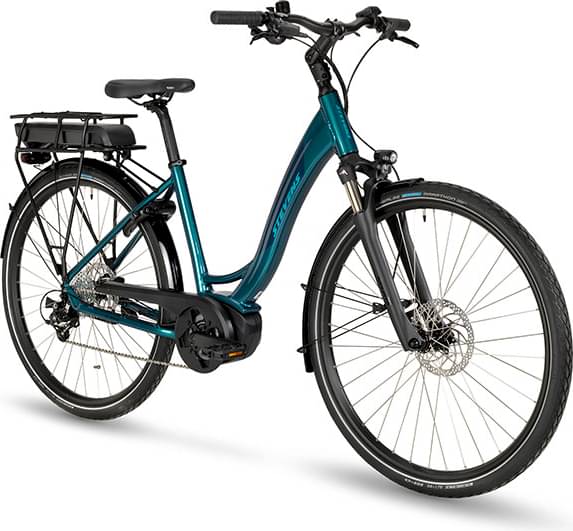

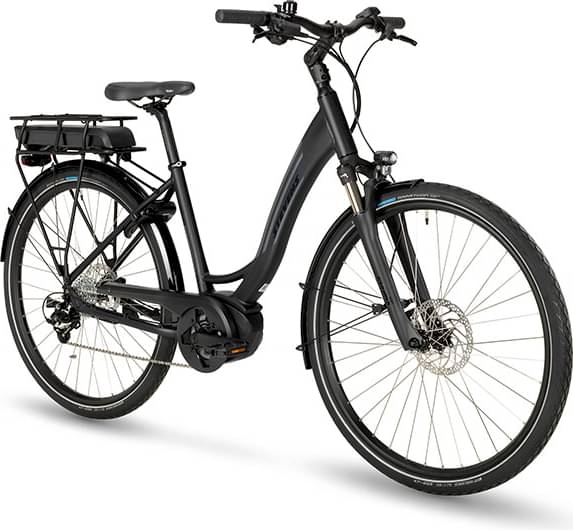

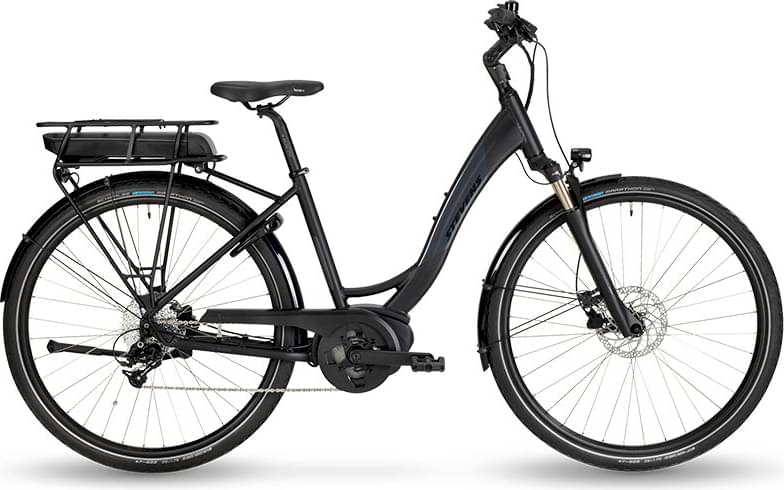

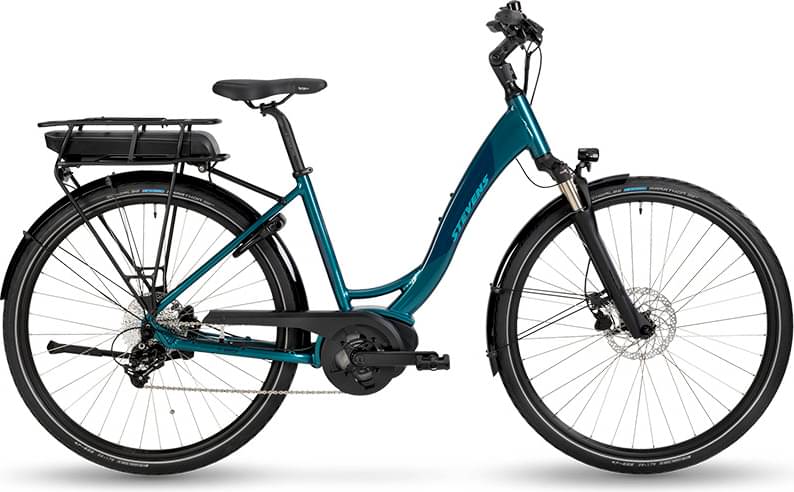

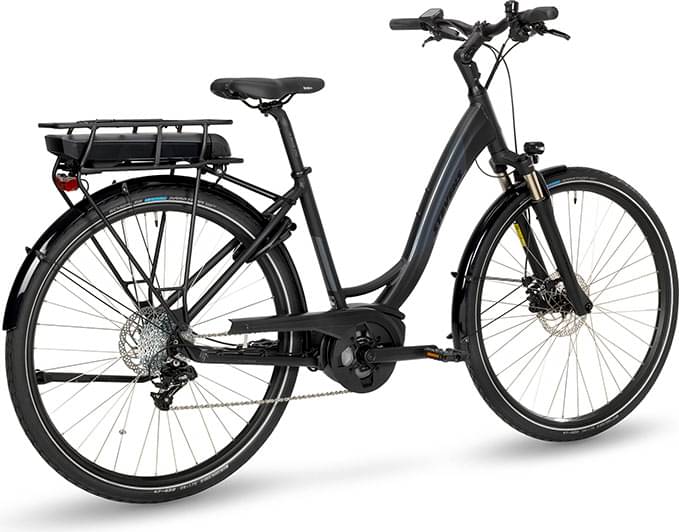

Stevens E-Molveno Forma 2023
2023 E-bike
Estimate price |
2,866$
Weight | 24 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NX 1
-
Groupset SunRace, SunRace M9 -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch PowerPack 400, Capacity: 400 Wh/11.0 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: IS disc, BB: Bosch, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour NX1-Coil LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Sunrace RDM93, 8/9-speed, Total capacity: 40 T
Shift Levers
Sunrace DLM903, 9-speed
Cassette
SunRace CSM90, 9-speed, Combination: 11-13-15-17-20-23-26-30-36 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
KMC X9 NPGY
Pedals
City Reflex
Wheels
Front Hub
Formula CL-51, Axle: QR5x100 mm
Rear Hub
Formula CL-52, Axle: QR5x135 mm
Rims
Oxygen RM-26 Disc, ETRTO: 26 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Tektro HD-T280, Hydraulic disc brake, 2 pistons
Brake Levers
Tektro HD-T280, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Active Line, Continuous rated power: 250 W, Max. torque: 40 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: See BOSCH Range Assistant, No of notches: 4 drive modes with support levels 40-250 % plus walk assistance
Battery
Bosch PowerPack 400, Capacity: 400 Wh/11.0 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm |
|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.58 mm | 1.65 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm |
| Front Center | 653 mm | 666 mm | 678 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 99 mm | 99 mm | 99 mm |
| Stack | 609 mm | 618 mm | 646 mm |
| Reach | 380 mm | 390 mm | 391 mm |
| Top Tube Length | 566 mm | 579 mm | 588 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 163 mm | 163 mm | 163 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 150 mm | 160 mm | 190 mm |
| Chainstay Length | 499 mm | 499 mm | 499 mm |
| Wheelbase | 1144 mm | 1158 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 474 mm | 474 mm | 474 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
E-Molveno Forma completes the Stevens E E Molveno model. Stevens released 6 e-bikes variations of this model so far. You can easily view all of the Stevens E E Molveno e-bikes models from 2023, here.
Model range prices
The most economical model, the Stevens E-Molveno Forma 2023 has a starting price of 2646$. Stevens E-Molveno Gent 2023 on the other hand is the most expensive at 2646$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 2646$. Comparing this to the average Commuter e-bike price, we see that the price is 3% more expensive.
Average weight for Commuter e-bikes
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 24 kg (52.91 lbs), Stevens e-bike is much lighter than average. In other words, this model is 5% lighter than the average Commuter e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
E-Molveno Forma components
Fork
The E-Molveno Forma comes factory-installed with the Suntour NX 1 fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on E-Molveno Forma are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Molveno Forma comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
