Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS E8010, 36V, lithium-ion, 14Ah, with ABUS lock -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 36 Performance E-Bike+, 51mm offset
Rear Shock
FOX FLOAT DPX2 Performance E-Bike, 185mm x 55mm, trunnion mount
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano STEPS E8000, 170mm length
Bottom Bracket
STEPS, press-fit
Chain
Shimano SLX M7100, 12-speed
Chain Guide
e*thirteen upper slider
Pedals
MTB Alu Flatpedal Reflex
Wheels
Front Hub
Shimano SLX, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
Shimano SLX, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
SUNringlé Duroc TR35
Tires
Schwalbe Eddy Current, Evolution, foldable, Addix Soft compound, tubeless easy, 27.5" x 2.6"
Brakes
Brakes
Shimano MT520, 4-piston, Shimano RT64 203mm CENTER LOCK rotors
Brake Levers
Shimano MT501
Cockpit
Stem
Oxygen E-Scorpo, 31.8mm bar clamp, 6° rise, 50mm length (16"/18"/20"), 60mm length (22")
Handlebar
Oxygen E-Scorpo, 760mm width, 9° backsweep, 25mm rise, 31.8mm clamp diameter
Headset
Stevens MTB Taper, ZS44/28.6 upper, ZS55/40 lower
Seat
Saddle
Oxygen Roccia
Seatpost
KS LEV-SI dropper, 100mm/125mm/150mm drop
Motor & Battery
Motor
Shimano STEPS E8000, 250W, 70Nm torque
Battery
Shimano STEPS E8010, 36V, lithium-ion, 14Ah, with ABUS lock
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.454 mm | 1.411 mm | 1.366 mm | 1.341 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Stack | 602 mm | 611 mm | 620 mm | 629 mm |
| Reach | 414 mm | 433 mm | 454 mm | 469 mm |
| Top Tube Length | 577 mm | 600 mm | 622 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1174 mm | 1196 mm | 1219 mm | 1239 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 726 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

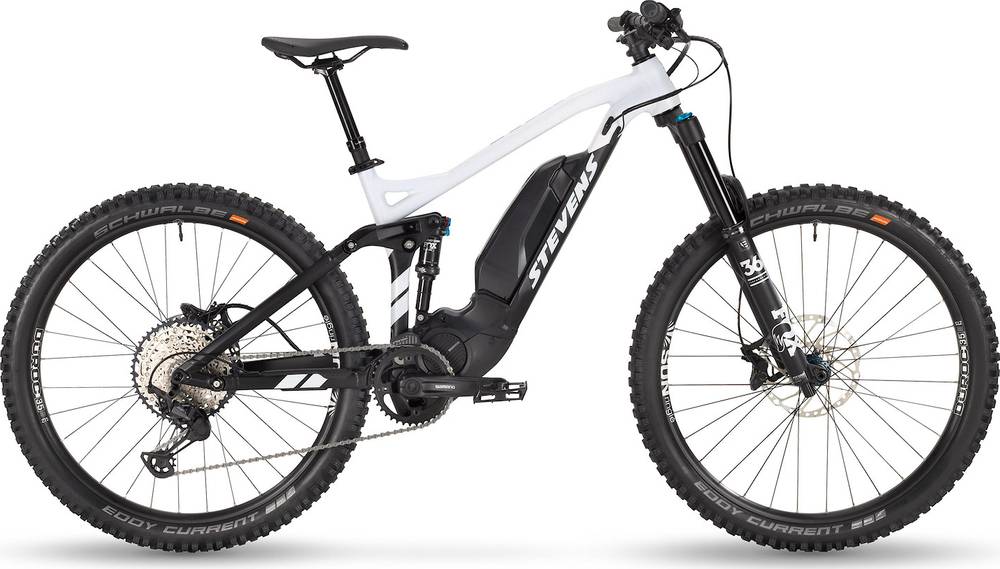

E-Sledge completes the Stevens E E Sledge model. Stevens launched 3 e-bikes of this model so far. Take a sneak peek at all Stevens E E Sledge e-bikes models from 2020, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Enduro e-bikes average weight
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 22.7 kg (50.04 lbs), the E-Sledge model is slightly lighter than average. In short, the average Enduro e-bike weight is 3.17% higher than this one.
Overview of components
Fork
The E-Sledge comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT DPX2 Performance E-Bike, with a travel distance of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on E-Sledge are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Sledge comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Stevens E-Sledge comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
