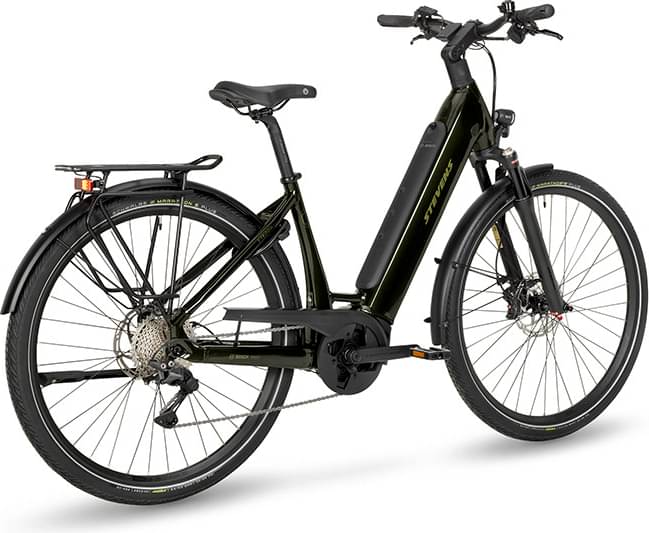

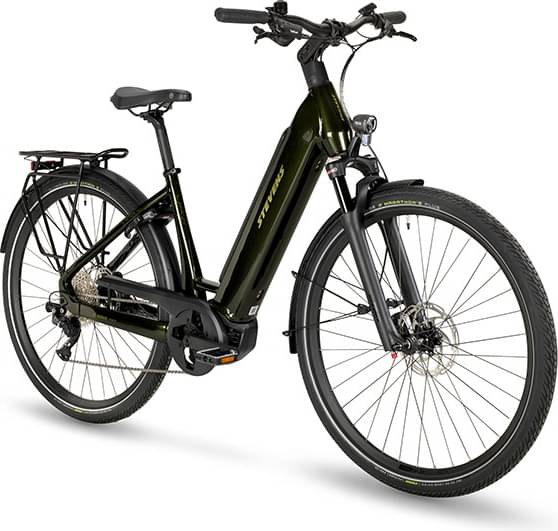

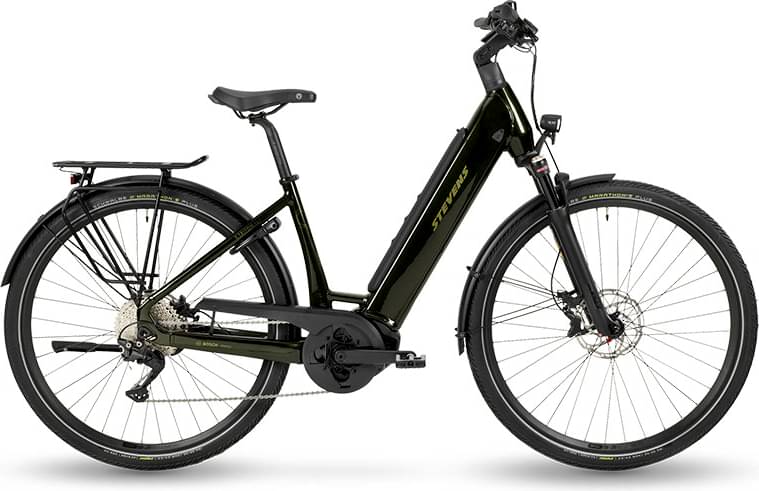

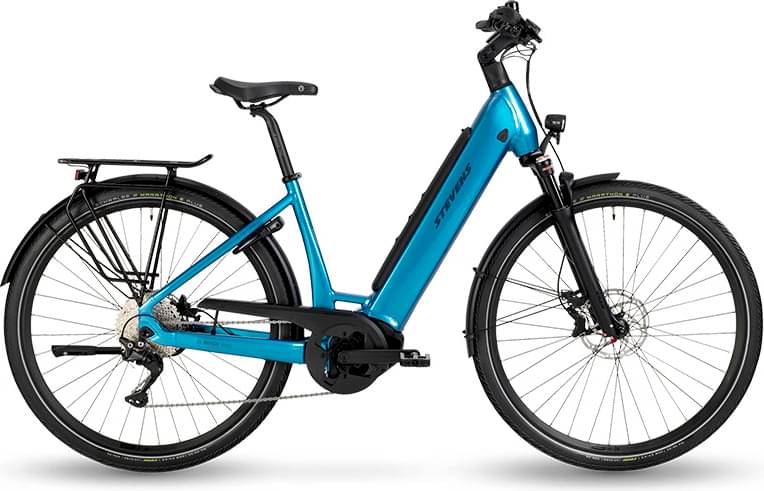

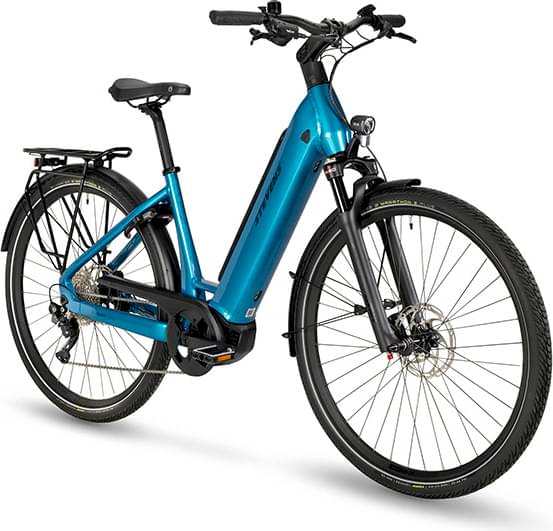

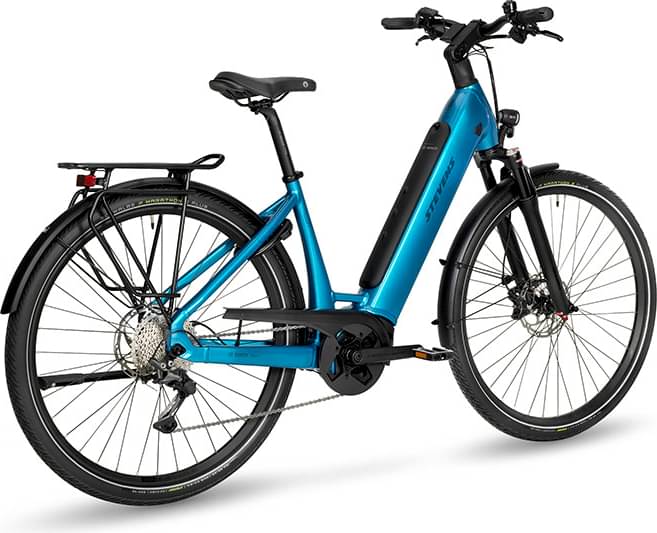

Stevens E-Triton 7.6.1 Forma 2023
2023 E-bike
Estimate price |
5,160$
Weight | 28.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 142 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle, PowerTube box (lockable)
Suspension Fork
SR Suntour Mobie25-Air LOR, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore Shadow+, RD-M5120-SGS, 10/11-speed, Total capacity: 41 T
Shift Levers
Shimano Deore, SL-M5100-R, 11-speed
Cassette
SunRace CSMS8, 11-speed, Combination: 11-13-15-17-19-21-24-28-32-37-42 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-HG601
Pedals
ATB Alu Pro Reflex
Wheels
Front Hub
Shimano Deore XT, HB-M8010, Axle: QR15x100 mm
Rear Hub
Shimano Deore XT, FH-M8010, Axle: QR12x142 mm
Rims
Oxygen RM-26 Disc SL, ETRTO: 26 x 622
Tires
Schwalbe Marathon E-Plus Performance, Tire size: 50-622, ADDIX E compound, SmartGuard, Reflective stripes
Brakes
Brakes
Tektro Volans, HD-T532-F, Hydraulic disc brake, 4 pistons
Brake Levers
Tektro HD-T532, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
Acros Blocklock Taper 1 1/8"-1.8", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/46
Seat
Saddle
Selle Royal ON Female
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G4 Performance Line CX, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerTube 625, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.61 mm | 1.61 mm | 1.61 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 672 mm | 685 mm | 706 mm | 733 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 90 mm | 80 mm | 80 mm | 80 mm |
| Stack | 650 | 676 mm | 695 mm | 723 mm |
| Reach | 396 mm | 419 mm | 433 mm | 449 mm |
| Top Tube Length | 594 mm | 624 mm | 644 mm | 669 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 166 mm | 170 mm | 166 mm | 166 mm |
| Head Tube Angle | 68.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 190 mm | 210 mm | 240 mm |
| Chainstay Length | 491 mm | 491 mm | 491 mm | 491 mm |
| Wheelbase | 1155 mm | 1169 mm | 1190 mm | 1217 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 499 mm | 496 mm | 496 mm | 496 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Triton 7.6.1 Forma is part of the Stevens E E Triton model. Stevens released 27 e-bikes variations of this model so far. Take a sneak peek at all Stevens E E Triton e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Stevens E-Triton Forma 2023 has a starting price of 3917$. Stevens E-Triton 9.7.1 Plus Gent 2023 on the other hand is the most expensive at 5823$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4764$. In conclusion, this e-bike price is 85.44% more expensive than the price of the average Commuter e-bike.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Stevens E-Triton 7.6.1 Forma it’s weighing 28.4 kg (62.61 lbs). At this weight, is considerably heavier than average. To sum up, it’s 12.7% heavier than the average weight of Commuter e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the E-Triton 7.6.1 Forma e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Triton 7.6.1 Forma comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
