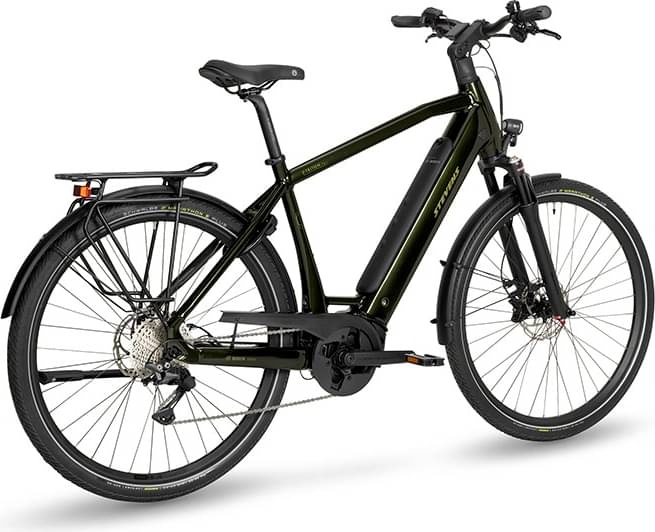

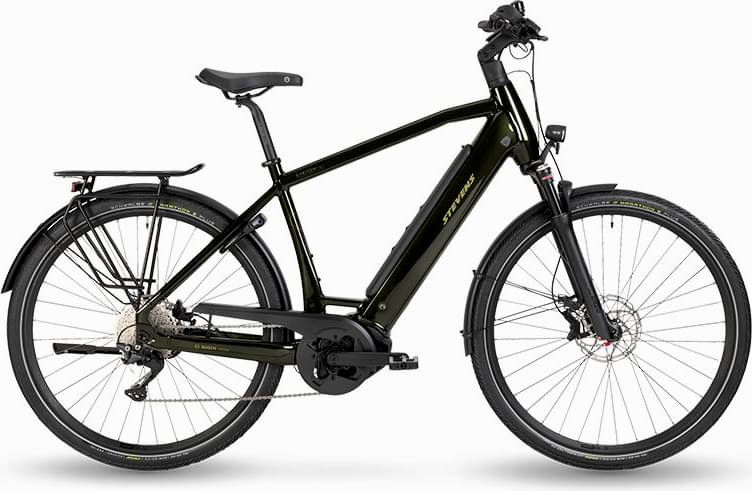

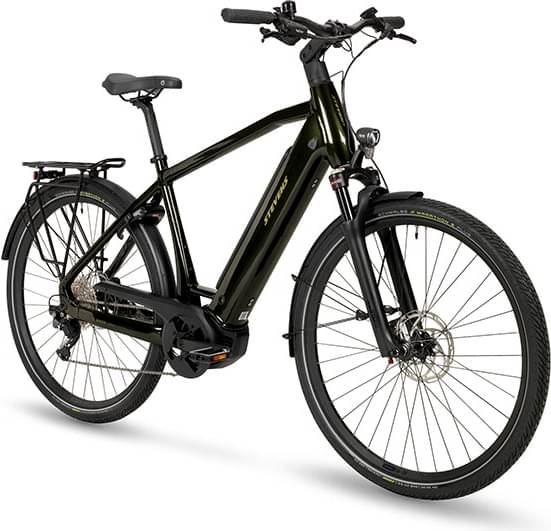

Stevens E-Triton 7.6.1 Gent 2023
2023 E-bike
Estimate price |
5,160$
Weight | 27.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 142 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle, PowerTube box (lockable)
Suspension Fork
SR Suntour Mobie25-Air LOR, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore Shadow+, RD-M5120-SGS, 10/11-speed, Total capacity: 41 T
Shift Levers
Shimano Deore, SL-M5100-R, 11-speed
Cassette
SunRace CSMS8, 11-speed, Combination: 11-13-15-17-19-21-24-28-32-37-42 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-HG601
Pedals
ATB Alu Pro Reflex
Wheels
Front Hub
Shimano Deore XT, HB-M8010, Axle: QR15x100 mm
Rear Hub
Shimano Deore XT, FH-M8010, Axle: QR12x142 mm
Rims
Oxygen RM-26 Disc SL, ETRTO: 26 x 622
Tires
Schwalbe Marathon E-Plus Performance, Tire size: 50-622, ADDIX E compound, SmartGuard, Reflective stripes
Brakes
Brakes
Tektro Volans, HD-T532-F, Hydraulic disc brake, 4 pistons
Brake Levers
Tektro HD-T532, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
Acros Blocklock Taper 1 1/8"-1.8", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/46
Seat
Saddle
Selle Royal ON Male
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G4 Performance Line CX, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerTube 625, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.59 mm | 1.58 mm | 1.57 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 685 mm | 706 mm | 727 mm | 748 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 669 mm | 688 mm | 707 mm | 726 mm |
| Reach | 418 mm | 432 mm | 447 mm | 461 mm |
| Top Tube Length | 622 mm | 642 mm | 662 mm | 682 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 453 mm | 483 mm | 513 mm | 543 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 185 mm | 205 mm | 225 mm | 245 mm |
| Chainstay Length | 489 mm | 489 mm | 489 mm | 489 mm |
| Wheelbase | 1167 mm | 1188 mm | 1209 mm | 1230 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 838 mm | 861 mm | 885 mm | 910 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Triton 7.6.1 Gent is a Stevens E E Triton model. 27 e-bikes variations carry this model name so far. You can easily view all of the Stevens E E Triton e-bikes models from 2023, here.
Model range prices
Stevens E-Triton Forma 2023 is the cheapest e-bike model and costs 3917$. Stevens E-Triton 9.7.1 Plus Gent 2023 is the most expensive one and costs 5823$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Stevens released this model in 2023, its price was 4764$. Comparing the average cost of a Commuter e-bike to this one, you will see that E-Triton 7.6.1 Gent price is 85.44% higher.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 27.9 kg (61.51 lbs), Stevens e-bike is considerably heavier than average. In conclusion, the average Commuter e-bike weighs 10.71% less than E-Triton 7.6.1 Gent.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
E-Triton 7.6.1 Gent components
Fork
Stevens E-Triton 7.6.1 Gent 2023 e-bike is equipped with the Suntour MOBIE fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the E-Triton 7.6.1 Gent model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Triton 7.6.1 Gent has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
