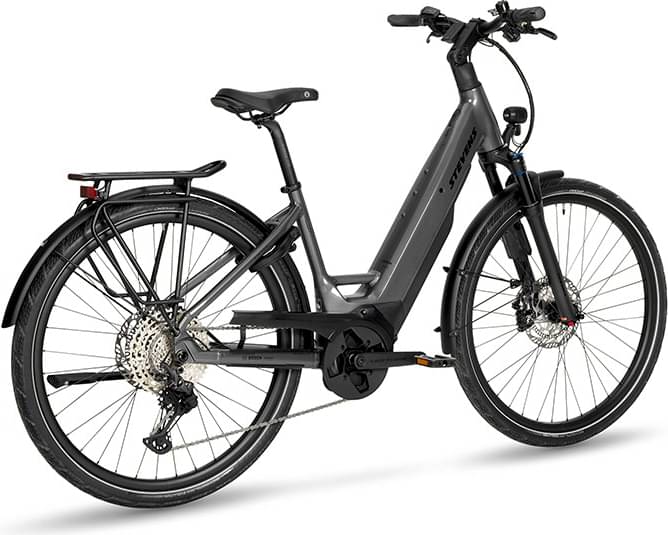

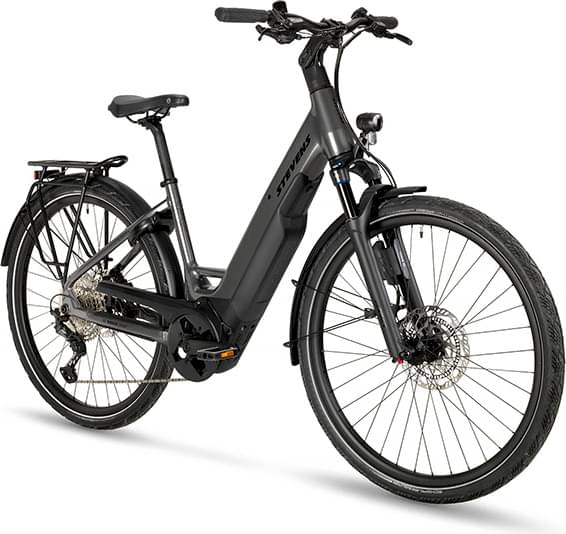

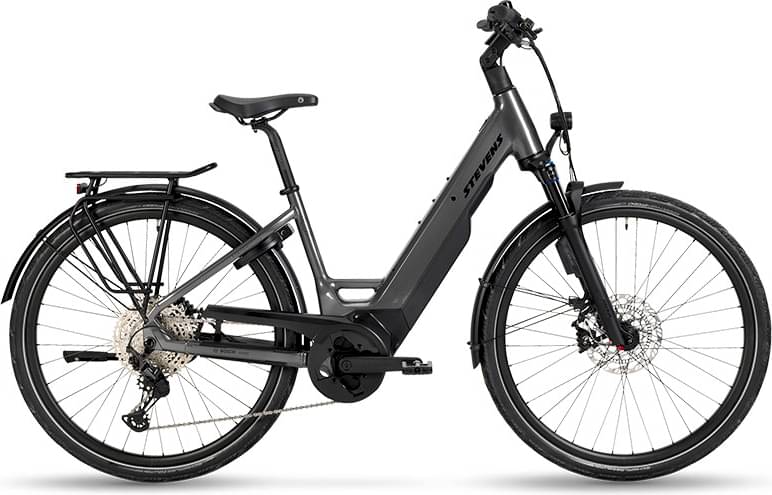

Stevens E-Triton 9.7.1 Plus Forma 2023
2023 E-bike
Estimate price |
6,307$
Weight | 29.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerPack 725, Capacity: 725 Wh/19.2 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 148 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle
Suspension Fork
SR Suntour Mobie34-Air LOR, Travel: 80 mm, Air suspension, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 7", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow+, RD-M8100-SGS, 12-speed, Total capacity: 41 T
Shift Levers
Shimano Deore XT, SL-M8100-R, 12-speed
Cassette
Shimano Deore XT, CS-M8100-12, 12-speed, Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M8100
Pedals
ATB Alu Pro Reflex
Wheels
Front Hub
Strummer M17-3, Axle: QR15x100 mm
Rear Hub
Strummer M42-3, Axle: QR12x148 mm
Rims
Oxygen RM-T25 Disc, ETRTO: 25 x 622
Tires
Schwalbe Marathon Efficiency Evolution, Tire size: 50-622, Foldable, Super Race, ADDIX Race Compound, V-Guard
Brakes
Brakes
Magura MT C ABS, Hydraulic disc brake, 4 pistons, ABS
Brake Levers
Magura CMe5, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
Acros Blocklock Taper 1 1/8"-1 1/2", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/40
Seat
Saddle
Selle Royal ON Female
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G4 Performance Line CX, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerPack 725, Capacity: 725 Wh/19.2 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.65 mm | 1.64 mm | 1.63 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 678 mm | 686 mm | 707 mm | 728 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 90 mm | 80 mm | 80 mm | 80 mm |
| Stack | 653.2 mm | 679.1 mm | 697.9 mm | 716.7 mm |
| Reach | 393.5 mm | 410.6 mm | 424.8 mm | 439.1 mm |
| Top Tube Length | 593.6 mm | 618.6 mm | 638.6 mm | 658.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 211.6 mm | 212 mm | 211.6 mm | 211.6 mm |
| Head Tube Angle | 68.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 165 mm | 185 mm | 205 mm | 225 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1148 mm | 1157 mm | 1178 mm | 1199 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 500 mm | 500 mm | 500 mm | 500 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Triton 9.7.1 Plus Forma is a Stevens E E Triton model. 27 e-bikes variations carry this model name so far. You can easily view all of the Stevens E E Triton e-bikes models from 2023, here.
Model range prices
Stevens E-Triton Forma 2023 is the cheapest e-bike model and costs 3917$. Stevens E-Triton 9.7.1 Plus Gent 2023 is the most expensive one and costs 5823$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Stevens E-Triton 9.7.1 Plus Forma price was 5823$. In conclusion, this e-bike price is 126.66% higher than the price of the average Commuter e-bike.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Stevens E-Triton 9.7.1 Plus Forma it’s weighing 29.7 kg (65.48 lbs). At this weight, is much heavier than average. In other words, this model is 17.86% heavier than the average Commuter e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the E-Triton 9.7.1 Plus Forma e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Triton 9.7.1 Plus Forma has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
