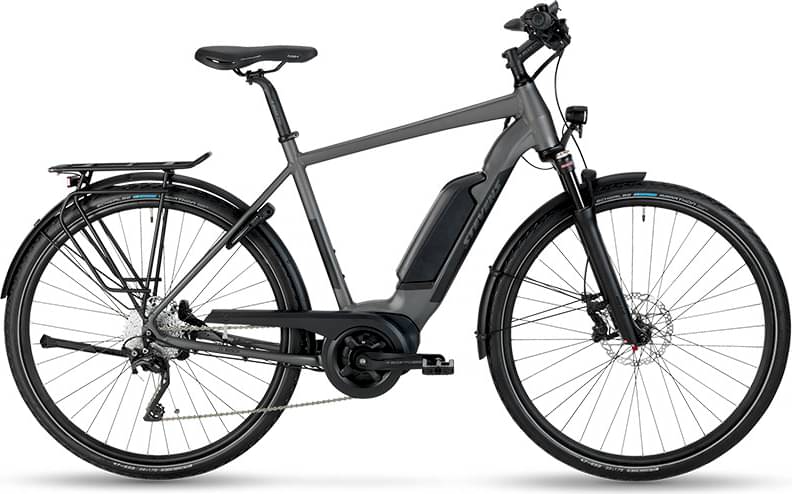

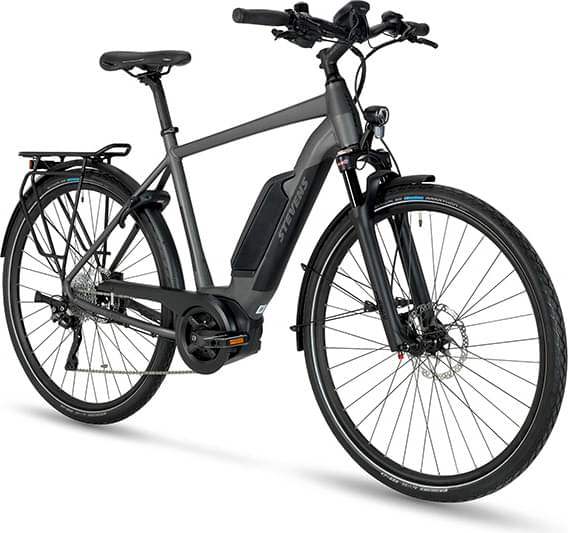

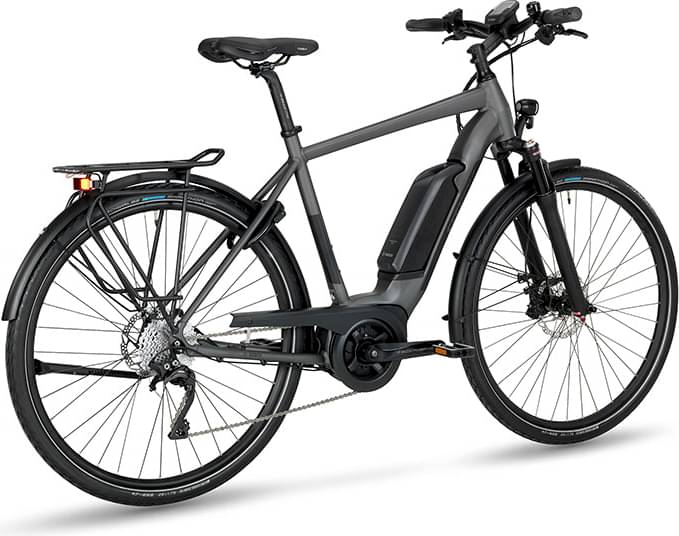

Stevens E-Triton Gent 2023
2023 E-bike
Estimate price |
4,243$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerPack 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Bosch, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour Mobie25-Air LOR, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore XT Trekking Shadow, RD-T8000-SGS, 10-speed, Total capacity: 47 T
Shift Levers
Shimano Deore, SL-M6000, 10-speed
Cassette
Shimano Deore XT, CS-M771, 10-speed, Combination: 11-13-15-17-19-21-24-28-32-36 T
Crank
Oxygen E-Scorpo, BB type: Bosch / BNI, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-E6090-10
Pedals
ATB Alu Pro Reflex
Wheels
Front Hub
Shimano Deore XT, HB-M8010, Axle: QR15x100 mm
Rear Hub
Shimano Deore XT, FH-M8000, 10-speed, Axle: QR10x135 mm
Rims
Oxygen RM-X21 Disc, ETRTO: 21 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-M6000, Hydraulic disc brake
Brake Levers
Shimano BL-T6000
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Selle Royal Nuvola Gent
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Performance Line Cruise, Continuous rated power: 250 W, Max. torque: 65 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 55-300 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerPack 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.58 mm | 1.61 mm | 1.65 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 629 mm | 645 mm | 649 mm | 654 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 82 mm | 76 mm | 72 mm |
| Stack | 607 mm | 626 mm | 649 mm | 670 mm |
| Reach | 386 mm | 395 mm | 402 mm | 407 mm |
| Top Tube Length | 577 mm | 592 mm | 606 mm | 619 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71.5 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 500 mm | 500 mm | 500 mm | 500 mm |
| Wheelbase | 1121 mm | 1137 mm | 1141 mm | 1147 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 812 mm | 836 mm | 863 mm | 889 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Triton Gent is part of the Stevens E E Triton model. 27 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Stevens E-Triton Forma 2023 is the most economical model, with a starting price of 3917$. Stevens E-Triton 9.7.1 Plus Gent 2023 on the other hand costs 5823$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 3917$. If we compare this with the average Commuter e-bike cost we notice that the price is 52.47% higher.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Stevens E-Triton Gent it’s weighing 24.3 kg (53.57 lbs). At this weight, is slightly lighter than average. In conclusion, the average Commuter e-bike weighs 3.7% more than E-Triton Gent.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
E-Triton Gent components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the E-Triton Gent model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Triton Gent comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
