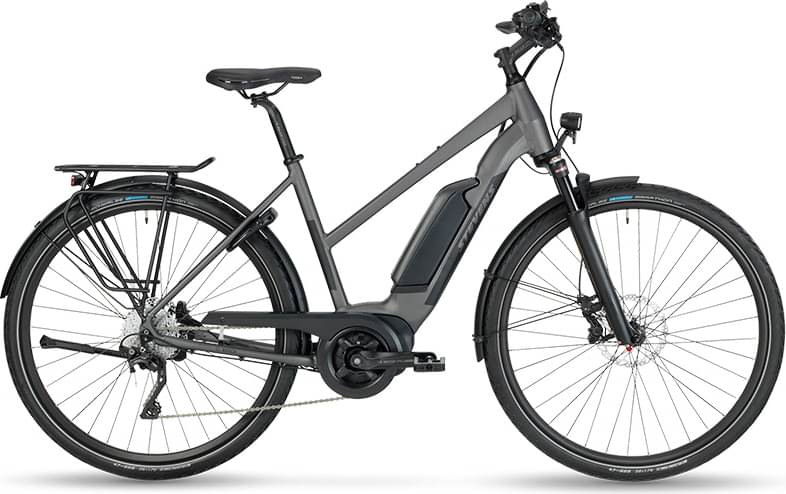

Stevens E-Triton Lady 2022
2022 E-bike
Estimate price |
4,303$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Bosch, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour Mobie25-Air LOR, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Deore, SL-M6000, 10-speed
Cassette
Shimano Deore XT, CS-M771, 10-speed, Combination: 11-13-15-17-19-21-24-28-32-36 T
Crank
Oxygen E-Scorpo, BB type: Bosch / BNI, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-E6090-10
Pedals
ATB Alu Pro Reflex
Wheels
Rims
Oxygen RM-X21 Disc, ETRTO: 21 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-M6000, Hydraulic disc brake
Brake Levers
Shimano BL-T6000
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Performance Line Cruise, Continuous rated power: 250 W, Max. torque: 65 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 55-300 % plus walk assistance, Mileage: See BOSCH Range Assistant
Remote
Bosch Intuvia
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | Measuring mode |
|---|---|---|---|---|
| Stack Reach Ratio | 1.604 mm | 1.653 mm | 1.686 mm | mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | mm |
| Front Center | 636 mm | 647 mm | 657 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | mm |
| Trail | 82 mm | 83 mm | 81 mm | mm |
| Stack | 619 mm | 643 mm | 661 mm | mm |
| Reach | 386 mm | 389 mm | 392 mm | mm |
| Top Tube Length | 575 mm | 585 mm | 595 mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | ° |
| Seat Tube Length | 303 mm | 298 mm | 265 mm | mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | ° |
| Head Tube Length | 150 mm | 175 mm | 195 mm | mm |
| Chainstay Length | 498 mm | 498 mm | 498 mm | mm |
| Wheelbase | 1126 mm | 1137 mm | 1148 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 710 mm | 714 mm | 696 mm | mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Triton Lady completes the Stevens E E Triton model. There are 11 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Stevens E-Triton Forma 2022 is the most economical model, with a starting price of 3928$. Stevens E-Triton 45 Gent 2022 on the other hand costs 5520$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 3928$. Comparing this to the average Commuter e-bike price, we see that the price is 52.9% higher.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Stevens E-Triton Lady it’s weighing 24.3 kg (53.57 lbs). At this weight, is slightly lighter than average. In conclusion, the average Commuter e-bike weighs 3.7% more than E-Triton Lady.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
E-Triton Lady components
Fork
The E-Triton Lady comes factory-installed with the Suntour MOBIE fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on E-Triton Lady are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Stevens E-Triton Lady has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
