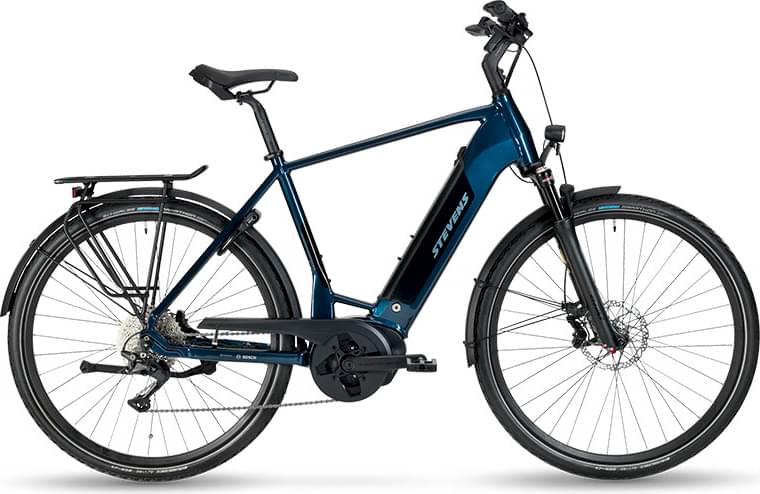

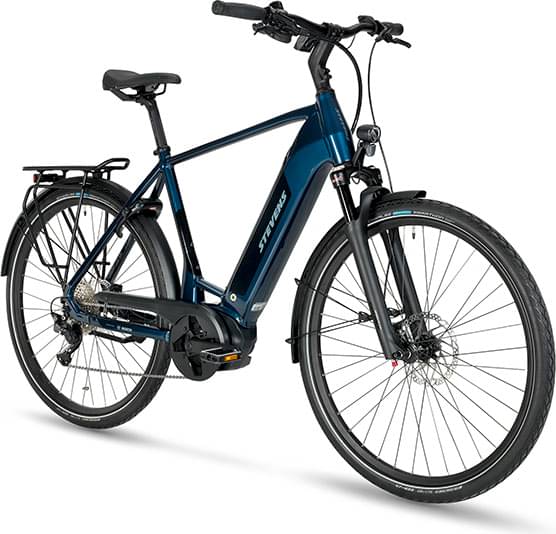

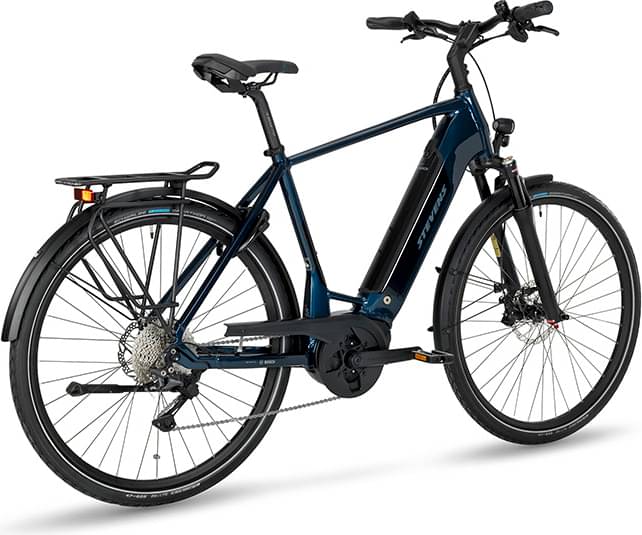

Stevens E-Triton PT5 Gent 2023
2023 E-bike
Estimate price |
4,472$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerPack 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle, PowerTube box (lockable)
Suspension Fork
SR Suntour Mobie25-Air LOR, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore Shadow+, RD-M5130-GS, 10-speed, Total capacity: 32 T
Shift Levers
Shimano Deore, SL-M5130, 10-speed, Linkglide
Cassette
Shimano CS-LG600-10, 10-speed, Combination: 11-13-15-17-20-23-26-30-36-43 T, LINKGLIDE
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-LG500, LINKGLIDE
Pedals
ATB Alu Pro Reflex
Wheels
Front Hub
Shimano Deore XT, HB-M8010, Axle: QR15x100 mm
Rear Hub
Shimano Deore XT, FH-M8000, 10-speed, Axle: QR10x135 mm
Rims
Oxygen RM-X21 Disc, ETRTO: 21 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-M6000, Hydraulic disc brake
Brake Levers
Shimano BL-T6000
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 35°
Handlebar
Oxygen E-Scorpo, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/39.8
Seat
Saddle
Selle Royal E-Zone
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Performance Line Cruise, Continuous rated power: 250 W, Max. torque: 65 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 55-300 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerPack 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.656 mm | 1.644 mm | 1.638 mm | 1.653 mm | 1.668 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 646 mm | 647 mm | 655 mm | 654 mm | 656 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 86 mm | 80 mm | 82 mm | 75 mm | 72 mm |
| Stack | 636 mm | 638 mm | 647 mm | 661 mm | 674 mm |
| Reach | 384 mm | 388 mm | 395 mm | 400 mm | 404 mm |
| Top Tube Length | 591 mm | 597 mm | 605 mm | 615 mm | 623 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 451 mm | 491 mm | 520 mm | 546 mm | 579 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 71 ° | 71.5 ° |
| Head Tube Length | 170 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 496 mm | 496 mm | 496 mm | 496 mm | 496 mm |
| Wheelbase | 1134 mm | 1135 mm | 1143 mm | 1142 mm | 1144 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 816 mm | 838 mm | 857 mm | 879 mm | 901 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
E-Triton PT5 Gent belongs to the Stevens E E Triton model. Stevens launched 27 e-bikes of this model so far. Take a sneak peek at all Stevens E E Triton e-bikes models from 2023, by clicking here.
Model range prices
Stevens E-Triton Forma 2023 is the most economical model, with a starting price of 3917$. Stevens E-Triton 9.7.1 Plus Gent 2023 on the other hand costs 5823$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 4129$. Comparing this to the average Commuter e-bike price, we see that the price is 60.72% more expensive.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 25.9 kg (57.1 lbs), the E-Triton PT5 Gent model is slightly heavier than average. To sum up, it’s 2.78% heavier than the average weight of Commuter e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
E-Triton PT5 Gent components
Fork
The E-Triton PT5 Gent comes factory-installed with the Suntour MOBIE fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The E-Triton PT5 Gent 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Triton PT5 Gent comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
