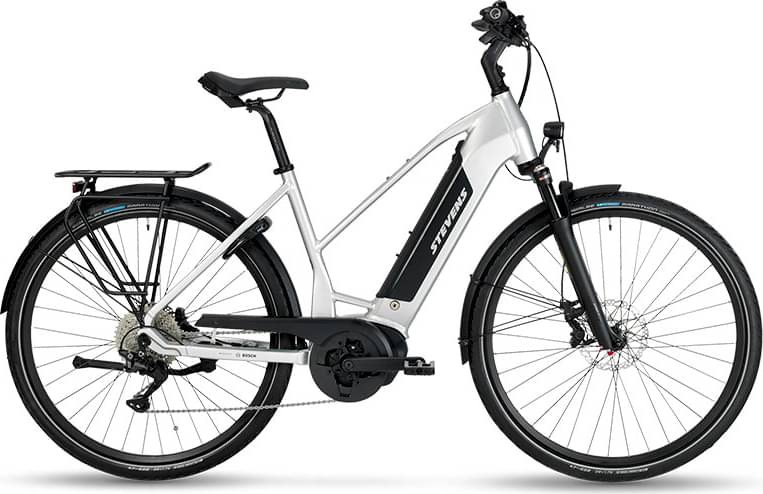

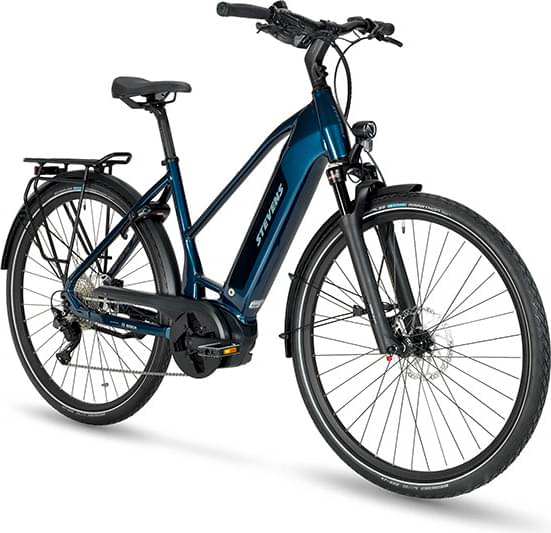

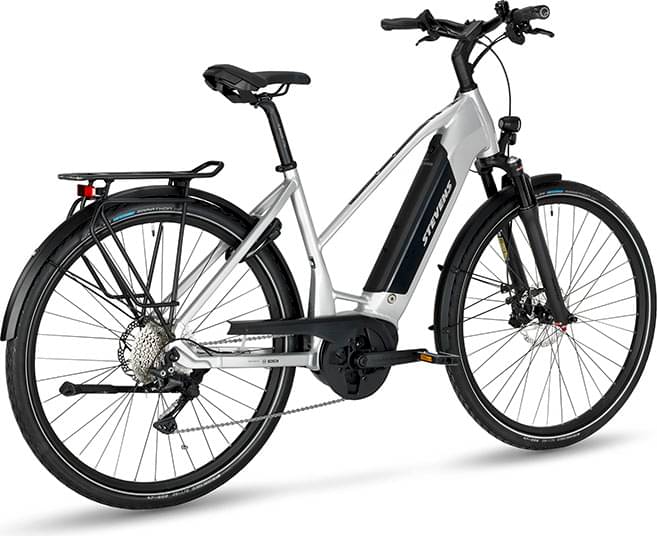

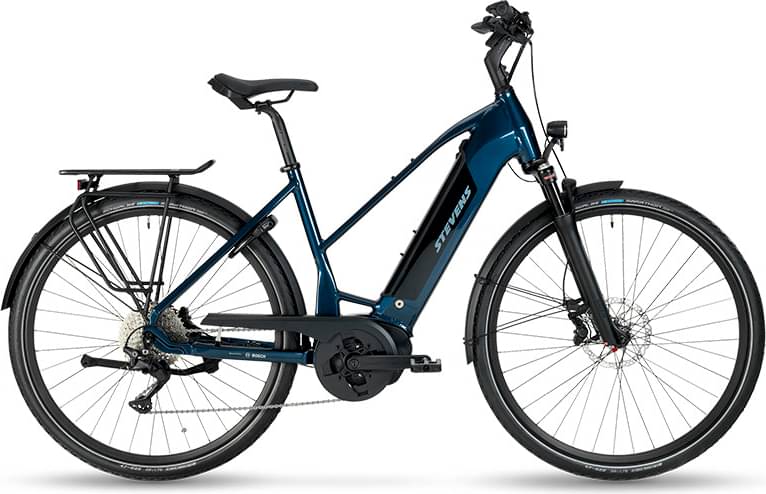

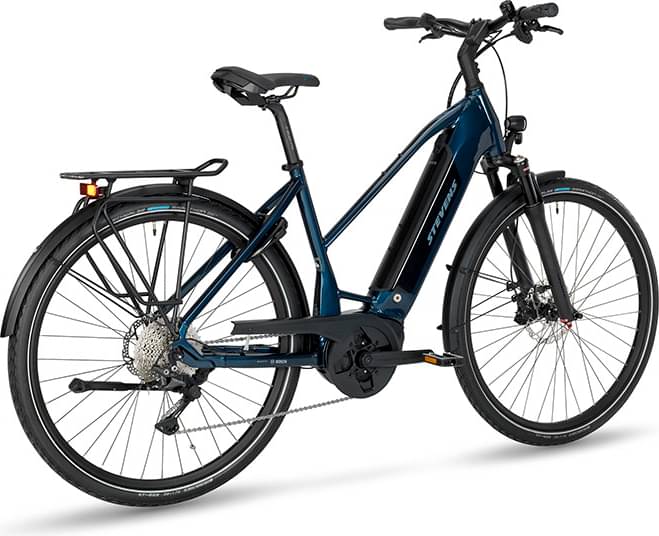

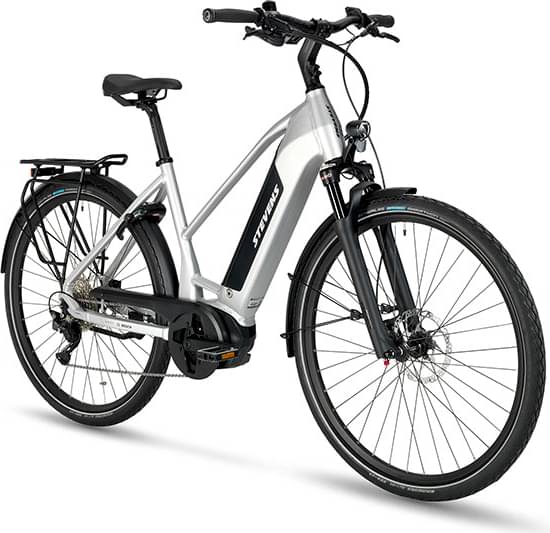

Stevens E-Triton PT5 Lady 2023
2023 E-bike
Estimate price |
4,472$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerPack 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle, PowerTube box (lockable)
Suspension Fork
SR Suntour Mobie25-Air LOR, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore Shadow+, RD-M5130-GS, 10-speed, Total capacity: 32 T
Shift Levers
Shimano Deore, SL-M5130, 10-speed, Linkglide
Cassette
Shimano CS-LG600-10, 10-speed, Combination: 11-13-15-17-20-23-26-30-36-43 T, LINKGLIDE
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-LG500, LINKGLIDE
Pedals
ATB Alu Pro Reflex
Wheels
Front Hub
Shimano Deore XT, HB-M8010, Axle: QR15x100 mm
Rear Hub
Shimano Deore XT, FH-M8000, 10-speed, Axle: QR10x135 mm
Rims
Oxygen RM-X21 Disc, ETRTO: 21 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-M6000, Hydraulic disc brake
Brake Levers
Shimano BL-T6000
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 35°
Handlebar
Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/39.8
Seat
Saddle
Selle Royal E-Zone
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Performance Line Cruise, Continuous rated power: 250 W, Max. torque: 65 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 55-300 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerPack 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.67 mm | 1.64 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 635 mm | 642 mm | 653 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 83 mm | 81 mm |
| Stack | 650 | 648 mm | 652 mm |
| Reach | 381 mm | 389 mm | 397 mm |
| Top Tube Length | 578 mm | 585 mm | 595 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 303 mm | 303 mm | 303 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 175 mm | 175 mm | 180 mm |
| Chainstay Length | 501 mm | 501 mm | 501 mm |
| Wheelbase | 1128 mm | 1135 mm | 1146 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 743 mm | 738 mm | 735 mm |
| Wheels | 700 | 700 | 700 |
About this model
E-Triton PT5 Lady completes the Stevens E E Triton model. 27 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Stevens E-Triton Forma 2023 is the cheapest e-bike model and costs 3917$. Stevens E-Triton 9.7.1 Plus Gent 2023 is the most expensive one and costs 5823$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4129$. Comparing this to the average Commuter e-bike price, we see that the price is 60.72% higher.
Commuter e-bikes average weight
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Stevens E-Triton PT5 Lady it’s weighing 25.9 kg (57.1 lbs). At this weight, is slightly heavier than average. To sum up, it’s 2.78% heavier than the average weight of Commuter e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Stevens E-Triton PT5 Lady 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Stevens E-Triton PT5 Lady is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
