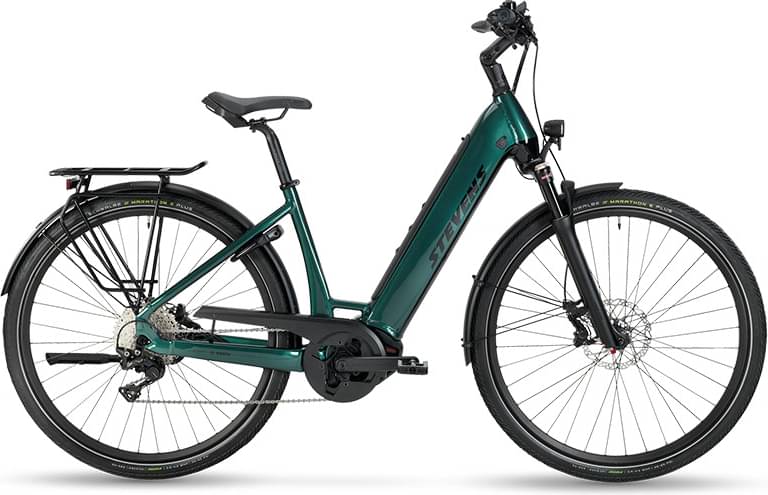

Stevens E-Triton PT6 Forma 2022
2022 E-bike
Estimate price |
4,885$
Weight | 27.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 142 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle, PowerTube box (lockable)
Suspension Fork
SR Suntour Mobie25-Air LOR, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Deore, SL-M5100-R, 11-speed
Cassette
Shimano Deore, CS-M5100, 11-speed, Combination: 11-13-15-17-19-21-24-28-32-37-42 T
Crank
Oxygen E-Scorpo, BB type: Bosch / BNI, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-HG601
Pedals
ATB Alu Pro Reflex
Wheels
Rims
Oxygen RM-X21 Disc, ETRTO: 21 x 622
Tires
Schwalbe Marathon E-Plus Performance, Tire size: 50-622, Addix E compound, SmartGuard, Reflective stripes
Brakes
Brakes
Shimano BR-M6000, Hydraulic disc brake
Brake Levers
Shimano BL-T6000
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Selle Royal E-Zone
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G4 Performance Line CX Cruise, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Remote
Bosch Intuvia
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm | 60cm | Measuring mode |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.648 mm | 1.619 mm | 1.611 mm | 1.616 mm | mm |
| Bottom Bracket Height | 298 mm | 298 mm | 298 mm | 298 mm | mm |
| Front Center | 671 mm | 685 mm | 706 mm | 733 mm | mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | mm |
| Trail | 90 mm | 80 mm | 80 mm | 80 mm | mm |
| Stack | 646 mm | 672 mm | 691 mm | 719 mm | mm |
| Reach | 392 mm | 415 mm | 429 mm | 445 mm | mm |
| Top Tube Length | 590 mm | 620 mm | 640 mm | 665 mm | mm |
| Seat Tube Angle | 72.3 ° | 72.3 ° | 72.3 ° | 73 ° | ° |
| Seat Tube Length | 182 mm | 182 mm | 182 mm | 160 mm | mm |
| Head Tube Angle | 68.5 ° | 70 ° | 70 ° | 70 ° | ° |
| Head Tube Length | 170 mm | 190 mm | 210 mm | 240 mm | mm |
| Chainstay Length | 497 mm | 497 mm | 497 mm | 487 mm | mm |
| Wheelbase | 1161 mm | 1175 mm | 1196 mm | 1213 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 490 mm | 487 mm | 487 mm | 474 mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
E-Triton PT6 Forma is part of the Stevens E E Triton model. Stevens released 11 e-bikes variations of this model so far. You can easily view all of the Stevens E E Triton e-bikes models from 2022, here.
Model range prices
Stevens E-Triton Forma 2022 is the cheapest e-bike model and costs 3928$. Stevens E-Triton 45 Gent 2022 is the most expensive one and costs 5520$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4458$. Comparing the average cost of a Commuter e-bike to this one, you will see that E-Triton PT6 Forma price is 73.53% more expensive.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
E-Triton PT6 Forma weighs 27.4 kg (60.41 lbs) and is a bit heavier than the average. In short, the average Commuter e-bike weight is 8.73% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
E-Triton PT6 Forma components
Fork
The E-Triton PT6 Forma comes factory-installed with the Suntour MOBIE fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the E-Triton PT6 Forma model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Triton PT6 Forma has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
