Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 34 Performance Step-Cast, remote lockout, 44mm offset (27.5"), 51mm offset (29")
Rear Shock
FOX FLOAT DPS Performance Elite, remote lockout, 190mm x 51mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8120, 12-speed, SGS cage, SHADOW RD+
Front Derailleur
Shimano Deore XT M8020, side-swing
Shift Levers
Shimano Deore XT M8100, 12-speed, I-SPEC EV clamp
Cassette
Shimano Deore XT M8100, 12-speed, 10-45 tooth
Crank
Shimano Deore XT M8120, HOLLOWTECH II, 170mm length (16"), 175mm length (18"/20"/22")
Bottom Bracket
Shimano, BB92 press-fit
Chain
Shimano Deore XT M8100, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700 Spline Two wheelset, CENTER LOCK rotor mounts, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
DT Swiss M1700 Spline Two wheelset, CENTER LOCK rotor mounts, 110x15mm Boost front, 148x12mm Boost rear
Rims
DT Swiss M1700 Spline Two wheelset, 27.5" (16"), 29" (18"/20"/22")
Spokes
DT Swiss M1700 Spline Two wheelset
Tires
Schwalbe Rocket Ron, Evolution, foldable, Addix Speed compound, LiteSkin protection, 2.25"
Brakes
Brakes
Shimano Deore XT M8100, Shimano RT70 180mm CENTER LOCK rotors
Brake Levers
Shimano Deore XT M8100
Cockpit
Stem
Syntace Force 109, 31.8mm bar clamp, 6° rise, Length: 60mm (16"), 80mm (18"/20"), 90mm (22")
Handlebar
Syntace Vector Carbon, 760mm width, 12° backsweep, 10mm rise, 31.8mm clamp diameter
Headset
Stevens MTB Taper, ZS44/28.6 upper, ZS55/40 lower
Seat
Saddle
Oxygen Roccia
Seatpost
KS LEV-SI dropper, 100mm/125mm/150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.38 mm | 1.35 mm | 1.35 mm |
| Bottom Bracket Height | 331 mm | 333 mm | 333 mm | 333 mm |
| Stack | 565 mm | 592 mm | 601 mm | 620 mm |
| Reach | 418 mm | 429 mm | 446 mm | 459 mm |
| Top Tube Length | 565 mm | 581 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 455 mm | 500 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 426 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1112 mm | 1148 mm | 1169 mm | 1190 mm |
| Bottom Bracket Drop | 24 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 753 mm | 754 mm | 763 mm | 762 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

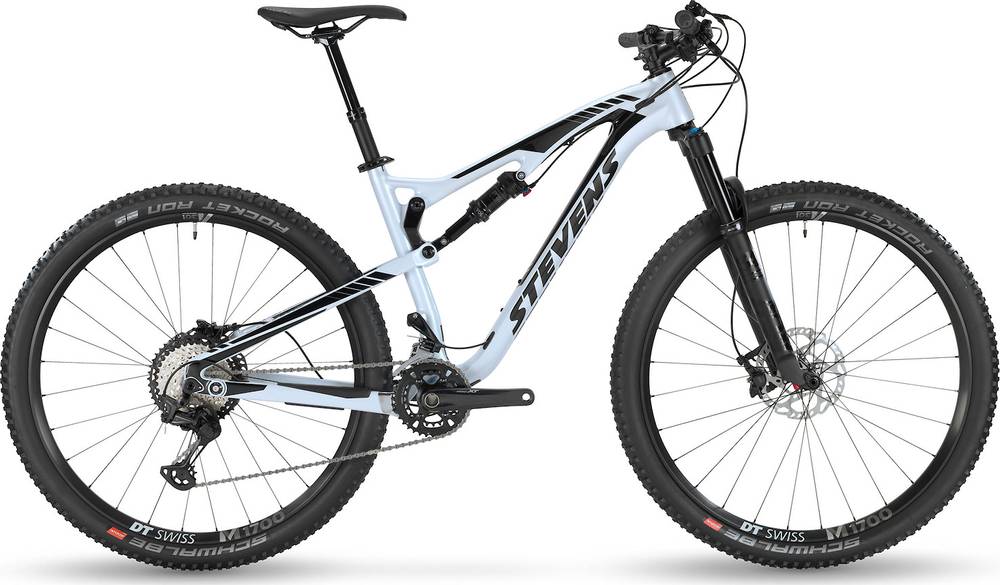

Jura Carbon ES is a Stevens Jura model. 4 bikes variations carry this model name so far. You can easily view all of the Stevens Jura bikes models from 2020, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 12.1 kg (26.68 lbs), the Jura Carbon ES model is a bit lighter than average. To sum up, it’s 7.27% lighter than the average weight of Trail bikes.
Overview of components
Fork
The Jura Carbon ES comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT DPS Performance Elite, with a travel distance of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Jura Carbon ES 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Jura Carbon ES comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
The Stevens model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
