Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 34 Factory Step-Cast, remote lockout, Kashima coating, 44mm offset (27.5"), 51mm offset (29")
Rear Shock
FOX FLOAT DPS Factory, remote lockout, Kashima coating, 190mm x 51mm
Drivetrain
Rear Derailleur
Shimano XTR M9100, 12-speed, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano XTR M9100, 12-speed, I-SPEC EV clamp
Cassette
Shimano XTR M9100, 12-speed, 10-51 tooth
Crank
Race Face Next SL, 170mm length (16"), 175mm length (18"/20"/22")
Bottom Bracket
Race Face, BB92 press-fit
Chain
Shimano XTR M9100, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss XR1501 Spline One wheelset, CENTER LOCK rotor mounts, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
DT Swiss XR1501 Spline One wheelset, CENTER LOCK rotor mounts, 110x15mm Boost front, 148x12mm Boost rear
Rims
DT Swiss XR1501 Spline One wheelset, 27.5" (16"), 29" (18"/20"/22")
Spokes
DT Swiss XR1501 Spline One wheelset
Tires
Schwalbe Rocket Ron, Evolution, foldable, Addix Speed compound, LiteSkin protection, 2.25"
Brakes
Brakes
Shimano XTR M9100, Shimano MT900M 180mm CENTER LOCK rotors
Brake Levers
Shimano XTR M9100
Cockpit
Stem
Syntace Force 109, 31.8mm bar clamp, 6° rise, Length: 60mm (16"), 80mm (18"/20"), 90mm (22")
Handlebar
Syntace Vector Carbon, 760mm width, 12° backsweep, 10mm rise, 31.8mm clamp diameter
Headset
Stevens AH Taper, ZS44/28.6 upper, ZS55/40 lower
Seat
Saddle
Oxygen Roccia
Seatpost
FOX Transfer Factory dropper, Kashima coating, 100mm/125mm/150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.38 mm | 1.35 mm | 1.35 mm |
| Bottom Bracket Height | 331 mm | 333 mm | 333 mm | 333 mm |
| Stack | 565 mm | 592 mm | 601 mm | 620 mm |
| Reach | 418 mm | 429 mm | 446 mm | 459 mm |
| Top Tube Length | 565 mm | 581 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 455 mm | 500 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 426 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1112 mm | 1148 mm | 1169 mm | 1190 mm |
| Bottom Bracket Drop | 24 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 753 mm | 754 mm | 763 mm | 762 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

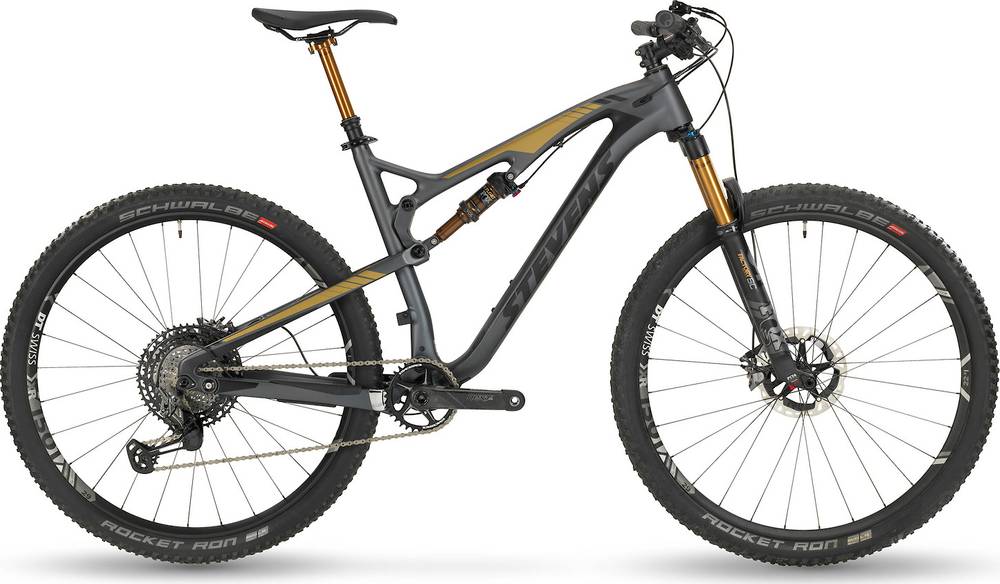

Jura Carbon SL is part of the Stevens Jura model. There are 4 bikes that carry this model name. Take a sneak peek at all Stevens Jura bikes models from 2020, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Jura Carbon SL weighs 10.9 kg (24.03 lbs) and is much lighter than the average. In other words, this model is 19.08% lighter than the average Trail bike.
Jura Carbon SL components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Stevens Jura Carbon SL bike has the FOX FLOAT DPS Factory model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Jura Carbon SL are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Stevens Jura Carbon SL has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Jura Carbon SL. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
