Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Performance Step-Cast, remote lockout, 44mm offset
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SGS cage, SHADOW RD+
Front Derailleur
N/A
Shift Levers
Shimano Deore XT M8100, 12-speed, I-SPEC EV clamp
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT M8100, HOLLOWTECH II, 170mm length (16"), 175mm length (18"/20"/22")
Bottom Bracket
Shimano, BB92 press-fit
Chain
Shimano Deore XT M8100, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss X1900 Spline wheelset, CENTER LOCK rotor mounts, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
DT Swiss X1900 Spline wheelset, CENTER LOCK rotor mounts, 110x15mm Boost front, 148x12mm Boost rear
Rims
DT Swiss X1900 Spline wheelset
Spokes
DT Swiss X1900 Spline wheelset
Tires
Front: Schwalbe Racing Ray, foldable, Addix Speed compound, SnakeSkin protection, 29" x 2.25", Rear: Schwalbe Racing Ralph, Evolution, foldable, Addix Speed compound, SnakeSkin protection, 29" x 2.25"
Brakes
Brakes
Shimano Deore XT M8100, Shimano MT800 CENTER LOCK rotors (180mm front, 160mm rear)
Brake Levers
Shimano Deore XT M8100
Cockpit
Stem
Oxygen Scorpo MTB, 31.8mm bar clamp, 5° rise, Length: 70mm (16"), 80mm (18"), 90mm (20"), 100mm (22")
Handlebar
Oxygen Scorpo MTB, 700mm width, 7° backsweep, 11mm rise, 31.8mm clamp diameter
Headset
Stevens MTB Taper, IS42/28.6 upper, IS52/40 lower
Seat
Saddle
Oxygen Roccia
Seatpost
Oxygen Scorpo MTB, 380mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.42 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm | 306 mm |
| Stack | 597 mm | 602 mm | 616 mm | 625 mm |
| Reach | 401 mm | 424 mm | 445 mm | 468 mm |
| Top Tube Length | 569 mm | 594 mm | 619 mm | 644 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 396 mm | 420 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1071 mm | 1096 mm | 1123 mm | 1148 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 730 mm | 762 mm | 791 mm | 822 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

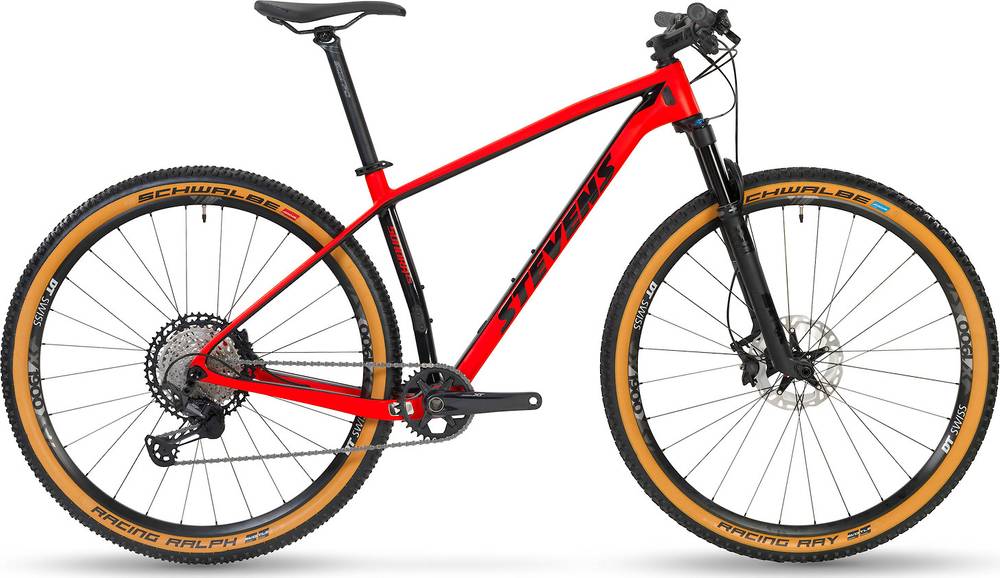

Sonora ES is a Stevens Sonora model. Stevens launched 9 bikes of this model so far. You can easily view all of the Stevens Sonora bikes models from 2020, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, Sonora ES has a weight of 10.5 kg (23.15 lbs). In conclusion, the average Crosscountry bike weighs 18.1% more than Sonora ES.
Overview of components
Fork
This bike has the Fox Performance Float 32 fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Sonora ES are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Stevens Sonora ES has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
