Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Shimano -
Suspension Rigid -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO STEPS, BT-E8014, 36V, 418Wh, frame mount -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
180cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 Double Butted, Sport eMTB Geometry, Smooth Welding, SHIMANO STEPS ready, Semi integrated battery, Inner Cable Routing, IDK dropout
Suspension Fork
eRX 630 28", Alloy/hi-ten rigid, Ahead 1-1/8", QR Type
Drivetrain
Shift Levers
SHIMANO ALTUS SL-M315-8R RapidFire Plus, 8-speed
Cassette
SHIMANO CS-HG31-8, 11-34T
Crank
SHIMANO FC-E5010, 38T
Bottom Bracket
STEPS, press-fit
Chain
KMC X8
Pedals
Marwi SP-610
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
Rims
Stars J20S, 32H
Spokes
Sapim Galvanized Black
Tires
Schwalbe G-One Bite, 28x2.00", reflective tape
Brakes
Brakes
SHIMANO BL-MT200/BR-MT200, hydraulic disc brake
Cockpit
Stem
ONE1 Sport TDS-D507, Alloy, 31.8mm, -15°
Handlebar
ONE1 Alloy, MTB AL-325BT, 6° upsweep, 9° backsweep, 25mm rise, 660mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal Vivo HRN
Seatpost
ONE1 Sport Alloy, SP C207
Motor & Battery
Motor
SHIMANO STEPS E5000, 36V, 250W, 40Nm
Battery
SHIMANO STEPS, BT-E8014, 36V, 418Wh, frame mount
Charger
SHIMANO EC-E6002 1.8A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | XL |
|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.56 mm |
| Bottom Bracket Height | 271 mm | 271 mm |
| Front Center | 660 mm | 682 mm |
| Rake | 45 mm | 45 mm |
| Trail | 74 mm | 74 mm |
| Stack | 628 mm | 647 mm |
| Reach | 401 mm | 416 mm |
| Top Tube Length | 588 mm | 608 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 483 mm | 546 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm |
| Chainstay Length | 448 mm | 448 mm |
| Wheelbase | 1100 mm | 1122 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 180 cm | 189 cm |
| Rider Max Height | 191 cm | 200 cm |

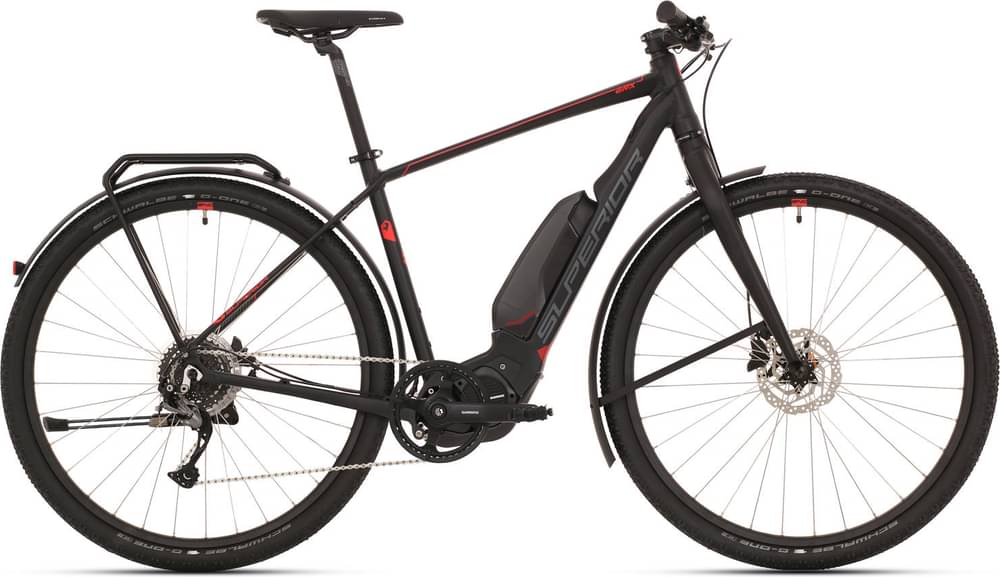

About this model
eRX 630 TOURING is a Superior E Erx model. Superior launched 8 e-bikes of this model so far. You can easily view all of the Superior E Erx e-bikes models from 2020, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Touring e-bikes
According to our math, the average price for a trustworthy Touring e-bike is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
eRX 630 TOURING has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the eRX 630 TOURING e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Superior eRX 630 TOURING is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 2 sizes. They vary from 180 cm – 200 cm (5.91 ft – 6.56 ft). In short, you can easily find one that suits you.
