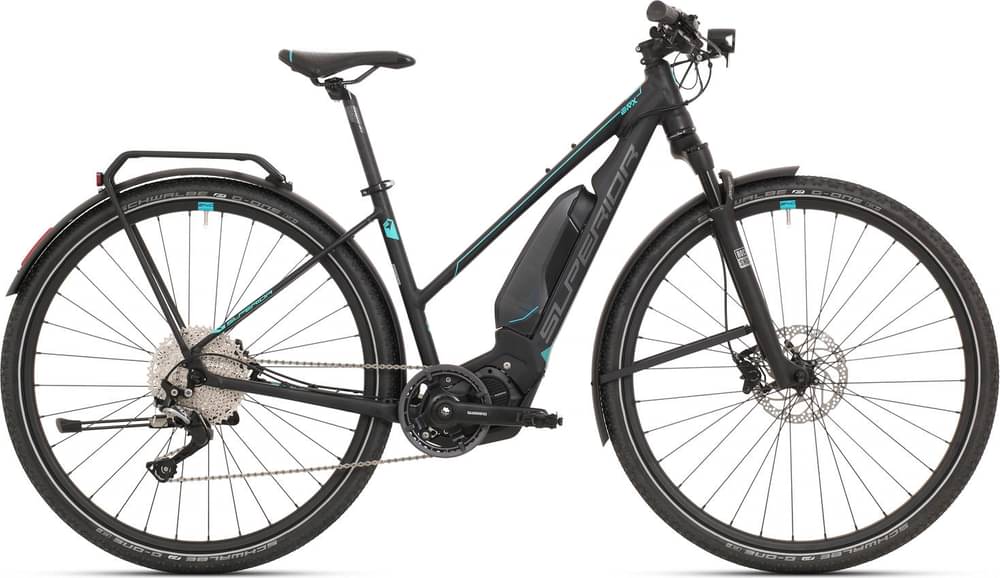

Superior eRX 690 LADY TOURING 2020
2020 E-bike
Weight | 22.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset SLX, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery SHIMANO STEPS, BT-E8010, 36V, 504 Wh, frame mount -
Drivetrain 1 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
160cm - 171cm
LG
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 Double Butted, Sport eMTB Geometry, Smooth Welding, SHIMANO STEPS ready, Semi integrated battery, Inner Cable Routing, IDK dropout
Suspension Fork
RockShox Paragon Gold RL, 1-1/8", Air, 65mm travel
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7000 Shadow Plus
Shift Levers
SHIMANO SLX SL-M7000-R RapidFire Plus, 11-speed
Cassette
SunRace CS-MS8-11, 11-46T
Crank
SHIMANO FC-E6100, 38T
Bottom Bracket
STEPS, press-fit
Chain
KMC e11T
Pedals
Marwi SP-610
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
Rims
Stars J20S, 32H
Spokes
Sapim Leader, Stainless Black
Tires
Schwalbe G-One Bite, 28x2.00", reflective tape
Cockpit
Stem
ONE1 Sport TDS-D507 Alloy, 31.8mm, +15°
Handlebar
ONE1 Alloy, MTB AL-325BT, 6° upsweep, 9° backsweep, 25mm rise, 660mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
ONE1 Sport Alloy, SP C207
Motor & Battery
Motor
SHIMANO STEPS E7000, 36V, 250W,60Nm
Battery
SHIMANO STEPS, BT-E8010, 36V, 504 Wh, frame mount
Charger
SHIMANO EC-E6002 1.8A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.59 mm |
| Bottom Bracket Height | 271 mm | 271 mm |
| Front Center | 644 mm | 655 mm |
| Rake | 45 mm | 47 mm |
| Trail | 74 mm | 72 mm |
| Stack | 614 mm | 633 mm |
| Reach | 397 mm | 399 mm |
| Top Tube Length | 578 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 457 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 140 mm |
| Chainstay Length | 453 mm | 453 mm |
| Wheelbase | 1089 mm | 1100 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
Model Overview
eRX 690 LADY TOURING is part of the Superior E Erx model. There are 8 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Touring e-bikes
If you want to purchase a solid Touring e-bike, it is important to know that the average cost is 2429$. However, you could also get a good Touring e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Touring e-bikes
On a deeper look, we notice that the average weight of a Touring e-bike is 25.55 kg (56.33 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 22.2 kg (48.94 lbs), Superior e-bike is much lighter than average. In other words, this model is 15.09% lighter than the average Touring e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
eRX 690 LADY TOURING components
Fork
This e-bike has the RockShox Paragon Gold RL fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the eRX 690 LADY TOURING model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eRX 690 LADY TOURING comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
eRX 690 LADY TOURING comes in 2 sizes, that range from 160 cm – 180 cm (5.25 ft – 5.91 ft). In conclusion, you won’t have a problem finding one that suits you.
