Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery SHIMANO STEPS, BT-E8014, 36V, 418Wh, frame mount -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 180cm
LG
190cm - 200cm
XL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 Double Butted, Sport eMTB Geometry, SHIMANO STEPS ready, Semi integrated battery, Inner Cable Routing, IDK dropout, City set assembly ready
Suspension Fork
SR Suntour XCM HLO, 1-1/8", Coil, QR Type, Hydraulic Lockout, 100mm travel
Drivetrain
Rear Derailleur
SHIMANO ACERA RD-M360-L
Shift Levers
SHIMANO ALTUS SL-M315-8R RapidFire Plus, 8-speed
Cassette
SHIMANO CS-HG31-8, 11-34T
Crank
SHIMANO FC-E6100, 38T
Bottom Bracket
STEPS, press-fit
Chain
KMC e9S
Pedals
Marwi SP-610
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
Rims
Stars J20S, 32H
Spokes
Sapim Galvanized Black
Tires
Impac RidgePac, 29x2.25"
Brakes
Brakes
SHIMANO BL-MT200/BR-MT200, hydraulic disc brake
Cockpit
Stem
ONE1 Sport MAS-D61248 Alloy, 31.8mm, -8°
Handlebar
ONE1 Alloy, MTB AL-325BT, 6° upsweep, 9° backsweep, 25mm rise, 720mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal Vivo HRN
Seatpost
ONE1 Sport Alloy, SP C207, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS E6100, 36V, 250W, 60Nm
Battery
SHIMANO STEPS, BT-E8014, 36V, 418Wh, frame mount
Charger
SHIMANO EC-E6002 1.8A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.62 mm | 1.54 mm | 1.54 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 642 mm | 662 mm | 682 mm | 702 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 94 mm | 94 mm | 94 mm | 94 mm |
| Stack | 640 mm | 640 mm | 640 mm | 659 mm |
| Reach | 375 mm | 395 mm | 415 mm | 429 mm |
| Top Tube Length | 576 mm | 596 mm | 616 mm | 636 mm |
| Seat Tube Angle | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1106 mm | 1126 mm | 1146 mm | 1167 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 190 cm | 195 cm |
| Rider Max Height | 171 cm | 180 cm | 200 cm | 205 cm |
About this model

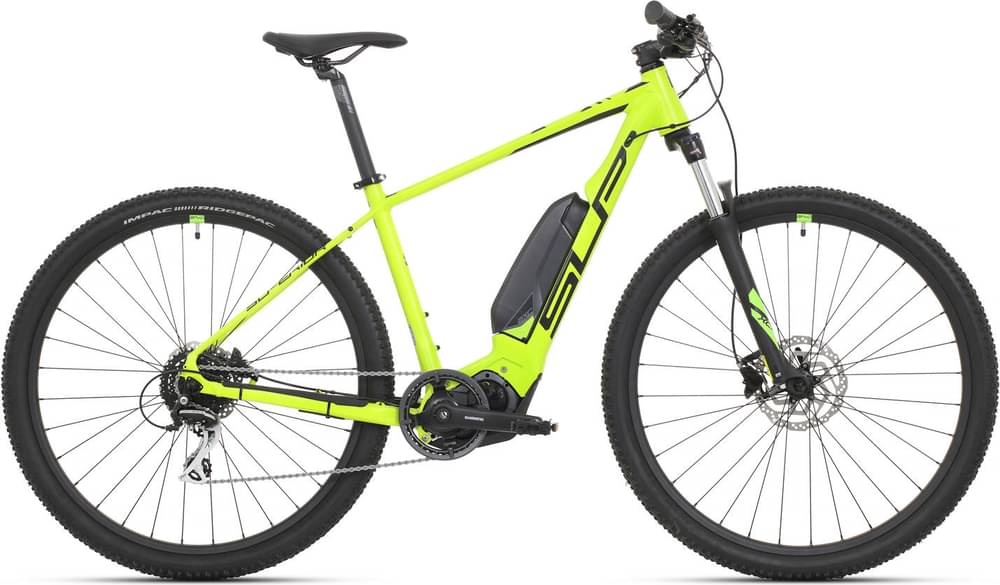

eXC 829 belongs to the Superior E Exc model. Superior released 14 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
eXC 829 weighs 21.8 kg (48.06 lbs) and is a bit lighter than the average. To sum up, it’s 6.47% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
eXC 829 components
Fork
The fork installed on this bike is the SunTour XCM HLO model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The eXC 829 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Superior eXC 829 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
eXC 829 comes in 4 sizes, that range from 160 cm – 205 cm (5.25 ft – 6.73 ft). In conclusion, it won’t take much to find one that’s right for you.
