Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON, 36V, 504 Wh, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
160cm - 170cm
LG
180cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite MTB Trail SUE03-EP8, Advanced e-MTB Geometry, Travel 130 mm, SHIMANO STEPS ready, Prepared to 630Wh integrated battery, 3D alloy one piece link, Alloy swingarm, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox 35 Silver TK, Tapered, SoloAir, 15x110mm axle, 140mm travel
Rear Shock
Bushing body for RockShox, RockShox Deluxe Select Plus, remote Lockout, external rebound, 2 position compression (Open/Lock), size 210x50mm
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100 Shadow Plus
Shift Levers
SHIMANO DEORE SL-M6100-R RapidFire Plus, 12-speed
Cassette
SHIMANO CS-M6100-12, 10-51T
Crank
SHIMANO FC-E8000, 34T
Bottom Bracket
STEPS, press-fit
Chain
CHAIN SHIMANO CN-M6100
Wheels
Front Hub
SHIMANO HB-MT410-B, 32H, CENTER LOCK, 15x110mm THRU Type AXLE
Rear Hub
SHIMANO FH-MT410, 32H, CENTER LOCK, 12x148mm THRU Type AXLE
Rims
Stars J30D, 32H
Spokes
Sapim Leader, Stainless Black
Tires
Schwalbe Nobby Nic Evo Super Trail, 29x2.60", ADDIX Speedgrip
Brakes
Brakes
TEKTRO HD-EU830, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-661 Alloy, 31.8mm, 0°
Handlebar
ONE1 Alloy, MTB AL-725, 3° upsweep, 7° backsweep, 20mm rise, 780mm, 31.8mm
Grips
ONE1 VLG-1907D2, ONE1 VLG-1962-11D2, Lock-On
Seat
Saddle
fizik Taiga
Seatpost
ONE1 Alloy, MT171, dropper post, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS EP800, 36V, 250W, 85Nm, Drive unit left cover for DUEP800
Battery
DARFON, 36V, 504 Wh, integrated
Remote
SHIMANO SC-EM800, Clamp band
Charger
DARFON 2A Smart Plus charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1 mm | 1.29 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 736 mm | 764 mm | 775 mm | 792 mm |
| Rake | 40 mm | 43 mm | 100 mm | 42 mm |
| Trail | 123 mm | 120 mm | 57 mm | 121 mm |
| Stack | 583 mm | 592 mm | 459 mm | 611 mm |
| Reach | 431 mm | 452 mm | 459 mm | 472 mm |
| Top Tube Length | 592 mm | 618 mm | 628 mm | 643 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 482 mm | 482 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1161 mm | 1189 mm | 1200 mm | 1217 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 180 cm | 189 cm |
| Rider Max Height | 170 cm | 170 cm | 191 cm | 200 cm |
About this model

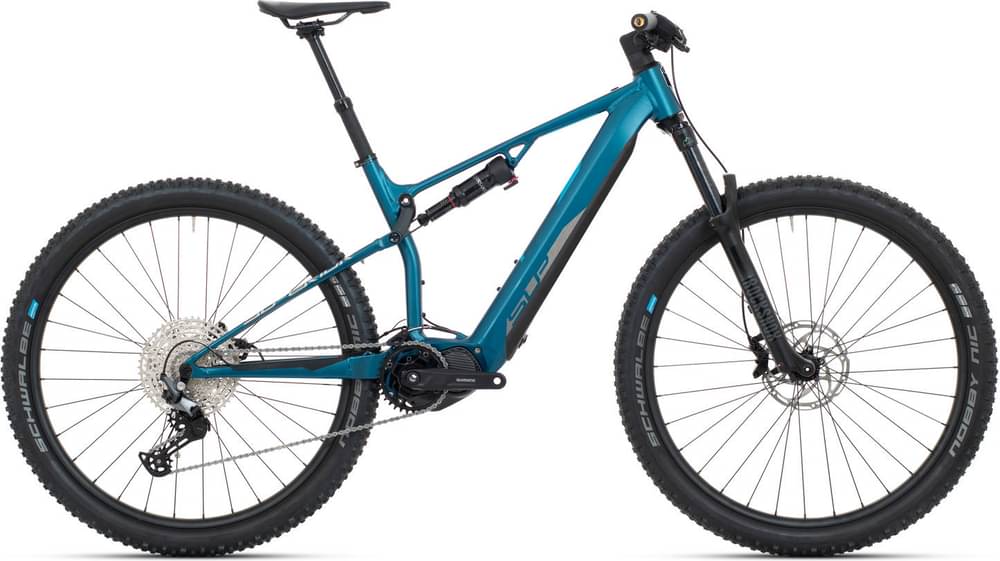

eXF 9019 is a Superior E Exf model. 16 e-bikes variations carry this model name so far. Take a sneak peek at all Superior E Exf e-bikes models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, eXF 9019 has a weight of 22.8 kg (50.27 lbs). To sum up, it’s 3.95% lighter than the average weight of Trail e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
eXF 9019 components
Fork
The RockShox 35 Silver is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is Bushing body for RockShox, with a travel distance of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on eXF 9019 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 200 cm (5.25 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the eXF 9019. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
